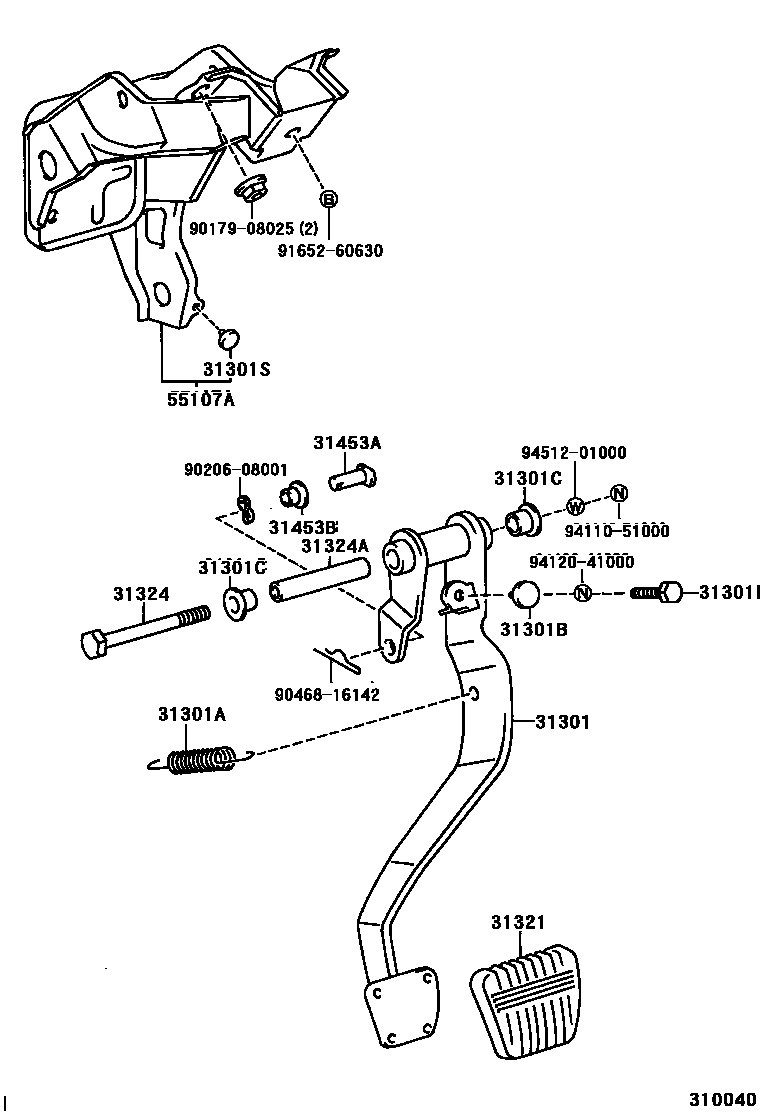

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20520iST205..RHD199402-199606

main31301-20530iST202..RHD199311

sub31301-20520

main31301-20540iAT200..RHD199505

sub31301-20520

main31301-20550iST20#..LHD199311

main31301-20560iAT200..LHD199311

sub31301-20550

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12070iAT200..LHD199311

main90506-14062iAT200..RHD199505

main90905-06011iST205..RHD199402-199606

main90949-03017iST205..LHD199402-199606

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iAT200..LHD199311-199508

sub90541-06036

main90541-06036iST205..LHD199402-199508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT200,ST20#199311

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT200,ST20#199311

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iAT200,ST20#..RHD199311

31321PAD, CLUTCH PEDAL

main31321-14020iAT200,ST20#199311

31324SHAFT, CLUTCH PEDAL

main90101-10015iAT200,ST20#..LHD199311

main91121-51085iAT200,ST20#..RHD199311

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAT200,ST20#..LHD199311

main90387-10082iAT200,ST20#..RHD199311

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iAT200,ST20#199311

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAT200,ST20#199311

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20400iST20#..RHD199311

main55107-20410iST20#..LHD199311

main55107-20420iAT200..RHD199505

sub55107-20400

main55107-20430iAT200..LHD199311

9017908025

main90179-08025

9020608001

main90206-08001

9046816142

main90468-16142

9165260630

main91652-60630

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

19 parts on this diagram · 10 diagrams in section
