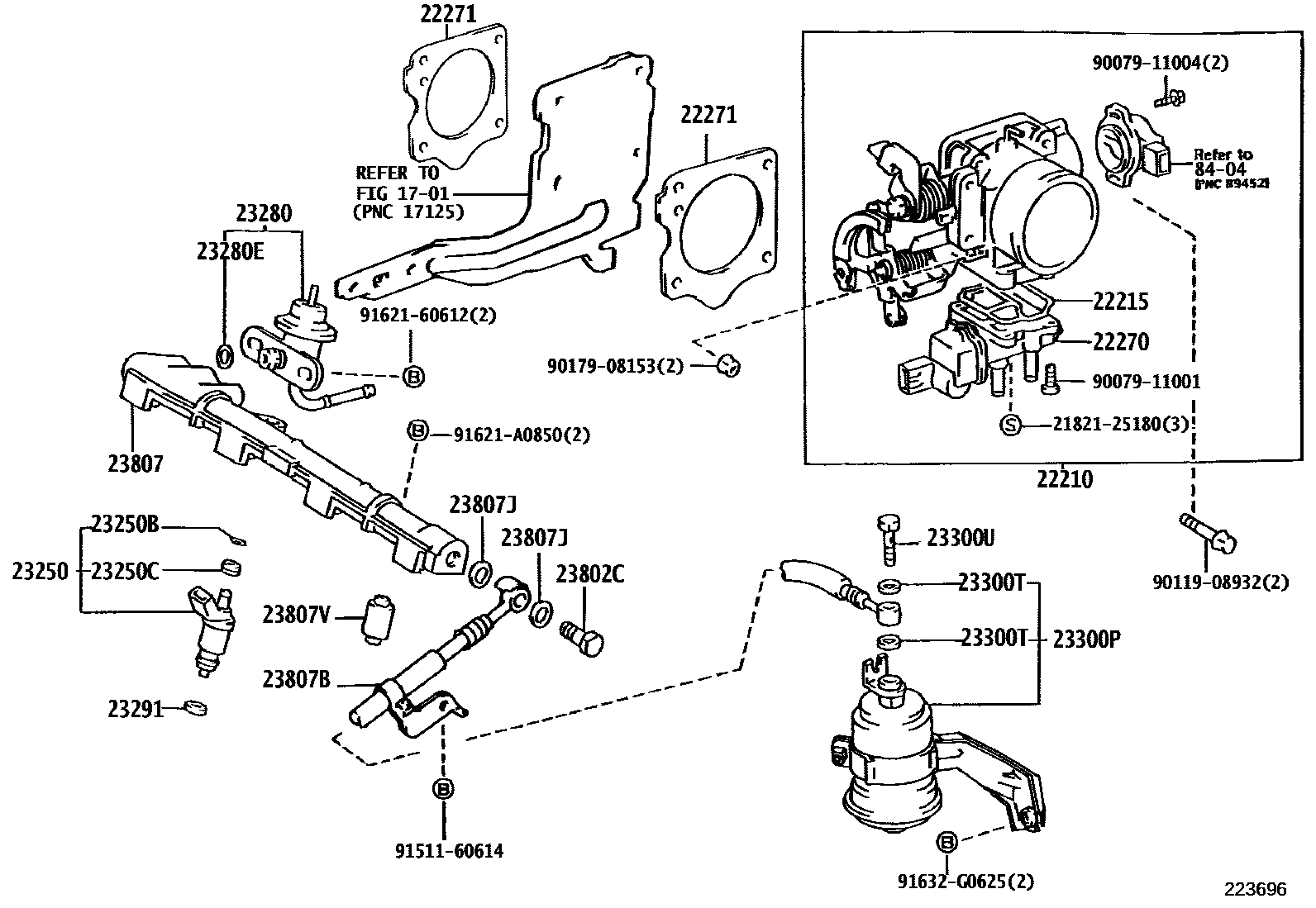

FUEL INJECTION SYSTEM
1701
22210BODY ASSY, THROTTLE
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
NO.2
NO.1
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911001
main90079-11001
9007911004
main90079-11004
9011908932
main90119-08932
9017908153
main90179-08153
9151160614
main91511-60614
9162160612
main91621-60612
91621A0850
main91621-A0850
91632G0625
main91632-G0625
29 parts on this diagram · 5 diagrams in section
