ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 80A

27020ALTERNATOR ASSY

main27060-15080i7AFE..AT200199311

12V 70A

main27060-74470i3SGE..ST202199311

12V 70A

main27060-74490i3SGTE..ST205199402-199606

12V 80A

27039COVER, ALTERNATOR REAR END

main27039-16380i7AFE..AT200199701

main27039-73020i7AFE..AT200199311-199701

sub27039-16380

main27039-74380i3SGE..ST202199311-199701

NO.1

main27039-74381i3SGE..ST202199701

NO.1

main27039-74390i3SGTE..ST205199508-199606

main27039-74390i3SGTE..ST205199402-199508

NO.1

main27039-74440i3SG#..ST20#199311-199508

NO.2

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i7AFE..AT200199311

main27310-74430i3SGE..ST202199311

main27310-74440i3SGTE..ST205199402-199606

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i7AFE,3SGE..AT200,ST202199311

main90099-10192i3SGTE..ST205199402-199606

27312PLATE, RETAINER

main27312-42010i3SGTE..ST205199402-199606

main27312-70200i7AFE,3SGE..AT200,ST202199311

27330ROTOR ASSY, ALTERNATOR

main27330-64570i7AFE,3SGE..AT200,ST202199701

main27330-72101i7AFE,3SGE..AT200,ST202199311-199701

main27330-76030i3SGTE..ST205199402-199606

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i7AFE,3SG#..AT200,ST20#199311

27351ACOLLAR, ADJUSTING ALTERNATOR

main27351-74120i3SGTE..ST205199311-199606

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16380i7AFE..AT200199701

main27357-63020i7AFE..AT200199311-199701

main27357-70081i3SGE..ST202199311-199701

main27357-74260i3SGTE..ST205199402-199606

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i7AFE..AT200199311-199601

sub27359-15171

sub27384-16380

main27359-15171i7AFE..AT200199601-199701

main27359-16380i7AFE..AT200199701

main27359-74120i3SGTE..ST205199402-199606

main27359-74130i3SGE..ST202199311-199601

sub27359-74131

sub27384-16380

main27359-74131i3SGE..ST202199601-199701

main27359-74132i3SGE..ST202199701

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i7AFE,3SGE..AT200,ST202199311

main27370-75060i3SGTE..ST205199402-199606

27371BRUSH, ALTERNATOR

main27371-70300i7AFE,3SGE..AT200,ST202199311

27372SPRING, ALTERNATOR BRUSH

main27372-63020i7AFE,3SGE..AT200,ST202199311

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-16180i7AFE..AT200199311

main27411-16211i3SGE..ST202199311

main27411-74050i3SGTE..ST205199402-199606

27443COVER, ALTERNATOR BEARING

main27443-63020i7AFE,3SG#..AT200,ST20#199311

27700AREGULATOR ASSY, GENERATOR

main27700-74030i7AFE,3SG#..AT200,ST20#199311

2738416380WASHER

main27384-16380

2738770110INSULATOR, TERMINAL

main27387-70110

2738770111INSULATOR, TERMINAL

main27387-70111

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905267

main90099-05267

9010510249

main90105-10249

9017906158

main90179-06158

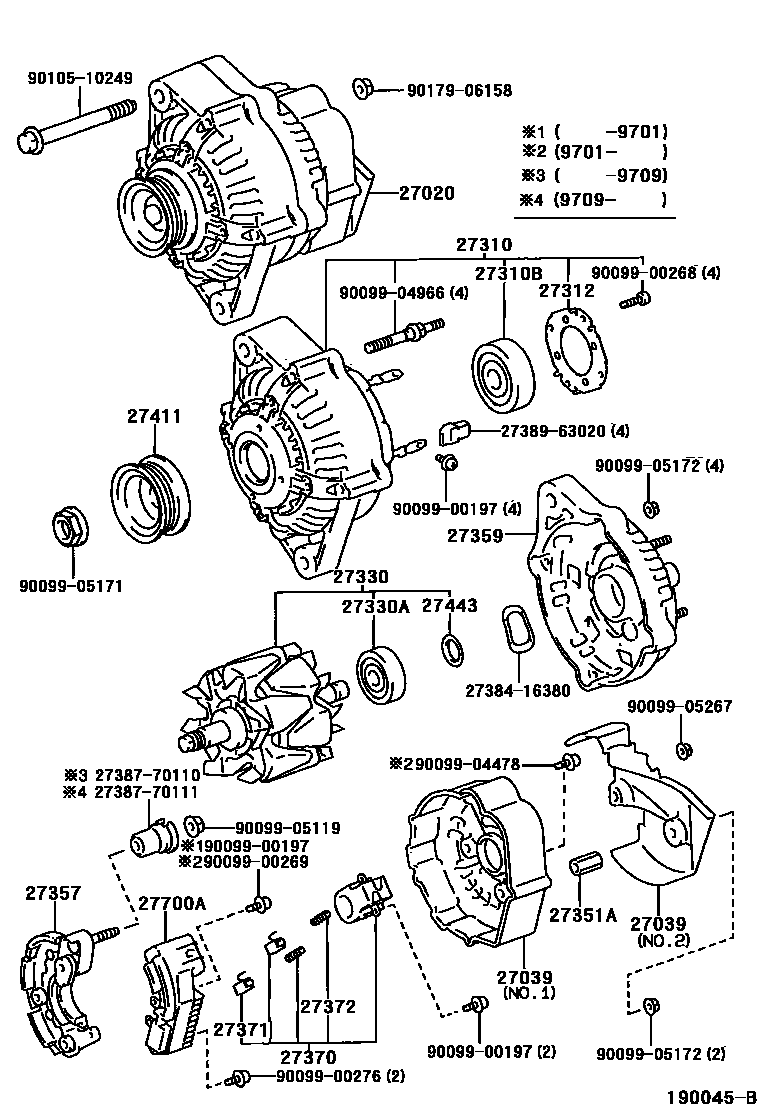

32 parts on this diagram · 3 diagrams in section
