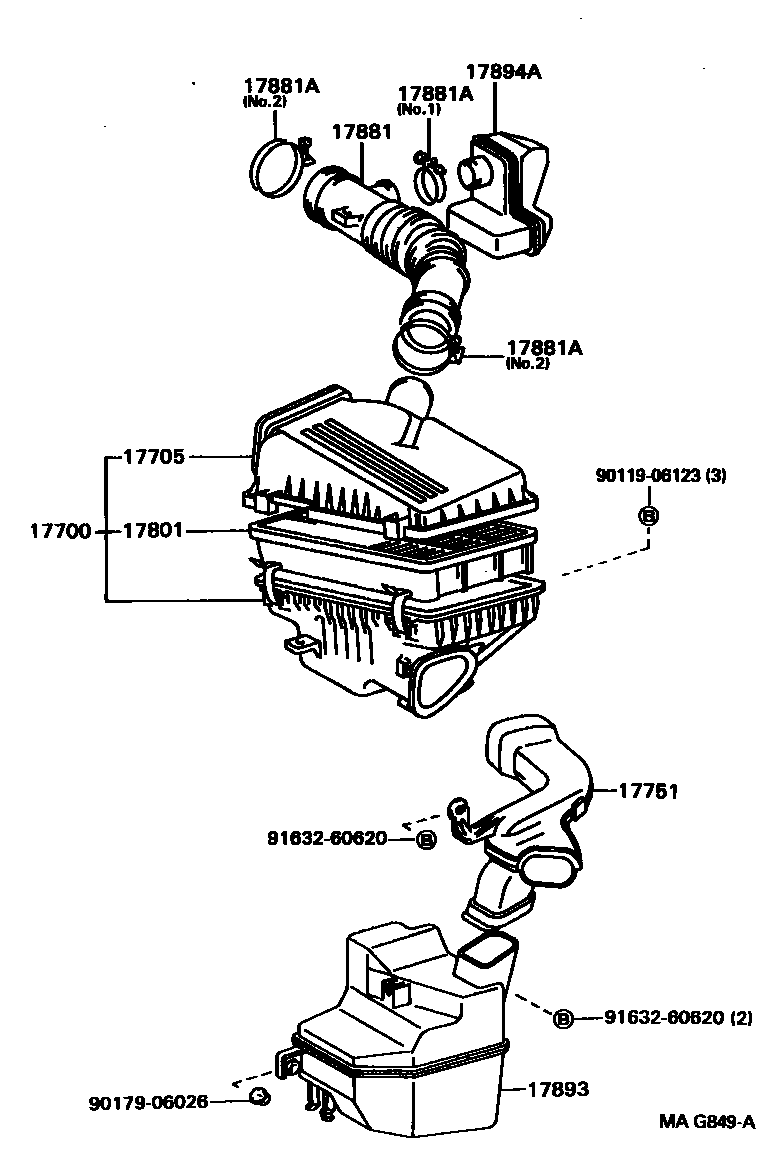

AIR CLEANER
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
NO.1
NO.2
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
INTERCOOLER SIDE
TURBOCHARGER SIDE
NO.1
NO.2
17894ARESONATOR, INTAKE AIR, NO.2
9011906123
main90119-06123
9017906026
main90179-06026
9163260620
main91632-60620
11 parts on this diagram · 4 diagrams in section
