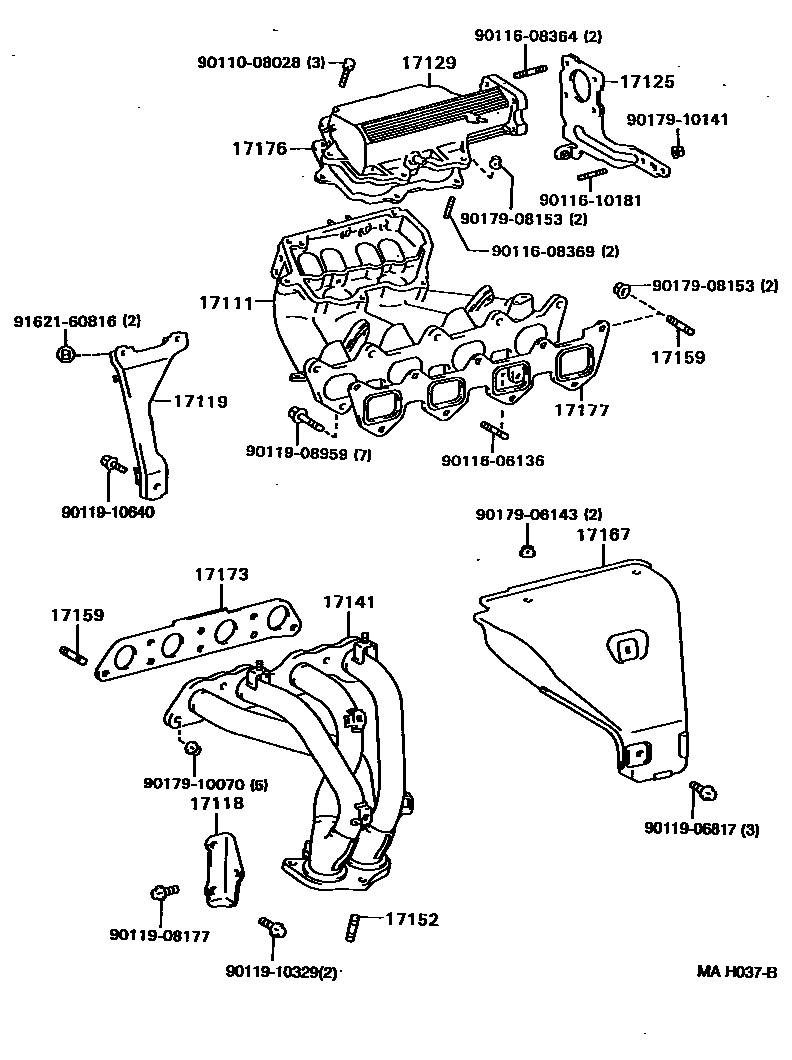

MANIFOLD
17111MANIFOLD, INTAKE
GROUP A SPEC
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
GROUP A SPEC
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
NO.2
NO.1
INTAKE MANIFOLD
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011008028
main90110-08028
9011606136
main90116-06136
9011608364
main90116-08364
9011608369
main90116-08369
9011610181
main90116-10181
9011906817
main90119-06817
9011908177
main90119-08177
9011908959
main90119-08959
9011910329
main90119-10329
9011910640
main90119-10640
9017906143
main90179-06143
9017908153
main90179-08153
9017910070
main90179-10070
9017910141
main90179-10141
9162160816
main91621-60816
27 parts on this diagram · 6 diagrams in section
