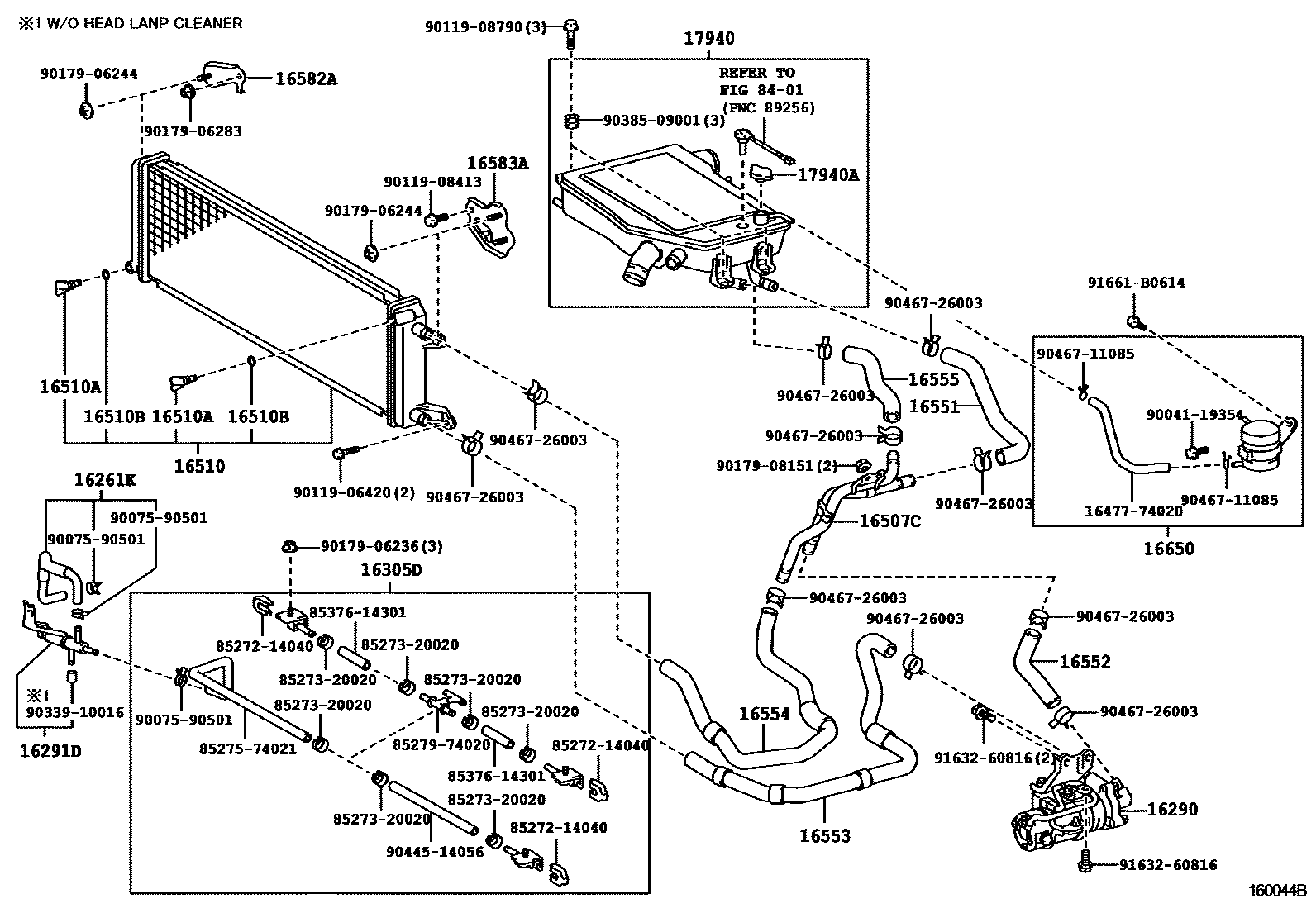

INTERCOOLER & SUB RADIATOR
16261KHOSE, WATER BY-PASS
16290PUMP ASSY, WATER W/MOTOR & BRACKET
16291DJOINT, WATER HOSE
W(HEADLAMP CLEANER)
16305DOUTLET SUB-ASSY, WATER BY-PASS
16507CPIPE SUB-ASSY, SUB-RADIATOR, NO.1
16510SUB-RADIATOR ASSY
16510APLUG, DRAIN COCK(FOR SUB-RADIATOR)
16510BRING, O(FOR SUB-RADIATOR DRAIN COCK PLUG)
16551HOSE, SUB-RADIATOR, NO.1
16552HOSE, SUB-RADIATOR, NO.2
16553HOSE, SUB-RADIATOR, NO.3
16554HOSE, SUB-RADIATOR, NO.4
16555HOSE, SUB-RADIATOR, NO.5
16582ABRACKET, RADIATOR, NO.1
16583ABRACKET, RADIATOR, NO.2
16650TANK ASSY, RESERVE(FOR INTERCOOLER)
17940INTERCOOLER ASSY
GROUP A SPEC
17940ACAP SUB-ASSY, INTERCOOLER
8401
1647774020PIPE(FOR RADIATOR RESERVE TANK)
main16477-74020
8527214040CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14040
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527574021WIRING SUB-ASSY, HEADLAMP CLEANER
main85275-74021
8527974020RELAY ASSY, HEADLAMP CLEANER WASHER
main85279-74020
8537614301PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85376-14301
9004119354
main90041-19354
9007590501
main90075-90501
9011906420
main90119-06420
9011908413
main90119-08413
9011908790
main90119-08790
9017906236
main90179-06236
9017906244
main90179-06244
9017906283
main90179-06283
9017908151
main90179-08151
9033910016
main90339-10016
9038509001
main90385-09001
9044514056
main90445-14056
9046711085
main90467-11085
9046726003
main90467-26003
9163260816
main91632-60816
91661B0614
main91661-B0614
41 parts on this diagram · 1 diagram in section
