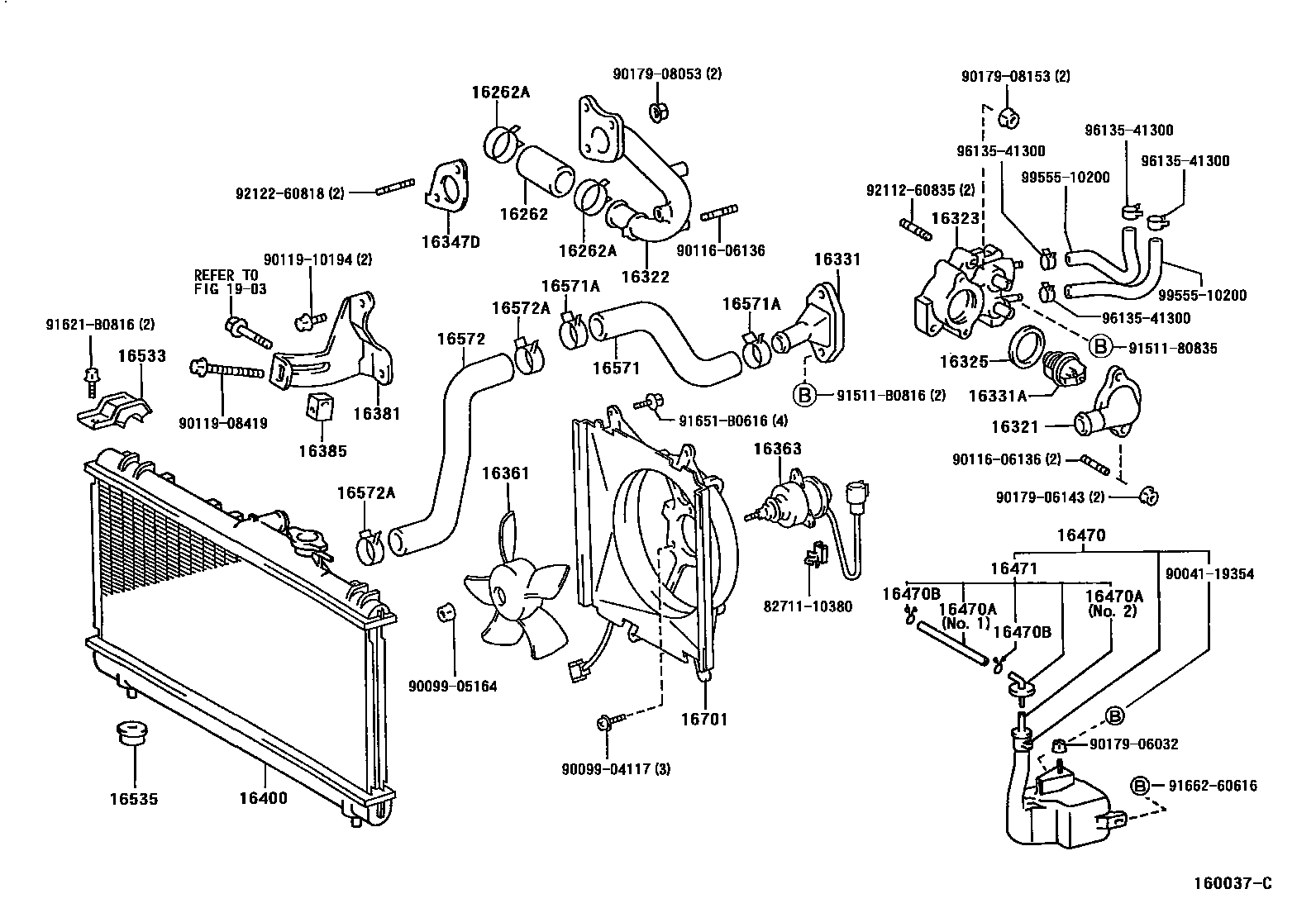

RADIATOR & WATER OUTLET
16262ACLIP(FOR WATER INLET HOSE)
sub90467-37005
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
sub16323-16410
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
16347DGASKET, WATER BY-PASS
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
sub16385-15030
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=300),NO.2
*H,L=345,NO.2
L=600(*H,L=210),NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
1903
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9004119354
main90041-19354
9009904117
main90099-04117
9009905164
main90099-05164
9011606136
main90116-06136
9011908419
main90119-08419
9011910194
main90119-10194
9017906032
main90179-06032
9017906143
main90179-06143
9017908053
main90179-08053
9017908153
main90179-08153
9151180835
main91511-80835
91511B0816
main91511-B0816
91621B0816
main91621-B0816
91651B0616
main91651-B0616
9166260616
main91662-60616
9211260835
main92112-60835
9212260818
main92122-60818
9613541300
main96135-41300
9955510200
main99555-10200
46 parts on this diagram · 5 diagrams in section
