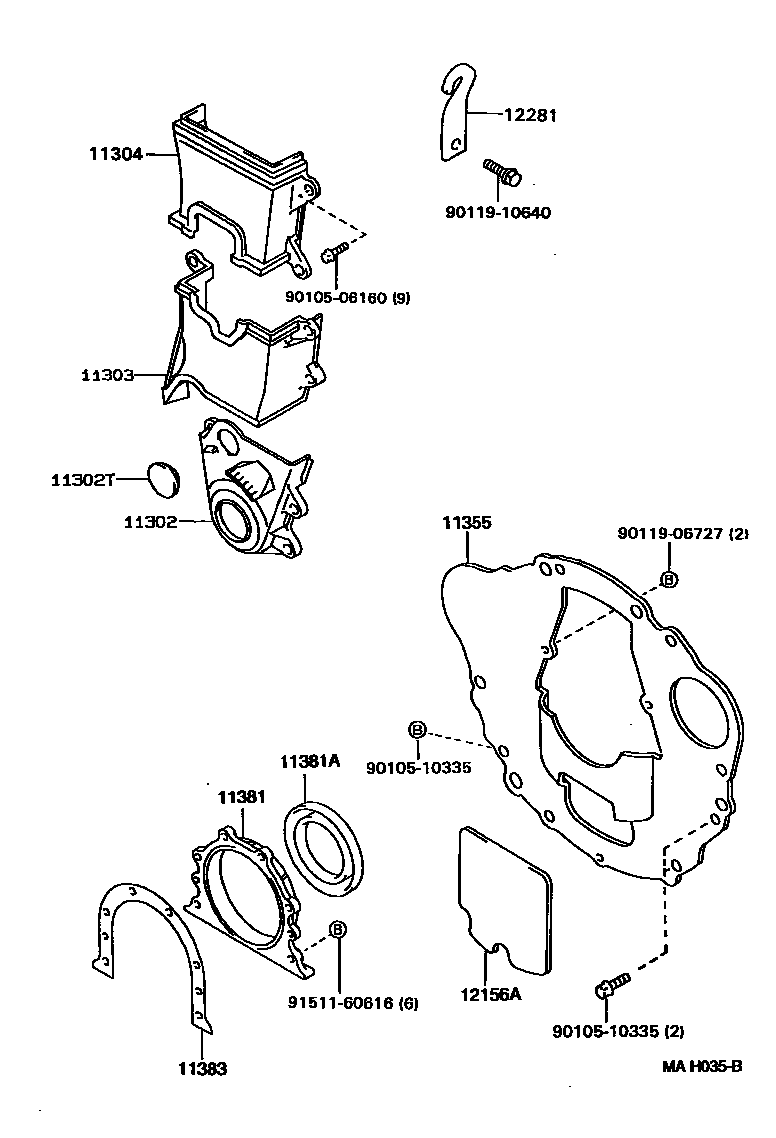

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15050i7AFE..AT200199311

main11321-88460i3SG#..ST20#199311

11302TPLUG, HOLE

main90950-01783i7AFE..AT200199311

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-16050i7AFE..AT200199311

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-16060i7AFE..AT200199311

main11322-88460i3SG#..ST20#199311

11355PLATE, REAR END

main11355-15070i7AFE..AT200199311

main11355-74010i3SGE..ST202199311

main11355-74030i3SGE..ST202..LB199311-199508

SUPER STRUT SUSPENSION

main11355-88480i3SGTE..ST205199402-199606

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i7AFE..AT200199311

main11381-74010i3SG#..ST20#199311

11381ASEAL, ENGINE REAR OIL

main90311-70007i7AFE..AT200199311

main90311-89001i3SGE..ST202199708

sub90311-89003

main90311-89002i3SG#..ST20#199311-199708

sub90311-89001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i7AFE..AT200199311

main11383-88460i3SG#..ST20#199311

12156AINSULATOR, OIL PAN

main12156-16020i7AFE..AT200199508

12281HANGER, ENGINE, NO.1

main12281-15050i7AFE..AT200199311

main12281-88461i3SGE..ST202199311

main12281-88480i3SGTE..ST205199402-199606

main12281-88481i3SGTE..ST205199402-199404

GROUP A SPEC

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9151160616

main91511-60616

15 parts on this diagram · 3 diagrams in section
