HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL 0003 1AIR DUCT 0004 1AIR DUCT

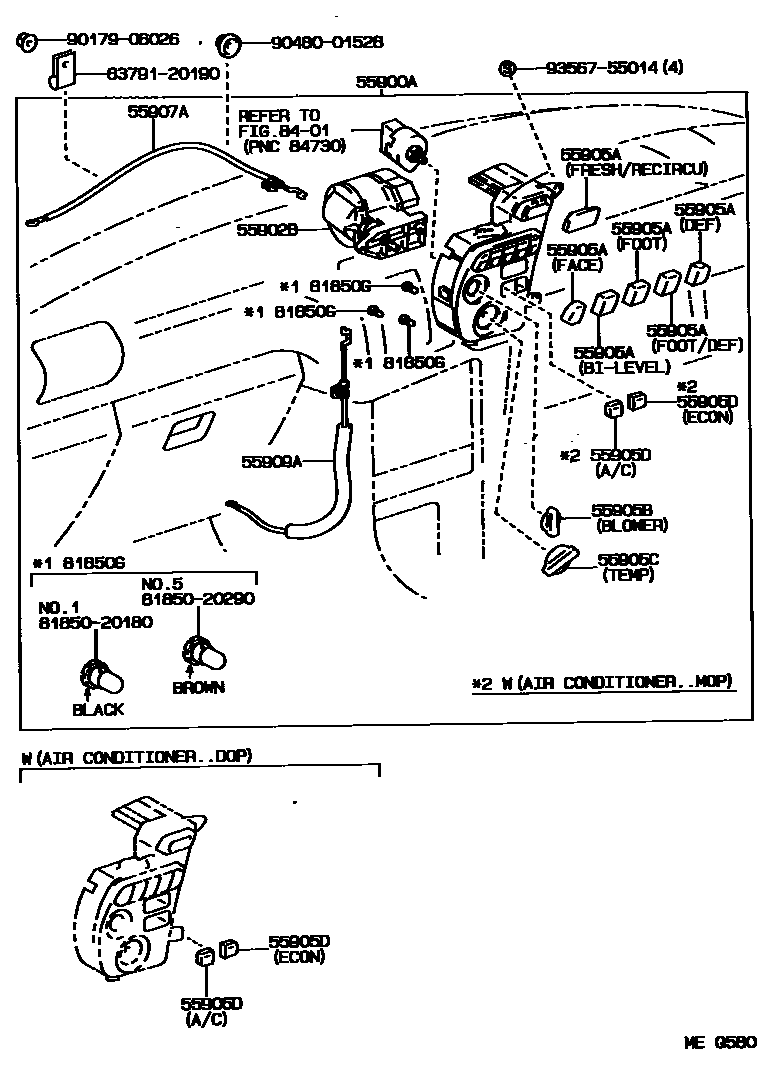

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-20500iST18#..RHD¥31,500198910-199311

main55900-20510iST18#..RHD..LB¥31,500198910-199311

W(AIR CONDITIONER)

main55900-20710iST182..LHD..CVT¥31,800198910-199111

sub55900-20860¥34,000

main55900-20720iST18#..LHD..LB¥31,800198910-199108

W(AIR CONDITIONER)

sub55900-20870¥34,000

main55900-20860iAT180,ST18#..LHD¥34,000199108-199203

sub55900-20861¥34,000

main55900-20861iAT180,ST18#..LHD¥34,000199203-199311

main55900-20870iAT180,ST18#..LHD..(CP,LB)¥34,000199108-199203

W(AIR CONDITIONER)

sub55900-20871¥34,000

main55900-20871iAT180,ST18#..LHD..(CP,LB)¥34,000199203-199311

W(AIR CONDITIONER)

55902BCONTROL SUB-ASSY, HEATER

main55902-20070iST18#..RHD¥2,350198910-199311

main55902-20080iAT180,ST18#..LHD¥2,360198910-199109

main55902-20130iAT180,ST18#..LHD..(CP,LB)¥1,810199108-199311

55905AKNOB, HEATER CONTROL

main55905-20430iST18#..RHD¥470198910-199311

FRESH/RECIRCU

main55905-20440iST18#..RHD¥470198910-199311

FACE

main55905-20450iST18#..RHD¥470198910-199311

BI-LEVEL

main55905-20460iST18#..RHD¥470198910-199311

FOOT

main55905-20470iST18#..RHD¥470198910-199311

FOOT/DEF

main55905-20480iST18#..RHD¥470198910-199311

DEF

main55905-20490iAT180,ST18#..LHD..(CP,LB)¥470199108-199311

FRESH/RECIRCH

main55905-20490iAT180,ST18#..LHD¥470198910-199109

FRESH/RECIRCU

main55905-20500iAT180,ST18#..LHD¥470198910-199311

FACE

main55905-20510iAT180,ST18#..LHD¥470198910-199311

BI-LEVEL

main55905-20520iAT180,ST18#..LHD¥470198910-199311

FOOT

main55905-20530iAT180,ST18#..LHD¥470198910-199311

FOOT/DEF

main55905-20540iAT180,ST18#..LHD¥470198910-199311

DEF

55905BKNOB, HEATER CONTROL, NO.2

main55905-20660iAT180,ST18#¥470199109-199311

main55905-20660iST182..CVT;AT180,ST18#..LHD..(CP,LB)¥470198910-199109

BLOWER SWITCH

55905CKNOB, HEATER CONTROL, NO.3

main55905-20680iAT180,ST18#¥470198910-199109

TEMP

main55905-20680iAT180,ST18#¥470199109-199311

55905DKNOB SUB-ASSY, CONTROL

main55905-20350iST18#..RHD..LB¥240198910-199311

A/C

main55905-20360iST18#..RHD..LB¥240198910-199311

ECON

main55905-20420iAT180,ST18#..LHD..(CP,LB)¥470198910-199311

A/C

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20240iST18#..RHD¥860198910-199311

main55907-20250iAT180,ST18#..LHD¥860198910-199311

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20110iST18#..RHD;ST182..LHD..CVT¥610198910-199311

main55909-20160iAT180,ST18#..LHD¥640199108-199311

81850GLAMP ASSY, INDICATOR

main81850-20180iAT180,ST18#¥1,130198910-199311

NO.1

main81850-20290iAT180,ST18#¥1,130198910-199311

NO.5

8401

8185020180LAMP ASSY, INDICATOR

main81850-20180¥1,130

8185020290LAMP ASSY, INDICATOR

main81850-20290¥1,130

8379120190

main83791-20190¥110

9017906026

main90179-06026¥70

9048001528

main90480-01528¥0

9356755014

main93567-55014¥110

16 parts on this diagram · 4 diagrams in section
