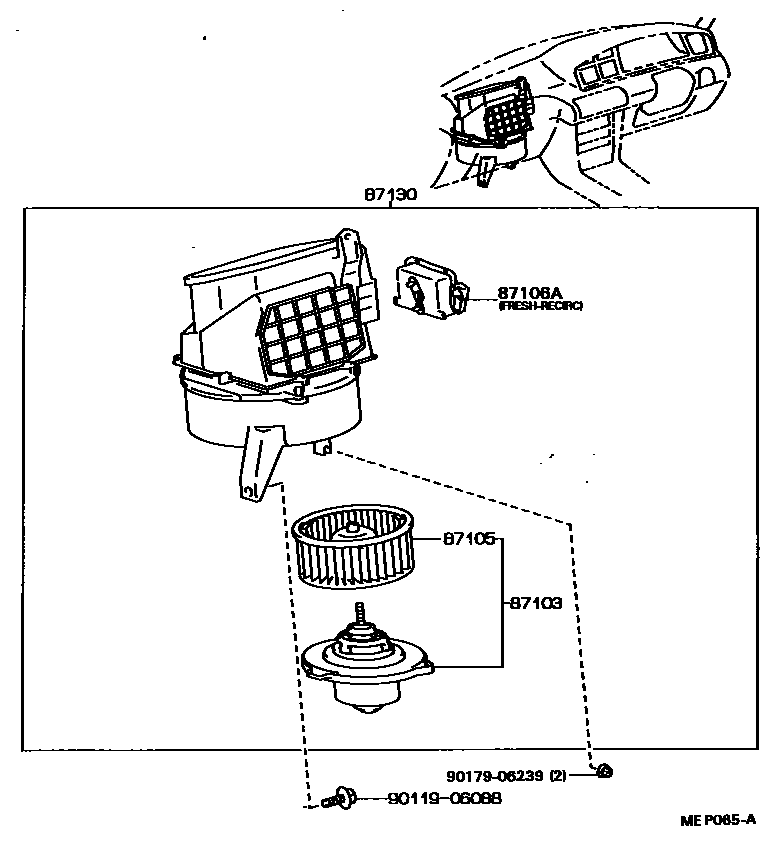

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20050iST18#..RHD198910-199311

main87103-20060iAT180,ST18#..LHD199008-199311

main87103-20070iAT180198910-199008

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100iST18#..RHD198910-199311

main87105-20110iAT180,ST18#..LHD198910-199311

87106ASERVO SUB-ASSY, DAMPER

main87106-20120iST18#..RHD198910-199311

MODE

main87106-20130iAT180,ST18#..LHD..(CP,LB)199108-199109

NORTHERN EUROPE SPEC

main87106-20160iST18#..RHD198910-199311

FRESH-RECIRC

main87106-20170iAT180,ST18#..LHD198910-199311

FRESH-RECIRC

87130BLOWER ASSY, HEATER, FRONT

main87130-20450iST18#..RHD198910-199311

main87130-20460iST18#..LHD198910-199008

main87130-20470iAT180198910-199008

9011906088

main90119-06088

9017906239

main90179-06239

6 parts on this diagram · 2 diagrams in section
