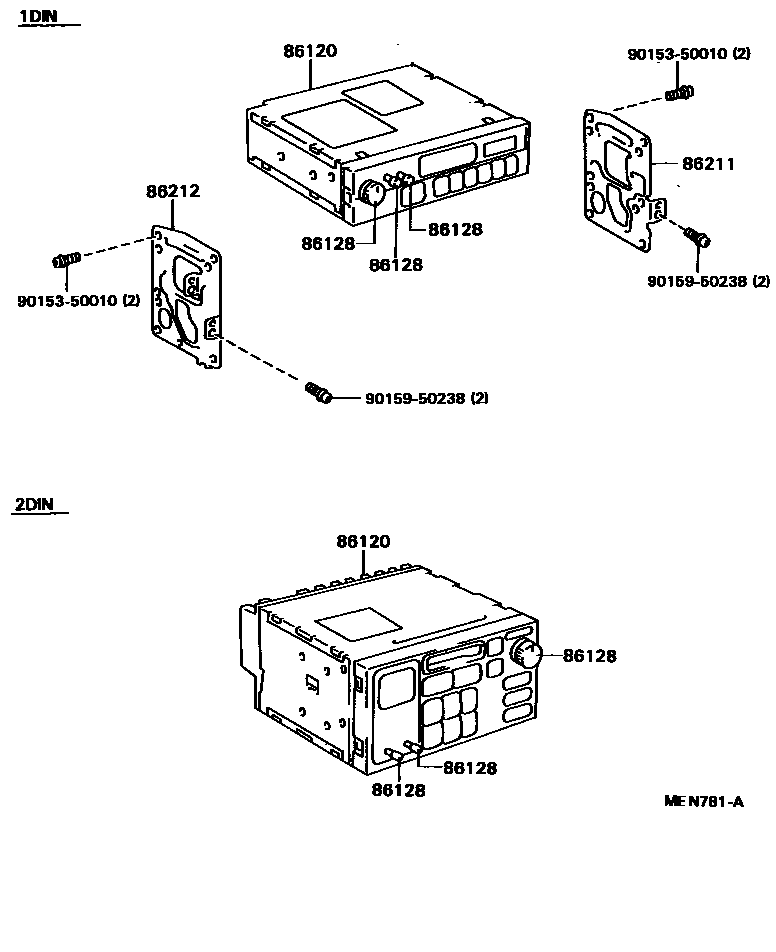

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-2B080iST18#..LB;ST182..CVT..G198910-199109

LW/MW/UKW ETR 1DIN CST 10SP

sub86120-2B320

main86120-2B090iST182..RHD..LB198910-199108

FUJITSU TEN,AM/FM ETR 2DIN CST 4SP

main86120-2B100iST185;ST182..CVT198910-199311

MW/UKW ETR 1DIN CST 4SP

main86120-2B110iST18#..LB;ST182..CVT..G198910-199108

LW/MW/UKW ETR 1DIN CST 4SP

sub86120-17240

main86120-2B110iST182..CVT..G198910-199109

LW/MW/UKW ETR 1DIN CST 4SP OR LW/MW/UKW ETR 1DIN CST 6SP

sub86120-17240

main86120-2B180iST18#..LB199108-199311

MATSUSHITA,LW/MW/UKW ETR 1DIN CST 4SP OR LW/MW/UKW ETR 1DIN CST 6SP

main86120-2B180iAT180199108-199311

MATSUSHITA,LW/MW/UKW ETR 1DIN CST 4SP

main86120-2B320iST18#199108-199311

FUJITSU TEN,LW/MW/UKW ETR 1DIN CST 10SP

main86120-2B350iST182..RHD..LB199108-199211

FUJITSU TEN,AM/FM ETR 1DIN 4SP

main86120-2B360iST182..RHD..LB199108-199311

MATSUSHITA,ID=57400,AM/FM ETR CST 1DIN 4SP

main86120-32390iST182..RHD..LB198910-199108

FUJITSU TEN,AM/FM ETR 1DIN 4SP

86128KNOB, RADIO RECEIVER

main86128-17230iST182..CVT;AT180,ST185;ST182..LHD..LB198910-199109

RADIO=86120-2B100;86120-2B110,PWR/VOL

main86128-17250iST182..CVT198910-199109

RADIO=86120-2B100;86120-2B110,BASS/TREB,BAL/FADE

main86128-17310iST182..RHD..LB199108-199311

RADIO=86120-2B100;86120-2B110,VOL

main86128-17330iST182..RHD..LB199108-199311

RADIO=86120-2B100;86120-2B110,BAL/FADE,BASS/TREB

main86128-28140iST182..RHD..LB198910-199108

RADIO=86120-32390,POW/VOL

main86128-28160iST182..RHD..LB198910-199108

RADIO=86120-32390,BASS/TREB,BAL/FADE

86211BRACKET, RADIO, NO.1

main86211-20300iST182..CVT..G;AT180,ST18#..CP,LB198910-199311

86212BRACKET, RADIO, NO.2

main86212-20290iST182..CVT..G;AT180,ST18#..CP,LB198910-199311

9015350010

main90153-50010

9015950238

main90159-50238

6 parts on this diagram · 3 diagrams in section
