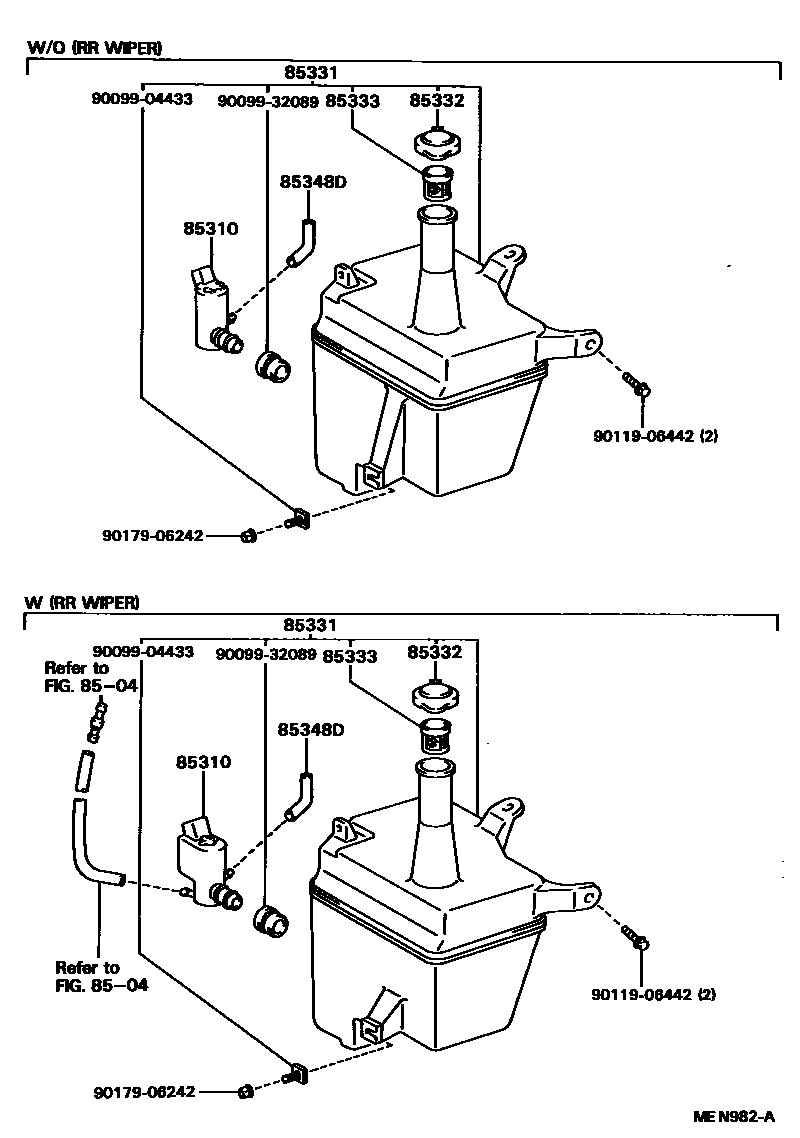

WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER) 0003 1

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iST18#..LB198910-199311

W(REAR WINDOW WIPER)

main85310-20180iAT180;ST182..CVT198910-199108

W(HEAD LAMP CLEANER)

main85310-20190iAT180;ST182..CVT198910-199311

sub85330-33020

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20760×2iAT180;ST182..CVT199108-199311

W(REAR WINDOW WIPER)

main85331-20780iST185199108-199202

85332CAP, WINDSHIELD WASHER JAR

main85332-20750iAT180,ST18#198910-199311

sub85316-33120

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iAT180,ST18#198910-199311

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iAT180,ST18#199202-199311

2 WAY,NO.1

main85348-12250iAT180,ST18#..CP,LB199108-199109

3 WAY

main85349-89122iAT180,ST18#..CP,LB199108-199109

2 WAY,NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110iAT180,ST18#198910-199311

9009904433

main90099-04433

9009932089

main90099-32089

9011906442

main90119-06442

9017906242

main90179-06242

11 parts on this diagram · 3 diagrams in section
