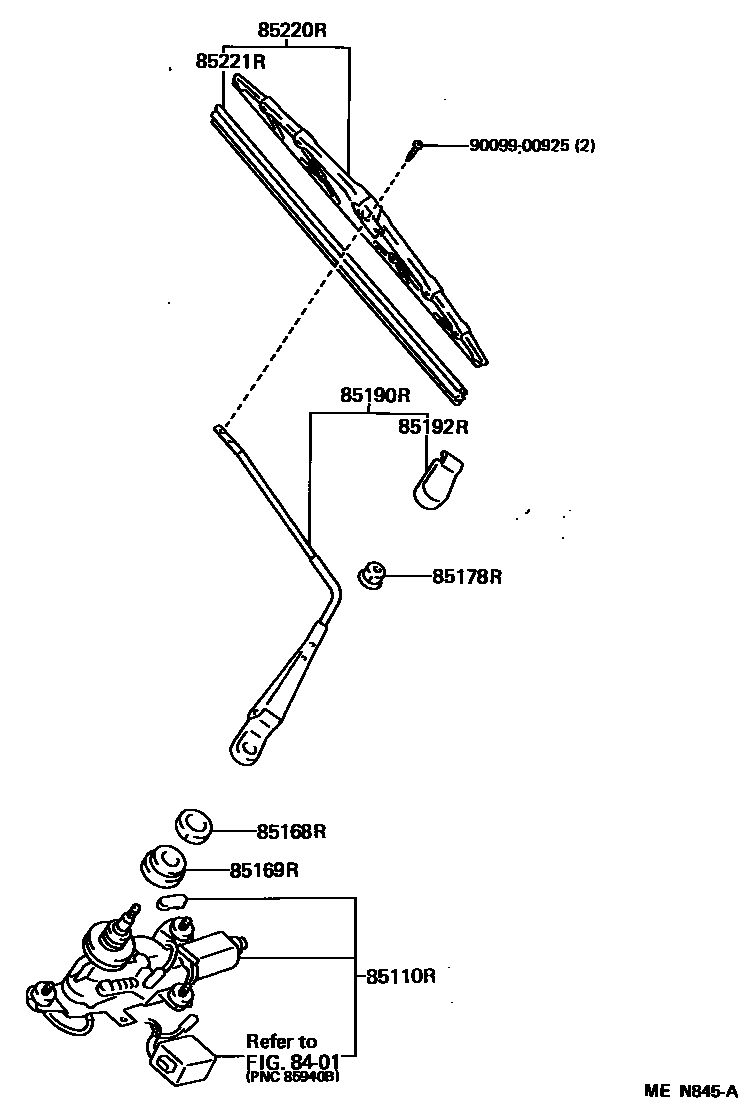

REAR WIPER

0001 1 0002 1W(RR SPOILER)

8401

85110RMOTOR ASSY, REAR WIPER

main85110-20660iAT180..LB198910-199311

main85110-20670iST18#..RHD..LB198910-199311

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAT180..LB;ST18#..RHD198910-199311

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-20660iAT180..LB;ST18#..RHD198910-199311

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06024iST18#..RHD198910-199311

main90179-06158iST182..WIB..G199008-199108

W(REAR SPOILER)

main90179-06158iAT180,ST182..LB..NOB198910-199311

85190RARM ASSY, REAR WIPER

main85190-20740iAT180,ST182..LHD..LB..NOB198910-199311

main85190-20750iST18#..LHD..WIB198911-199311

W(REAR SPOILER)

main85190-20760iST182..RHD..LB..NOB198911-199311

main85190-20770iST18#..RHD..WIB198911-199311

W(REAR SPOILER)

main85190-20770iST18#..RHD198910-198911

85192RCOVER, REAR WIPER ARM

main85192-32010iAT180..LB198910-199311

85220RBLADE ASSY, REAR WIPER

main85220-3A250iAT180..LB198910-199311

main85220-3A260iST18#..RHD..LB198910-199311

85221RBLADE, REAR WIPER

main85221-20220iAT180,ST18#..LB198910-199311

sub85214-27H90

9009900925

main90099-00925

10 parts on this diagram · 2 diagrams in section
