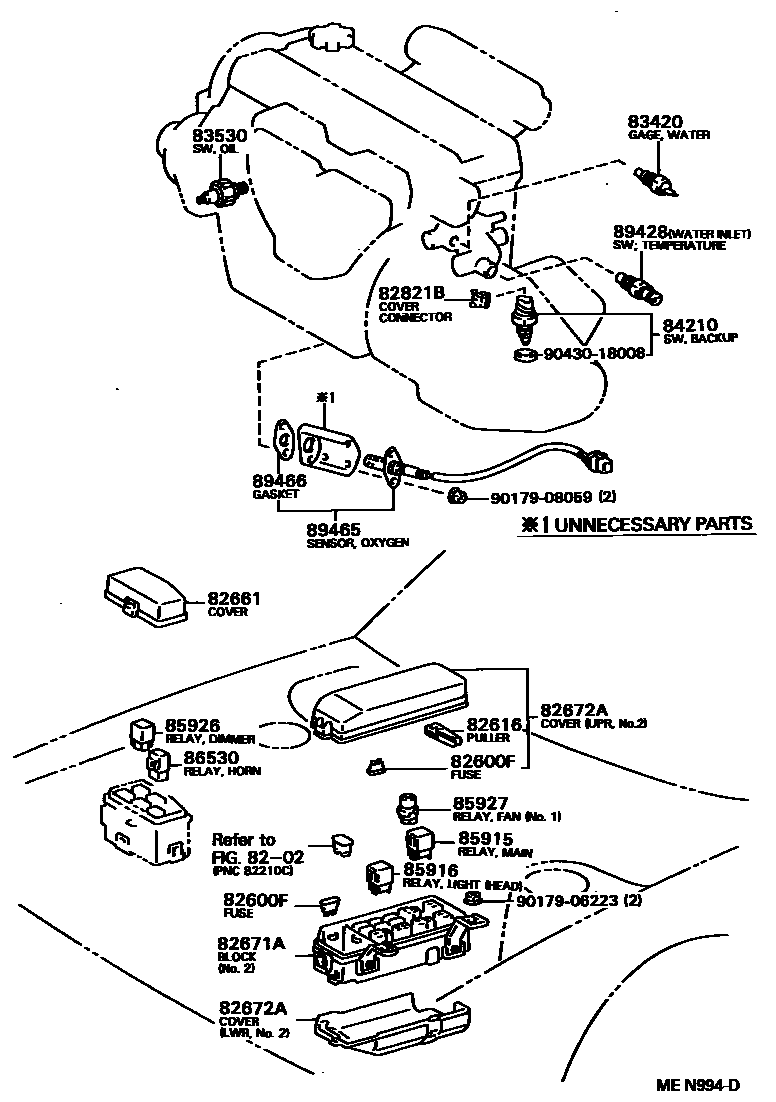

SWITCH & RELAY & COMPUTER
8202
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
15A,*FRG
20A,YELLOW
7.5A
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
*FRG
*FRG
82671ABLOCK, JUNCTION
82672ACOVER, JUNCTION BLOCK
NO.1
NO.1
UPPER,NO.2
*FRG,UPPER,NO.2
UPPER,NO.2
*FRG,UPPER,NO.2
NO.3
LOWER,NO.2
LOWER,NO.2
NO.3
LOWER,NO.2
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
NIPPONDENSO
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
HEADLAMP
TAIL LAMP
85926RELAY, HEADLAMP DIMMER
*FRG
85927RELAY, COOLING FAN
NO.2
NO.1
86530RELAY ASSY, HORN
89428SWITCH, TEMPERATURE DETECT, NO.2
NIPPONDENSO
RADIATOR
WATER INLET
WATER INLET
RADIATOR
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
9017906223
9017908059
9043018008
21 parts on this diagram · 5 diagrams in section
