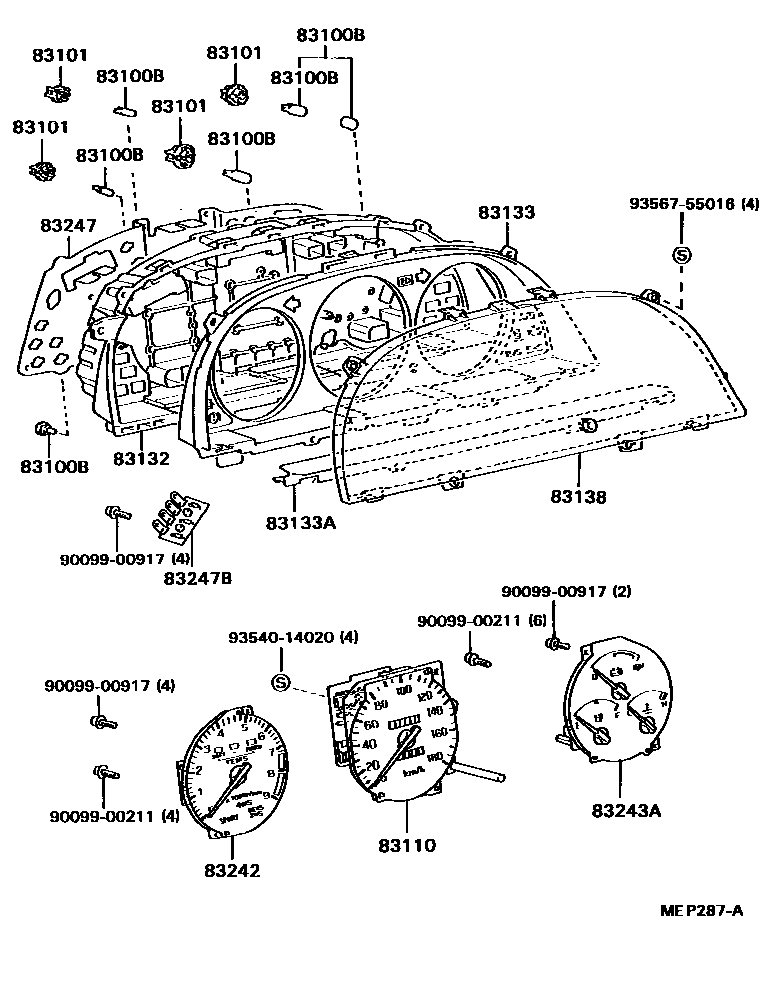

METER
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
12V 1.4W,W(SOCKET),SOCKET:83101-14030
12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030
12V 1.4W,GREEN CAP,SOCKET:83101-14030
12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030
12V3.4W W(GREEN CAP),SOCKET:83101-14030
14V 3.0W,14V 3.0W,SOCKET:83101-14030
12V 1.2W W/O SOCKET,SOCKET:83101-14040
12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040
12V 3.4W,SOCKET:83101-14030
12V 3.4W,12V 3.4W,SOCKET:83101-14030
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:3.4W OR 3.4W
BULB:3.0W OR 3.4W
BULB:1.2W OR 1.4W
BULB:1.4W
83110SPEEDOMETER ASSY
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83138GLASS, SPEEDOMETER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
9009900211
main90099-00211
9009900917
main90099-00917
9354014020
main93540-14020
9356755016
main93567-55016
15 parts on this diagram · 6 diagrams in section
