WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1ENGINE WIRE 0006 1ENGINE WIRE CLAMPS 0007 1COWL WIRE 0008 1COWL WIRE 0009 1COWL WIRE DIODE 0010 1DOOR,ROOF,LUGGAGE WIRE 0011 1DOOR,ROOF,LUGGAGE WIRE 0012 1FLOOR,FRAME WIRE 0013 1FLOOR,FRAME WIRE 0014 1CABLE BOND 0015 1REPAIR WIRE 0016 1REPAIR WIRE

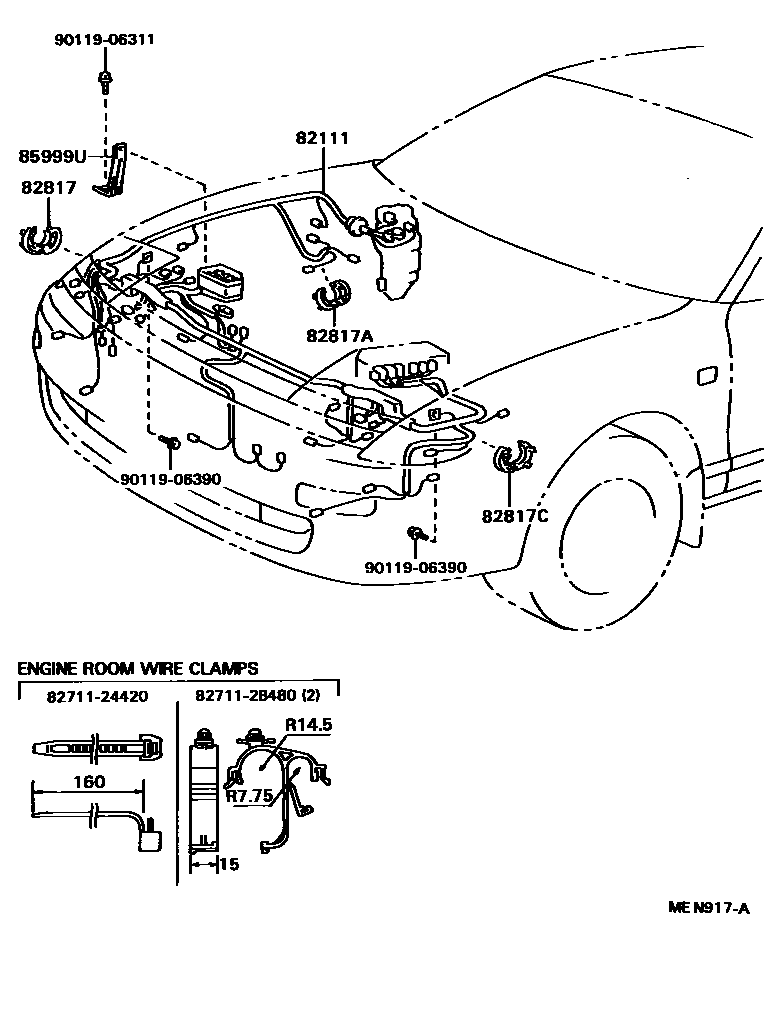

82111WIRE, ENGINE ROOM MAIN

main82111-2B290iST182..RHD198910-199008

main82111-2B291iST182..RHD199008-199108

main82111-2B300iST185..RHD198910-199108

main82111-2B850iST182..RHD198910-199008

UNITED KINGDOM SPEC

main82111-2B851iST182..RHD..MTM..W199108-199109

UNITED KINGDOM SPEC

main82111-2B860iST185..RHD198910-199108

UNITED KINGDOM SPEC

main82111-2D060iAT180,ST182..G198910-199008

*FRG

main82111-2D061iST182..CVT..G199108-199109

*FRG

main82111-2D070iST185..LHD198910-199108

*FRG

main82111-2D090iAT180,ST182..LHD198910-199008

main82111-2D091iAT180,ST182..LHD199008-199108

main82111-2D100iST185..LHD198910-199108

main82111-2G010iST182..RHD..LB199108-199311

main82111-2G020iST185..RHD199202-199311

main82111-2G030iST185..RHD199108-199202

main82111-2G040iST182..RHD..LB199108-199311

UNITED KINGDOM SPEC

main82111-2G050iST185..RHD199202-199311

UNITED KINGDOM SPEC

main82111-2G060iST185..RHD199108-199202

UNITED KINGDOM SPEC

main82111-2G080iAT180,ST182..LHD..(CP,LB)199108-199109

main82111-2G090iST185..LHD199202-199311

main82111-2G100iST185..LHD199108-199202

main82111-2G110iAT180,ST182..LHD..LB..G199108-199109

*FRG

main82111-2G120iST185..LHD199202-199311

*FRG

main82111-2G130iST185..LHD199108-199202

*FRG

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B200iAT180,ST18#198910-199311

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-2B730iAT180,ST18#199001-199311

main82817-32420iAT180,ST18#198910-199001

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-2B200iAT180,ST18#198910-199311

85999UBRACKET, RELAY BLOCK

main85999-20360iAT180,ST18#198910-199311

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

827112B480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B480

9011906311

main90119-06311

9011906390

main90119-06390

9 parts on this diagram · 16 diagrams in section
