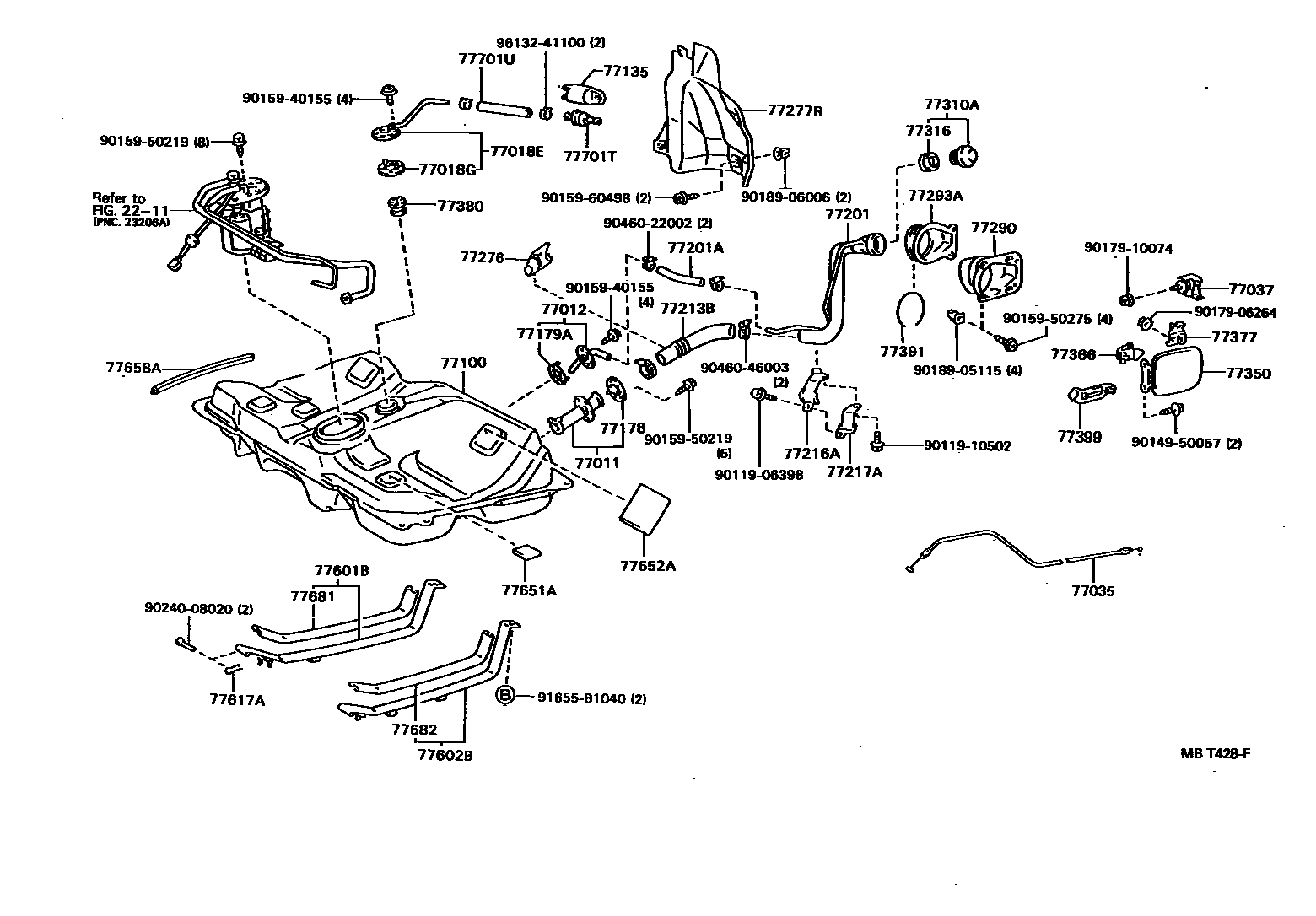

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20080iAT180,ST182¥2,710198910-199311

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-20090iAT180,ST182¥2,600198910-199311

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20090iAT180,ST182..W¥3,280198910-199311

main77018-20120iAT180,ST182..G¥4,140198910-199109

main77018-20121iAT180,ST182..G¥4,100199108-199311

main77018-20130iST185¥3,310198910-199311

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-16010iST185¥480198910-199311

main77179-26010iAT180,ST182¥230198910-199311

sub77179-26011¥190

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14090iST182..CVT¥1,690199109-199311

main77035-20250iST18#..RHD¥1,780198910-199008

sub77035-32150¥2,440

main77035-20270iAT180,ST18#..LHD¥1,980198910-199311

main77035-20300iST182..RHD..CVT¥2,440199010-199109

main77035-20320iST182..LHD..CVT¥1,780199010-199109

sub77035-14090¥1,690

main77035-20350iST18#..RHD..LB¥2,660199008-199108

sub77035-32150¥2,440

main77035-20360iAT180,ST18#..LHD..LB¥1,980199008-199311

main77035-32150iST18#..RHD..LB¥2,440199108-199311

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20060iAT180,ST18#¥1,490198910-199311

77100TANK ASSY, FUEL

main77001-20936iAT180,ST182¥46,700198910-199311

main77001-20937iST185¥49,000198910-199311

sub77001-20942¥48,400

77135BRACKET, CHECK VALVE

main77135-20080iAT180,ST182..W¥470198910-199311

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT180,ST182..CP,LB¥120199108-199311

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iAT180,ST182¥260198910-199311

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20420iST185¥14,000198910-199311

main77201-20440iAT180,ST182..W¥10,800198910-199311

main77201-20450iAT180,ST182..G¥10,800198910-199311

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22033iAT180,ST182¥910198910-199311

L=175

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20140iAT180,ST182¥4,560198910-199311

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20130iAT180,ST182¥910198910-199311

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-20030iAT180,ST182¥820198910-199311

77276PROTECTOR, FUEL HOSE

main77276-20020iAT180,ST182¥760198910-199311

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20190iAT180,ST182¥3,960198910-199311

main77277-20200iST185¥3,880198910-199311

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20110iAT180,ST182..NOB¥1,750198910-199311

main77290-20120iST18#..WIB¥2,080198910-199311

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20060iAT180,ST182..NOB¥1,190198910-199311

main77293-20070iST18#..WIB¥1,190198910-199311

77310ACAP ASSY, FUEL TANK

main77310-16011iAT180,ST18#¥2,790198910-199311

sub77310-12140¥2,790

77316GASKET, FUEL TANK CAP

main77316-16010iAT180,ST18#¥660198910-199311

77350LID ASSY, FUEL FILLER OPENING

main77350-20120iAT180,ST182..CP,CVT¥3,580198910-199311

main77350-20160iAT180,ST182..LB..NOB¥4,080198910-199311

main77350-20170iST18#..WIB¥4,080198910-199311

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12030iAT180,ST18#¥460198910-199311

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAT180,ST18#¥910198910-199311

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iST185¥1,240198910-199311

main77380-26010iAT180,ST182¥780198910-199311

77391RING, FUEL INLET BOX

main77391-14020iAT180,ST18#¥160198910-199311

77399HANGER, FUEL TANK CAP

main77399-20010iAT180,ST18#¥660198910-199311

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20130iST185¥2,470198910-199311

main77601-20150iAT180,ST182¥2,960198910-198911

sub77601-20H00¥2,930

main77601-20151iAT180,ST182¥2,930198911-199311

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20160iST185¥2,470198910-199311

main77602-20180iAT180,ST182¥2,960198910-198911

sub77601-20H00¥2,930

main77602-20181iAT180,ST182¥2,930198911-199311

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iST185¥110199108-199311

TYPE A

main77617-12010iAT180,ST18#¥110198910-199108

main90468-14004iAT180,ST182..CP,LB¥80199108-199311

TYPE B

77651ACUSHION, FUEL TANK, NO.1

main77651-20060iST185¥390198910-199311

main77651-20090iAT180,ST182¥250198910-199111

main77652-32030iAT180,ST182¥940199111-199311

77652ACUSHION, FUEL TANK, NO.2

main77652-20090iST185¥1,280198910-199311

main77652-20110iAT180,ST182¥1,040198910-199311

sub77652-33010¥1,030

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-20020iAT180,ST182¥450198910-199311

77681SEAT, FUEL TANK BAND, RH

main77681-20030iAT180,ST182¥860198910-199311

main77681-20040iST185¥860198910-199311

77682SEAT, FUEL TANK BAND, LH

main77681-20030iAT180,ST182¥860198910-199311

main77681-20040iST185¥860198910-199311

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iAT180,ST182..W¥1,340198910-199105

sub90917-10082¥1,350

main90917-10082iAT180,ST182..W¥1,350199105-199311

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06020iAT180,ST182..W¥480198910-199311

L=200

sub95337-06020¥570

9011906398

main90119-06398¥70

9011910502

main90119-10502¥150

9014950057

main90149-50057¥120

9015940155

main90159-40155¥120

9015950219

main90159-50219¥70

9015950275

main90159-50275¥120

9015960498

main90159-60498¥70

9017906264

main90179-06264¥100

9017910074

main90179-10074¥110

9018905115

main90189-05115¥130

9018906006

main90189-06006¥100

9024008020

main90240-08020¥250

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

91655B1040

main91655-B1040¥130

9613241100

main96132-41100¥160

54 parts on this diagram · 7 diagrams in section
