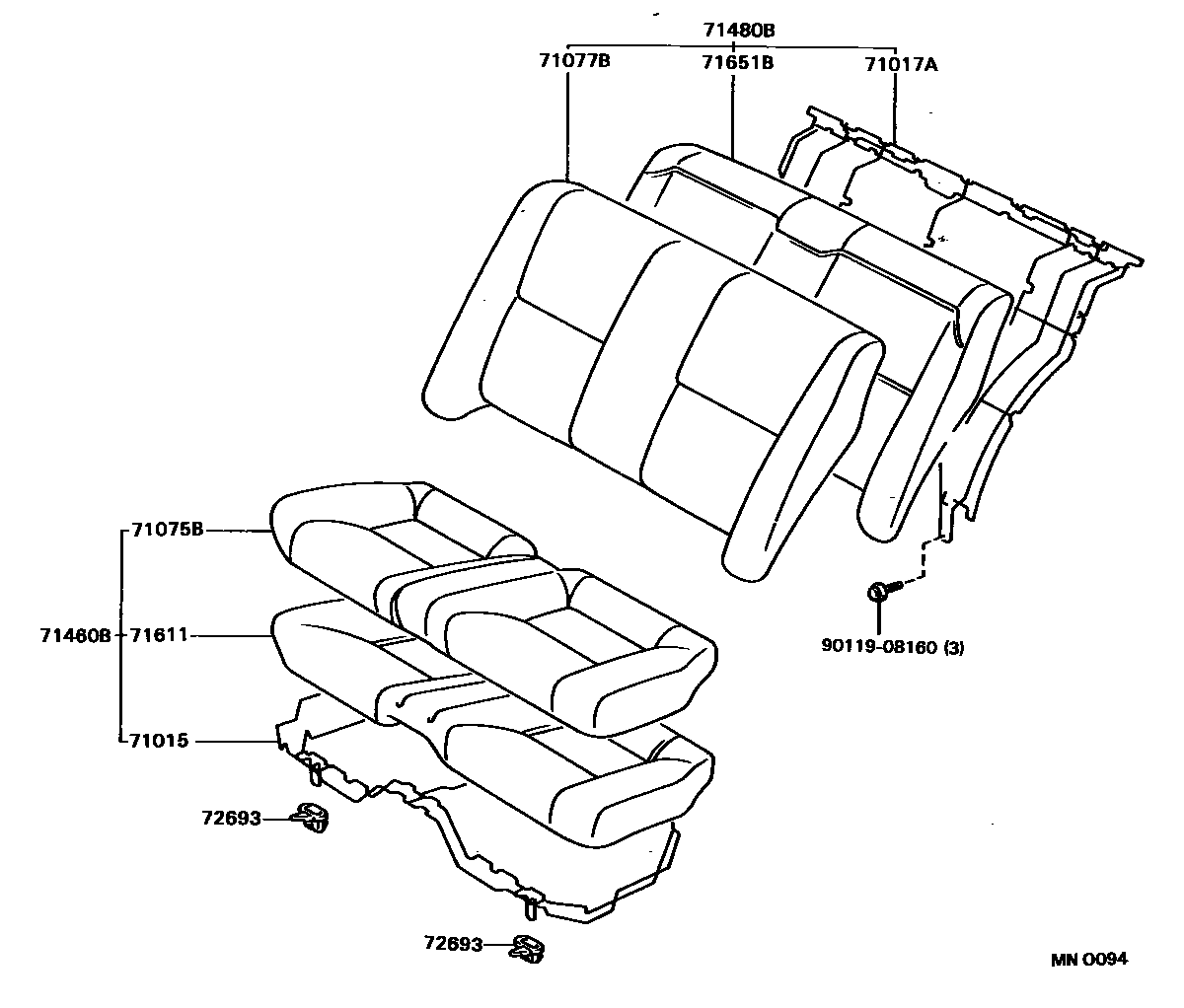

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20310iAT180,ST182..CP,LB¥7,500198910-199311

main71015-20330iST182..CVT¥9,900199010-199311

main71503-20010iST185¥26,900198910-199311

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-20330iST182..CVT¥16,300199010-199311

main71017-20440iAT180..CP¥12,000198910-199311

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-2B500-03iST182..LHD198910-198911

SHADOW GRAY,TRIM1#

main71075-2B500-03iST182..LB198910-199311

W(LEATHER),SHADOW GRAY,TRIM1#

main71075-2B500-04iST182..LHD198910-198911

DARK BLUE,TRIM8#

main71075-2B500-04iST182..RHD198910-199311

W(LEATHER),DARK BLUE,TRIM8#

main71075-2B510-03iST182198910-199008

SHADOW GRAY,TRIM1#

main71075-2B510-04iST182198910-199008

DARK BLUE,TRIM8#

main71075-2B511-C1iST182..LB199108-199311

BLACK,TRIM1#

main71075-2B511-J0iST182..LB199108-199311

DARK BLUE,TRIM8#

main71075-2B560-03iST182..CVT199010-199311

W(LEATHER),SHADOW GRAY,TRIM1#

main71075-2B590-03iST185198910-199008

SHADOW GRAY,TRIM1#

main71075-2B591-C1iST185199108-199311

BLACK,TRIM1#

main71075-2B600-03iST185198910-199311

W(LEATHER),SHADOW GRAY,TRIM1#

main71075-2B610-03iST182..CVT199010-199109

SHADOW GRAY,TRIM1#

main71075-2B611-C1iST182..CVT199109-199311

BLACK,TRIM1#

main71075-2B630-03iST182..LB199008-199108

SHADOW GRAY,TRIM1#

main71075-2B630-04iST182..LB199008-199108

DARK BLUE,TRIM8#

main71075-2B670-03iAT180198910-199108

SHADOW GRAY,TRIM1#

main71075-2B670-04iAT180198910-199108

DARK BLUE,TRIM8#

main71075-2B671-B0iAT180199108-199311

SHADOW GRAY,TRIM1#

main71075-2B671-J0iAT180199108-199311

DARK BLUE,TRIM8#

main71075-2B760-03iST185199008-199108

SHADOW GRAY,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-2D520-03iAT180..CP198910-199108

SHADOW GRAY,TRIM1#

main71077-2D520-04iAT180..CP198910-199108

DARK BLUE,TRIM8#

main71077-2D521-B0iAT180..CP199108-199311

SHADOW GRAY,TRIM1#

main71077-2D521-J0iAT180..CP199108-199311

DARK BLUE,TRIM8#

main71077-2D610-03iST182..CVT199010-199109

SHADOW GRAY,TRIM1#

main71077-2D611-C1iST182..CVT199109-199311

BLACK,TRIM1#

main71077-2D780-03iST182..CVT199010-199109

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71077-2D780-03iST182..CVT199109-199311

W(LEATHER),SHADOW GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2B450-03iST182198910-199008

***,SHADOW GRAY,TRIM1#

main71460-2B450-04iST182198910-199008

***,DARK BLUE,TRIM8#

main71460-2B451-C1iST182..LB199108-199311

***,BLACK,TRIM1#

main71460-2B451-J0iST182..LB199108-199311

***,DARK BLUE,TRIM8#

main71460-2B460-03iST182..RHD198910-198911

***,SHADOW GRAY,TRIM1#

main71460-2B460-03iST182..RHD198910-199311

***,W(LEATHER),SHADOW GRAY,TRIM1#

main71460-2B460-04iST182..LHD198910-199311

***,W(LEATHER),DARK BLUE,TRIM8#

main71460-2B460-04iST182..RHD198910-198911

***,DARK BLUE,TRIM8#

main71460-2B490-03iST185198910-199311

***,W(LEATHER),SHADOW GRAY,TRIM1#

main71460-2B500-03iST185198910-199008

***,SHADOW GRAY,TRIM1#

main71460-2B501-C1iST185199108-199311

***,BLACK,TRIM1#

main71460-2B520-03iST182..CVT199010-199109

***,SHADOW GRAY,TRIM1#

main71460-2B521-C1iST182..CVT199109-199311

***,BLACK,TRIM1#

main71460-2B840-03iST185199008-199108

***,SHADOW GRAY,TRIM1#

main71460-2B890-03iAT180198910-199108

***,SHADOW GRAY,TRIM1#

main71460-2B890-04iAT180198910-199108

***,DARK BLUE,TRIM8#

main71460-2B891-B0iAT180199108-199311

***,SHADOW GRAY,TRIM1#

main71460-2B891-J0iAT180199108-199311

***,DARK BLUE,TRIM8#

main71560-2B010-03iST182..LB199008-199108

***,SHADOW GRAY,TRIM1#

main71560-2B010-04iST182..LB199008-199108

***,DARK BLUE,TRIM8#

main71560-2B050-03iST182..CVT199010-199311

***,W(LEATHER),SHADOW GRAY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-2D510-03iAT180..CP198910-199108

***,SHADOW GRAY,TRIM1#

main71480-2D510-04iAT180..CP198910-199108

***,DARK BLUE,TRIM8#

main71480-2D511-B0iAT180..CP199108-199311

***,SHADOW GRAY,TRIM1#

main71480-2D511-J0iAT180..CP199108-199311

***,DARK BLUE,TRIM8#

main71480-2D700-03iST182..CVT199010-199109

***,SHADOW GRAY,TRIM1#

main71480-2D701-C1iST182..CVT199109-199311

***,BLACK,TRIM1#

main71480-2G100-03iST182..CVT199010-199311

***,W(LEATHER),SHADOW GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-20500iAT180,ST182..CP,LB¥26,000198910-199311

main71611-20540iST182..CVT¥24,900199010-199311

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-20500iAT180..CP198910-199311

main71651-20660iST182..CVT¥12,000199010-199311

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20030iAT180,ST182..CP,LB¥790198910-199108

main72693-20031iAT180,ST182..CP,LB¥640199108-199311

main72693-20050iST182..CVT¥300199010-199309

sub72693-20060¥180

main72693-20060iST182..CVT¥180199309-199311

main72693-24010iST185¥680198910-199311

9011908160

main90119-08160¥160

10 parts on this diagram · 3 diagrams in section
