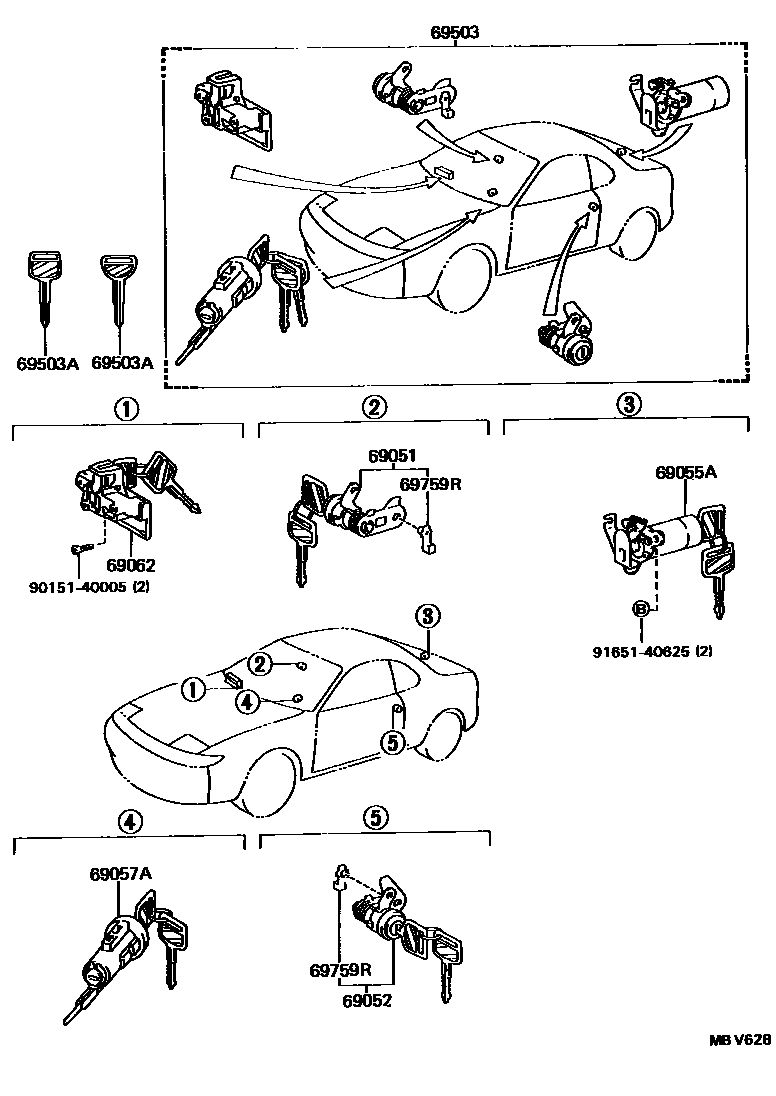

LOCK CYLINDER SET

0001 1 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20240iAT180,ST18#..LB198910-199311

sub69051-20270

main69051-20270iAT180,ST182..CP,CVT198910-199311

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20240iAT180,ST18#..LB198910-199311

sub69052-20270

main69052-20270iAT180,ST182..CP,CVT198910-199311

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-20440iAT180,ST182..CP,CVT198910-199311

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20230iAT180,ST18#..LB198910-199311

sub69057-20260

main69057-20260iAT180,ST182..CP,CVT198910-199311

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20170iAT180,ST18#..LB198910-199311

sub69056-20200

main69056-20200iAT180,ST182..CP,CVT198910-199311

69503CYLINDER SET, LOCK

main69005-2B010iAT180,ST18#..LB198910-199311

main69005-2B040iAT180,ST182..CP,CVT198910-199311

69503AKEY, BLANK

main90999-00135iST182..CVT199108-199202

SUB KEY,W(*68),SUB KET,W(*69)

sub90999-00150

main90999-00136iAT180..CP198910-199108

SUB KEY,W(*69)

sub90999-00135

main90999-00144iAT180,ST18#..LB198910-199311

MASTER KEY

main90999-00146iAT180,ST18#..LB198910-199311

MASTER KEY,W(*68)

main90999-00149iAT180,ST182..CP,CVT198910-199311

MASTER KEY,W(*68)

sub90999-00175

main90999-00150iAT180..CP199108-199311

SUB KEY,W(*68)

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iAT180,ST182..CP,CVT198910-199311

ORANGE

main69759-22090iAT180,ST182..CP,CVT198910-199311

PINK

main69759-30040iAT180,ST18#..LB198910-199108

BEIGE

main69759-30050iAT180,ST18#..LB198910-199108

YELLOWISH GREEN

9015140005

main90151-40005

9165140625

main91651-40625

10 parts on this diagram · 2 diagrams in section
