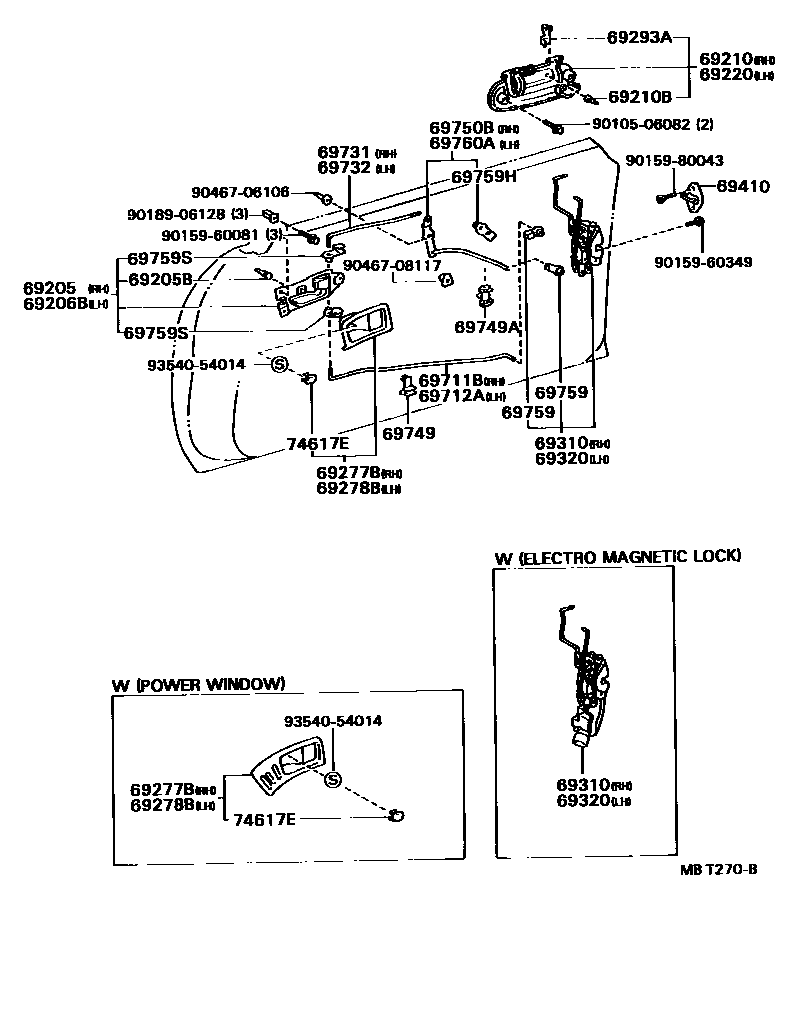

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20090iAT180,ST18#198910-199311

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018×2iAT180,ST18#198910-199311

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20060iAT180,ST18#198910-199311

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20210-01iST18#..LB198910-199109

BLACK,202

main69210-20210-02iST18#199109-199311

SUPER RED 2,3E5

main69210-20210-03iST18#..LB199008-199108

BLUISH SILVER M.,181

main69210-20210-08iST18#..LB198910-199109

SUPER WHITE 2,040

main69210-20210-12iST18#..LB198910-199108

RED MICA,3H4

main69210-20210-13iST18#..LB198910-199311

BLUISH GRAY M.,182

main69210-20210-24iST18#..LB198910-199108

BLUE MICA M.,8G7

main69210-20210-D0iST182..LB199108-199311

WINE RED M,3J8

main69210-20210-H0iST18#..LB199108-199311

MEDIUM TURQUOISE M.,749

main69210-20210-J0iST182..LB199108-199311

DARK BLUE M.M,8J1

main69210-20240iAT180198910-199311

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iAT180,ST18#..CP,LB198910-199109

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20210-01iST18#199109-199311

BLACK,202

main69220-20210-02iST18#199109-199311

SUPER RED 2,3E5

main69220-20210-03iST18#..LB199008-199108

BLUISH SILVER M.,181

main69220-20210-08iST18#..LB198910-199109

SUPER WHITE 2,040

main69220-20210-12iST18#..LB198910-199108

RED MICA,3H4

main69220-20210-13iST18#..LB198910-199311

BLUISH GRAY M.,182

main69220-20210-24iST18#..LB198910-199108

BLUE MACA M.,8G7

main69220-20210-D0iST182..LB199108-199311

WINE RED M,3J8

main69220-20210-H0iST18#..LB199108-199311

MEDIUM TURQUOISE M.,749

main69220-20210-J0iST182..LB199108-199311

DARK BLUE M.M,8J1

main69220-20240iAT180198910-199311

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-20110-01iST182..CVT198910-199109

BLACK,TRIM1#

main69277-20120-01iST182..RHD..LB199108-199211

BLACK,TRIM1#

main69277-20130-01iAT180,ST182..LHD..(CP,LB)199208-199211

W(POWER WINDOW),BLACK,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-20110-01iAT180,ST182..CP,LB198910-199108

BLACK,TRIM1#,8#

main69278-20120-01iST182..RHD..CVT198910-199109

W(POWER WINDOW),BLACK,TRIM1#

main69278-20130-01iAT180,ST182..LHD..(CP,LB)199208-199211

W(POWER WINDOW),BLACK,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT180,ST18#199109-199311

NATURAL

main69293-12040iAT180,ST18#199109-199311

YELLOW

69310LOCK ASSY, FRONT DOOR, RH

main69030-20300iST182..RHD198910-199208

W(POWER WINDOW)

main69030-20310iST185..LHD198910-199311

main69310-20590iAT180,ST182198910-199208

69320LOCK ASSY, FRONT DOOR, LH

main69040-20270iST182..RHD198910-199208

W(POWER WINDOW)

main69040-20280iAT180,ST182..LHD199208-199311

W(POWER WINDOW)

main69320-20580iAT180,ST182198910-199208

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20080×2iAT180,ST18#199304-199311

main69410-20090×2iAT180,ST18#198910-199108

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20150iAT180,ST18#198910-199311

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20150iAT180,ST18#198910-199311

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-20050iAT180,ST18#198910-199311

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-20050iAT180,ST18#198910-199311

69749CLAMP, FRONT DOOR LOCK LINK

main69749-50010×2iAT180,ST18#198910-199311

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20040iAT180,ST18#..CP,LB199108-199109

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-20020iAT180,ST18#198910-199311

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24080×2iAT180,ST18#198910-199311

YELL0W

main69759-24090×2iAT180,ST18#198910-199311

BROWN

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24030×2iAT180,ST18#198910-199108

RED

main69759-24040×2iAT180,ST18#198910-199108

PINK

main69759-24080iAT180,ST18#199109-199311

YELLOW

main69759-24090iAT180,ST18#..CP,LB199108-199109

BROWN

main69759-50040×2iAT180,ST18#..CP,LB199108-199109

NATURAL

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iAT180,ST18#198910-199311

PINK

main69759-24070×2iAT180,ST18#198910-199311

YELLOW

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-20020iAT180,ST18#198910-199311

74617EPLAG, DOOR INSIDE HANDLE BEZEL

main74617-20020×2iAT180,ST18#198910-199311

9010506082

main90105-06082

9015960081

main90159-60081

9015960349

main90159-60349

9015980043

main90159-80043

9018906128

main90189-06128

9046706106

main90467-06106

9046708117

main90467-08117

9354054014

main93540-54014

32 parts on this diagram · 1 diagram in section
