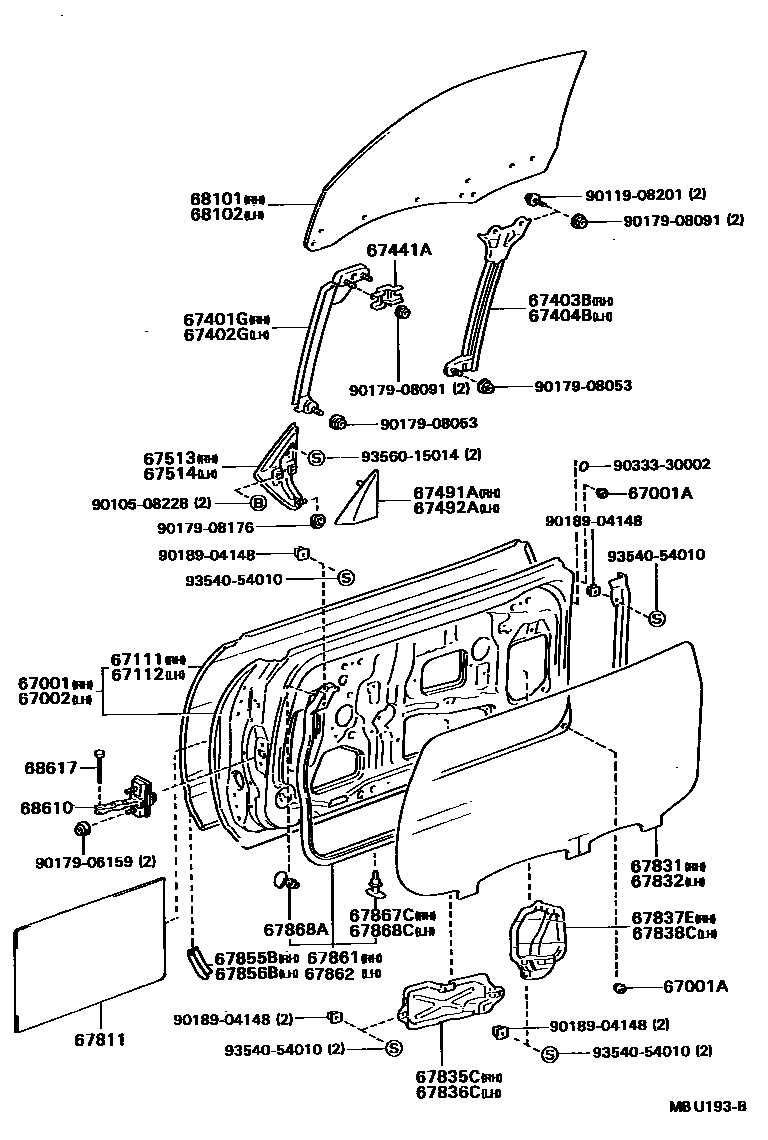

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20820iAT180,ST18#198910-199311

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×4iAT180,ST18#198910-199311

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20780iAT180,ST18#198910-199311

67111PANEL, FRONT DOOR, OUTER RH

main67111-20300iAT180,ST18#198910-199311

67112PANEL, FRONT DOOR, OUTER LH

main67112-20320iAT180,ST18#198910-199311

67401GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-20190iAT180,ST18#198910-199311

67402GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-20180iAT180,ST18#198910-199311

67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-20080iAT180,ST18#198910-199311

67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH

main67404-20080iAT180,ST18#198910-199311

67441APLATE, FRONT DOOR FRONT GUIDE, UPPER

main67441-20060×2iAT180,ST18#199001-199311

main67441-32020iAT180,ST18#198910-199001

sub67441-32030

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20190iAT180,ST18#198910-199311

main67491-20220iST182..CVT199108-199109

W(SPEAKER)

main67491-20230iST182..CVT199109-199311

W(SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20210iAT180,ST18#198910-199311

main67492-20240iST18#199008-199012

W(SPEAKER)

main67492-20250iST182..CVT199109-199311

W(SPEAKER)

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-20060iAT180,ST18#198910-199008

main67513-20061iAT180,ST18#199008-199311

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-20060iAT180,ST18#198910-199008

main67514-20061iAT180,ST18#199008-199311

67811PAD, FRONT DOOR SILENCER

main67812-12010×2iAT180,ST18#198910-199311

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20360iAT180,ST18#198910-199311

main67831-20370iST18#..LB199108-199109

W(SPEAKER)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20360iAT180,ST18#198910-199311

main67831-20370iST18#..LB199108-199109

W(SPEAKER)

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-20030iST18#198910-199311

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-20070iST18#198910-199311

67837ECOVER, FRONT DOOR SERVICE HOLE, NO.4 RH

main67837-20080iST18#198910-199311

67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67838-20070iST18#198910-199311

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-20020iAT180,ST18#198910-199311

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67855-20020iAT180,ST18#198910-199311

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20320iAT180,ST18#..CP,LB198910-199311

main67861-20340iST182..CVT199010-199311

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20320iAT180,ST18#..CP,LB198910-199311

main67862-20340iST182..CVT199010-199311

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-20030×19iST182..CVT199010-199311

main67868-20130×19iAT180,ST18#..CP,LB198910-199311

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-20030×4iAT180,ST18#198910-199311

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-20030×19iST182..CVT199010-199311

main67868-20130×19iAT180,ST18#..CP,LB198910-199311

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20550iAT180,ST18#198910-199311

*TT,T=5.0,BLUE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20470iAT180,ST18#198910-199311

*TT,T=5.0,BLUE

68610CHECK ASSY, FRONT DOOR

main68610-20070×2iAT180,ST18#198910-199108

main68610-20090iAT180,ST18#..CP,LB199108-199109

RH

main68620-20010iAT180,ST18#..CP,LB199108-199109

LH

68617PIN, FRONT DOOR CHECK

main68617-20020×2iAT180,ST18#198910-199311

9010508228

main90105-08228

9011908201

main90119-08201

9017906159

main90179-06159

9017908053

main90179-08053

9017908091

main90179-08091

9017908176

main90179-08176

9018904148

main90189-04148

9033330002

main90333-30002

9354054010

main93540-54010

9356015014

main93560-15014

42 parts on this diagram · 2 diagrams in section
