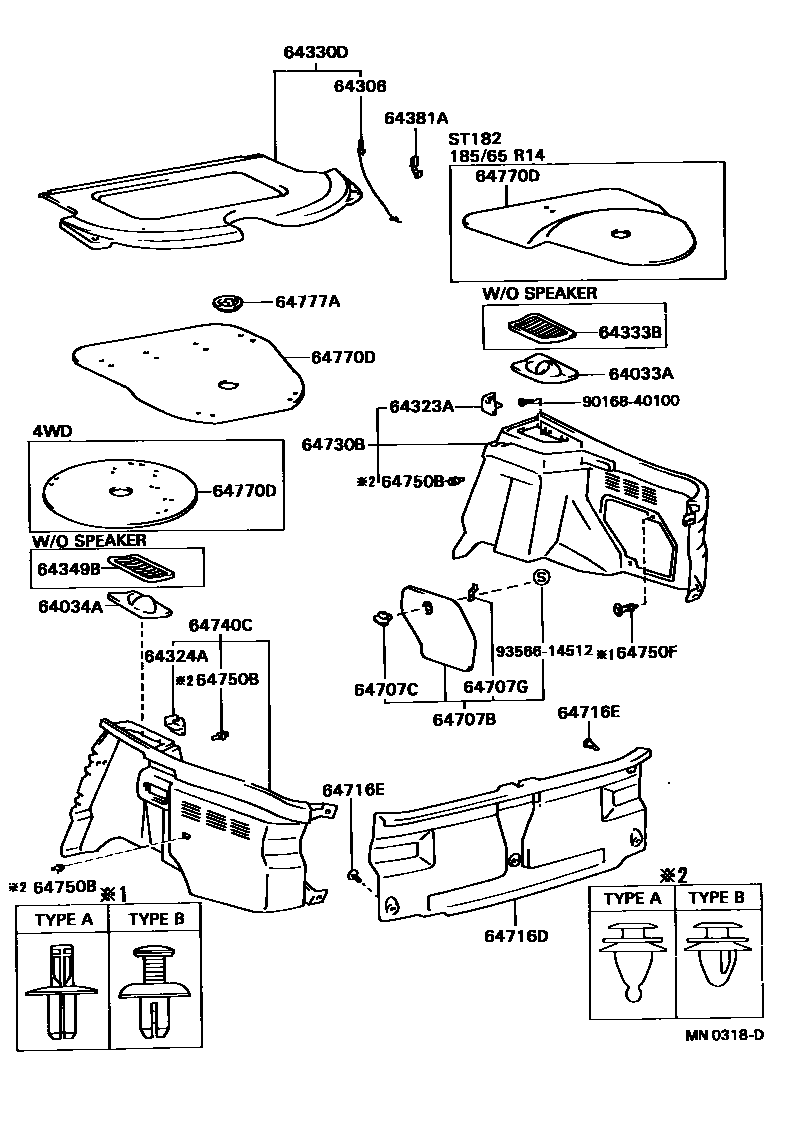

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64333BCOVER, PACKAGE TRAY TRIM SIDE, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
64349BCOVER, PACKAGE TRAY TRIM SIDE, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
64381AHANGER, PACKAGE TRAY TRIM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
64707CKNOB, JACK COVER
64707GSTOPPER, JACK COVER
64716DCOVER, DECK TRIM, REAR
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
64716ECLIP(FOR DECK TRIM REAR COVER)
GRAY,TRIM1#,LOWER
DARK BLUE,TRIM8#,LOWER
64730BPANEL ASSY, DECK TRIM SIDE, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
TYPE B
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64770DCOVER ASSY, SPARE WHEEL
W(SPARE TIRE=185/70R13)
64777ACLAMP, SPARE WHEEL COVER
9016840100
main90168-40100
9356614512
main93566-14512
22 parts on this diagram · 1 diagram in section
