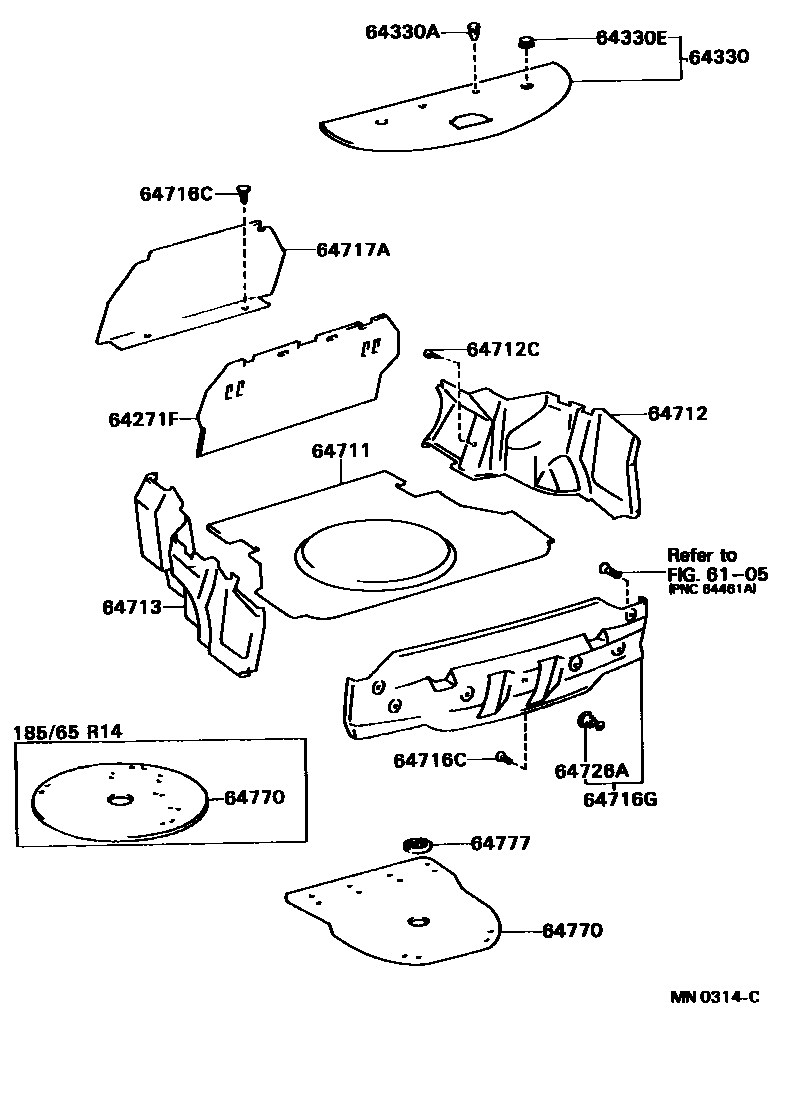

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

6105

64271FTRIM, ROOM PARTITION

main64271-20230iAT180..CP198910-199311

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B220-03iAT180..CP198910-199311

SHADOW GRAY,TRIM1#

sub64330-2B220

main64330-2B220-04iAT180..CP198910-199311

DARK BLUE,TRIM8#

sub64330-2B220

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-13iAT180..CP198910-199108

SHADOW GRAY,TRIM1#

sub90467-08037

main90467-08037-24iAT180..CP198910-199108

DARK BLUE,TRIM8#

sub90467-08037

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-13iAT180..CP198910-199009

GRAY,TRIM1#

sub90950-01436

sub64353-50010

main90950-01436-B1iAT180..CP199009-199108

SHADOW GRAY,TRIM1#

sub90950-01436

sub64353-50010

main90950-01436-J0iAT180..CP198910-199108

DARK BLUE,TRIM8#

sub90950-01436

sub64353-50010

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20630-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

main64711-20650-03iAT180..CP198910-199108

185/70R13 85H,GRAY,TRIM1#,8#

main64711-20650-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

main64711-20780-01iST182..CVT199010-199311

BLACK,TRIM1#

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20170-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

main64712-20170-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

main64712-20180-01iST182..LHD..CVT199010-199311

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-06077iST182..LHD..CVT199010-199311

main90467-08056-23iAT180..CP198910-199108

GRAY,TRIM1#,8#

sub90467-08056

main90467-08056-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

sub90467-08056

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20170-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

main64713-20170-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

main64713-20180-01iST182..LHD..CVT199010-199311

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07053-01iAT180..CP199108-199311

BLACK,TRIM1#,8#

sub90467-07053

main90467-07053-01iST182..LHD..CVT..W199010-199311

BLACK,TRIM1#

sub90467-07053

main90467-07053-23iAT180..CP198910-199108

GRAY,TRIM1#,8#

sub90467-07053

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20320-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

main64716-20320-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

main64716-20440-01iST182..CVT199010-199311

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20250-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

main64717-20250-C0iAT180..CP199108-199311

BLACK,TRIM1#,8#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-01iST182..LHD..CVT..W199010-199311

BLACK,TRIM1#

sub64726-20020

main64726-20020-01iAT180..CP199108-199311

BLACK,TRIM1#,8#

sub64726-20020

main64726-20020-03iAT180..CP198910-199108

GRAY,TRIM1#,8#

sub64726-20020

64770COVER ASSY, SPARE WHEEL

main64770-20080iAT180..CP198910-199108

main64770-20090iST182..CVT199010-199311

main64770-20090iAT180..CP198910-199108

W(SPARE TIRE=185/70R13)

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT180..CP198910-199311

15 parts on this diagram · 2 diagrams in section
