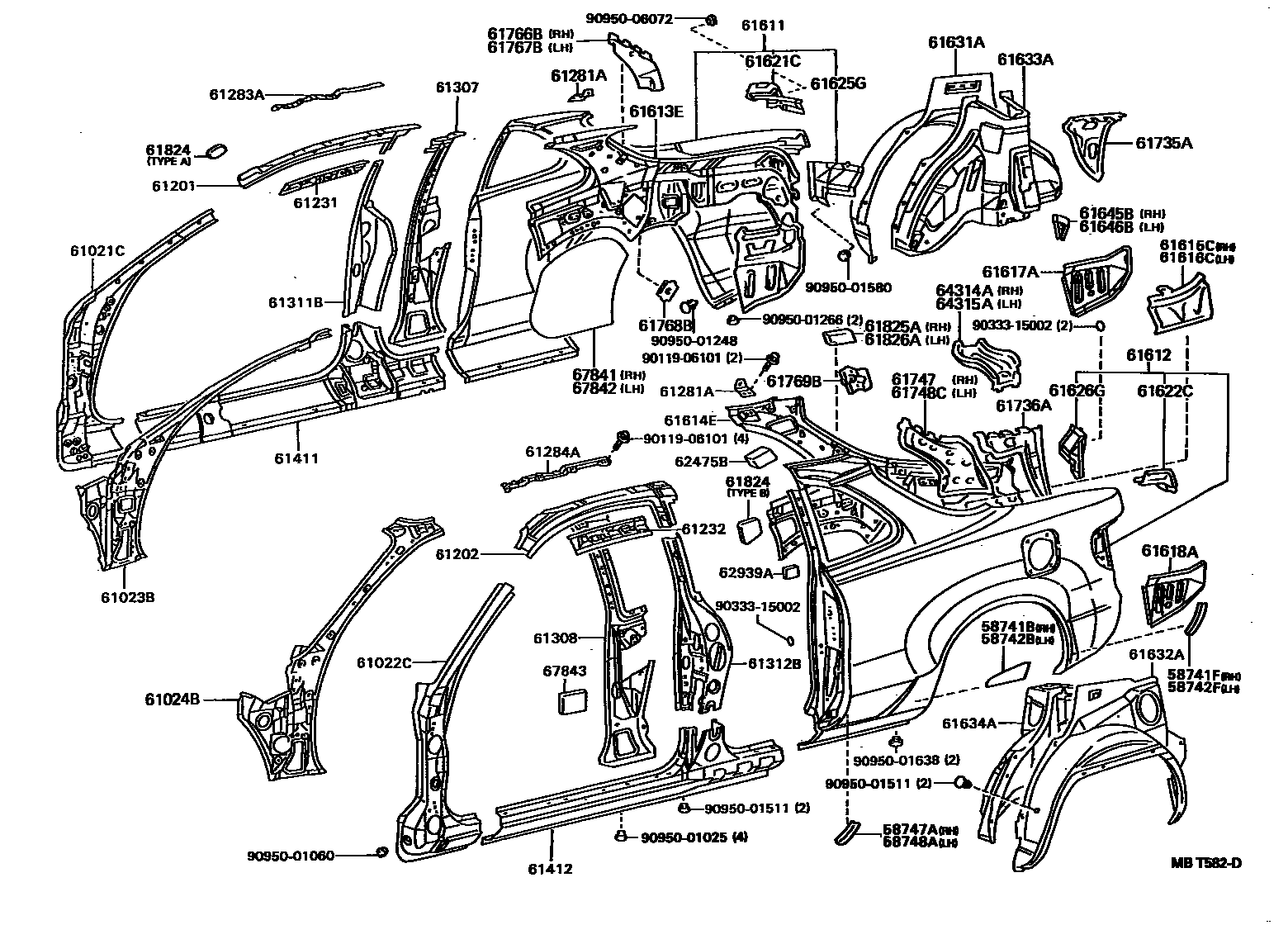

SIDE MEMBER

0001 1 0002 1 0003 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-20100iAT180,ST18#198910-199311

FRONT

58741FPROTECTOR, REAR WHEEL EXTENSION, RH

main58741-20060iAT180,ST18#..CP,LB198910-199311

58742BPROTECTOR, QUARTER PANEL, LH

main58742-20090iAT180,ST18#198910-199311

FRONT

58742FPROTECTOR, REAR WHEEL EXTENSION, LH

main58741-20060iAT180,ST18#..CP,LB198910-199311

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-20010iAT180,ST18#198910-199311

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-20010iAT180,ST18#198910-199311

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-20510iST18#..RHD..LB198910-199311

main61021-20530iAT180,ST18#..LHD..(CP,LB)198910-199311

main61021-20550iST182..RHD..CVT199010-199109

main61021-20600iST182..LHD..CVT199010-199311

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-20440iST18#..RHD..LB198910-199311

main61022-20450iAT180,ST18#..LHD..(CP,LB)198910-199311

main61022-20460iST182..CVT199010-199311

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-20060iST18#..RHD..LB198910-199311

main61023-20070iAT180,ST18#..LHD..(CP,LB)198910-199311

main61023-20080iST182..LHD..CVT199010-199311

main61023-20090iST182..RHD..CVT199010-199109

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-20070iST18#..RHD..LB198910-199311

main61024-20080iAT180,ST18#..LHD..(CP,LB)198910-199311

main61024-20090iST182..LHD..CVT199010-199311

main61024-20100iST182..RHD..CVT199010-199109

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-20070iAT180,ST18#..CP,LB198910-199311

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-20070iAT180,ST18#..CP,LB198910-199311

61231RAIL, ROOF SIDE, INNER RH

main61231-20310iAT180,ST18#198910-199311

main61231-20320iAT180,ST18#..CP,LB198910-199311

W(SUN ROOF)

61232RAIL, ROOF SIDE, INNER LH

main61232-20300iAT180,ST18#198910-199311

main61232-20310iAT180,ST18#..CP,LB198910-199311

W(SUN ROOF)

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-20040×2iAT180,ST18#..CP,LB198910-199311

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-20040iAT180..CP198910-199311

main61283-20050iAT180,ST18#..LB198910-199311

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-20040iAT180..CP198910-199311

main61284-20050iAT180,ST18#..LB198910-199311

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-20900iAT180,ST18#..CP,LB198910-199311

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-20900iAT180,ST18#..CP,LB198910-199311

61311BPILLAR, CENTER BODY, OUTER RH

main61301-20330iST182..CVT199010-199311

main61311-20200iAT180,ST18#..CP,LB198910-199311

61312BPILLAR, CENTER BODY, OUTER LH

main61302-20440iST182..CVT199010-199311

main61312-20270iAT180,ST18#..CP,LB198910-199311

61411PANEL, ROCKER, OUTER RH

main61401-20300iST182..CVT199010-199311

main61401-20320iAT180,ST182..(CP,LB)..NOB198910-199311

main61401-20330iST182..WIB199008-199311

main61401-20360iST185198910-199311

61412PANEL, ROCKER, OUTER LH

main61402-20300iST182..CVT199010-199311

main61402-20320iAT180,ST182..(CP,LB)..NOB198910-199311

main61402-20330iST182..WIB199008-199311

main61402-20360iST185198910-199311

61611PANEL, QUARTER, RH

main61601-2B510iAT180..CP198910-199311

main61601-2B520iAT180..CP199008-199311

W(REAR SPOILER)

main61601-2B530iAT180,ST182..LB..NOB198910-199311

main61601-2B540iST182..LB..NOB198910-199311

W(REAR SPOILER)

main61601-2B570iST185..LHD198910-199008

NORWAY SPEC

main61601-2B580iST18#..WIB198910-199311

main61601-2B660iST182..CVT199010-199311

61612PANEL, QUARTER, LH

main61602-2B620iAT180..CP198910-199311

W(ANTENA)

main61602-2B630iAT180..CP199008-199108

W(REAR SPOILER & ANTENA)

main61602-2B640iST182..G198911-199008

NORWAY SPEC & W(REAR SPOILER)

main61602-2B650iAT180,ST182..LHD..LB..NOB198911-199311

W(ANTENA)

main61602-2B660iST182..LB..NOB198910-199311

W(REAR SPOILER)

main61602-2B670iST182..LB..NOB198910-199311

W(REAR SPOILER & ANTENA)

main61602-2B800iAT180..CP198910-199311

main61602-2B850iST185..LHD198910-199008

NORWAY SPEC

main61602-2B860iST182..WIB199008-199311

main61602-2B870iST182..WIB..G199108-199311

W(ANTENA)

main61602-2B890iST182..CVT199010-199311

61613EPANEL, QUARTER, INNER RH

main61613-20100iAT180,ST182..CP,CVT198910-199311

main61703-20160iAT180,ST182..LB..NOB198910-199311

main61703-20200iST182..WIB199008-199311

main61703-20240iST185198910-199311

61614EPANEL, QUARTER, INNER LH

main61614-20100iAT180,ST182..CP,CVT198910-199311

main61704-20150iAT180,ST182..LB..NOB198910-199311

main61704-20190iST182..WIB199008-199311

main61704-20230iST185198910-199311

61615CPANEL, QUARTER INNER, CENTER RH

main61615-20080iAT180,ST182..CP,CVT198910-199311

61616CPANEL, QUARTER INNER, CENTER LH

main61616-20080iAT180,ST182..CP,CVT198910-199311

61617APANEL, QUARTER INNER, REAR RH

main61617-20100iAT180,ST182..CP,CVT198910-199311

61618APANEL, QUARTER, INNER REAR LH

main61618-20090iAT180,ST182..CP,CVT198910-199311

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20140iAT180,ST182..CP,CVT198910-199311

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20140iAT180,ST182..CP,CVT198910-199311

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-20090iAT180,ST182..CP,CVT198910-199311

main61625-20100iAT180,ST18#..LB198910-199311

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-20090iAT180,ST182..CP,CVT198910-199311

main61626-20100iAT180,ST18#..LB198910-199311

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-20901iAT180,ST182..NOB198910-199311

main61605-20902iST18#..WIB198910-199311

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-20901iAT180,ST182..NOB198910-199311

main61606-20902iST182..WIB199008-199311

main61606-20904iST185198910-199311

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20350iAT180,ST182..LB198910-199311

main61607-20360iST185..TBO4W198910-199311

main61607-20410iST185199108-199202

main61607-20915iAT180..CP198910-199311

main61607-20921iST182..CVT199010-199311

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20320iAT180,ST182..LB198910-199311

main61608-20330iST185..TBO4W198910-199311

main61608-20490iST185199108-199202

sub61608-20480

main61608-20910iAT180..CP198910-199311

main61608-20916iST182..CVT199010-199311

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20080iAT180,ST182198910-199311

main61645-20090iST185198910-199311

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20080iAT180,ST182198910-199311

main61646-20090iST185198910-199311

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20150iAT180,ST182..CP,CVT198910-199311

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20140iAT180,ST182..CP,CVT198910-199311

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-20110iAT180,ST182..CP,CVT198910-199311

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-20100iAT180,ST182..CP,CVT198910-199311

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-20110iAT180,ST182..CP,CVT198910-199311

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-20110iAT180,ST182..CP,CVT198910-199311

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-32010iAT180,ST182..CP,CVT198910-199311

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61768-32010iAT180,ST182..CP,CVT198910-199311

61824PLATE, NOISE CONTROL, NO.1

main61824-20120×2iAT180,ST18#..CP,LB198910-199311

TYPE A

main61824-20130×2iAT180,ST18#..CP,LB198910-199311

TYPE B

61825APLATE, NOISE CONTROL, NO.2

main61825-20120iAT180,ST18#..LB198910-199307

main61825-20130iAT180..CP198910-199307

61826APLATE, NOISE CONTROL, NO.3

main61826-20080iAT180,ST18#..LB198910-199307

main61826-20090iAT180..CP198910-199307

62475BSEAL, ROOF SIDE, INNER

main62475-20240×2iAT180,ST18#..CP,LB198910-199311

sub61824-12120

62939ASILENCER, QUARTER VENT

main62939-20030×2iST182..LHD..WIB199108-199202

main62939-23010×2iAT180,ST18#..(CP,LB)..(GTI,STI,TBO4W)199108-199311

W/O(SPEAKER)

sub61824-12110

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-20140iAT180,ST182..CP,CVT198910-199109

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-20130iAT180..CP199109-199311

67841COVER, QUARTER SERVICE HOLE, NO.1 RH

main67841-20230iAT180,ST182..CP,LB198910-199311

67842COVER, QUARTER SERVICE HOLE, NO.1 LH

main67842-20150iAT180,ST182..CP,LB198910-199311

67843COVER, QUARTER SERVICE HOLE, NO.2

main67843-20040×2iAT180,ST18#..CP,LB198910-199311

9011906101

main90119-06101

9033315002

main90333-15002

9095001025

main90950-01025

9095001060

main90950-01060

9095001248

main90950-01248

9095001266

main90950-01266

9095001511

main90950-01511

9095001580

main90950-01580

9095001638

main90950-01638

9095006072

main90950-06072

69 parts on this diagram · 3 diagrams in section
