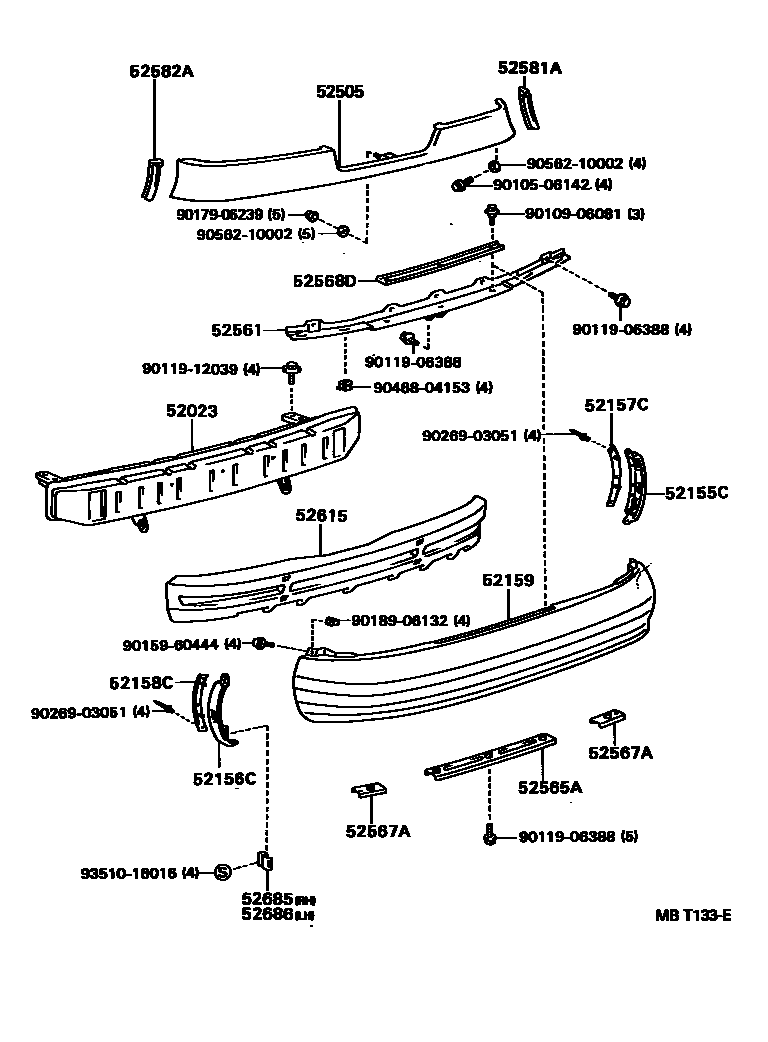

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20280iAT180,ST182..LB198910-199311

main52023-20290iAT180,ST182..CP,CVT198910-199311

main52023-20310iST185..TBO4W198910-199311

main52023-20320iST185199108-199202

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20220iAT180,ST182..LB..NOB198910-199311

main52155-20230iAT180,ST182..CP,CVT198910-199311

main52155-20240iST18#..WIB198910-199311

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-20150iAT180,ST182..LB..NOB198910-199311

main52156-20160iAT180,ST182..CP,CVT198910-199311

main52156-20170iST18#..WIB198910-199311

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-20090iAT180,ST182..LB..NOB198910-199311

main52157-20100iAT180,ST182..CP,CVT198910-199311

main52157-20110iST18#..WIB198910-199311

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-20060iAT180,ST182..LB..NOB198910-199311

main52158-20070iAT180,ST182..CP,CVT198910-199311

main52158-20080iST18#..WIB198910-199311

52159COVER, REAR BUMPER

main52159-20919iAT180,ST182..LB..NOB198910-199311

main52159-20920iAT180,ST182..CP,CVT198910-199311

main52159-20921iST18#..WIB198910-199311

52505FILLER SUB-ASSY, REAR BUMPER

main52505-20020iAT180,ST18#..LHD..LB..G198910-199311

SWITZERLAND SPEC

main52505-20030iAT180,ST18#..LB198910-199311

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20150iAT180,ST18#..LB198910-199311

main52561-20160iAT180,ST182..CP,CVT198910-199311

52565ARETAINER, REAR BUMPER, LOWER

main52565-20140iAT180,ST18#198910-199311

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52567-20030iAT180,ST18#198910-199311

52568DRETAINER, REAR BUMPER, UPPER NO.2

main52568-20020iAT180,ST18#198910-199311

52581APROTECTOR, REAR BUMPER FILLER

main52581-20020iAT180,ST182..CP,CVT198910-199311

main52581-20030iAT180,ST18#..LB198910-199311

52582APROTECTOR, REAR BUMPER FILLER, LH

main52581-20030iAT180,ST18#..LB198910-199311

52615ABSORBER, REAR BUMPER ENERGY

main52615-20130iAT180,ST182..LB..NOB198910-199311

main52615-20140iAT180,ST182..CP,CVT198910-199311

main52615-20150iST18#..WIB198910-199311

52685SUPPORT, REAR BUMPER SIDE, NO.3 RH

main52685-20010iAT180,ST18#198910-199311

52686SUPPORT, REAR BUMPER SIDE, NO.3 LH

main52685-20010iAT180,ST18#198910-199311

9010506142

main90105-06142

9010906081

main90109-06081

9011906388

main90119-06388

9011912039

main90119-12039

9015960444

main90159-60444

9017906239

main90179-06239

9018906132

main90189-06132

9026903051

main90269-03051

9046804153

main90468-04153

9056210002

main90562-10002

9351016016

main93510-16016

27 parts on this diagram · 2 diagrams in section
