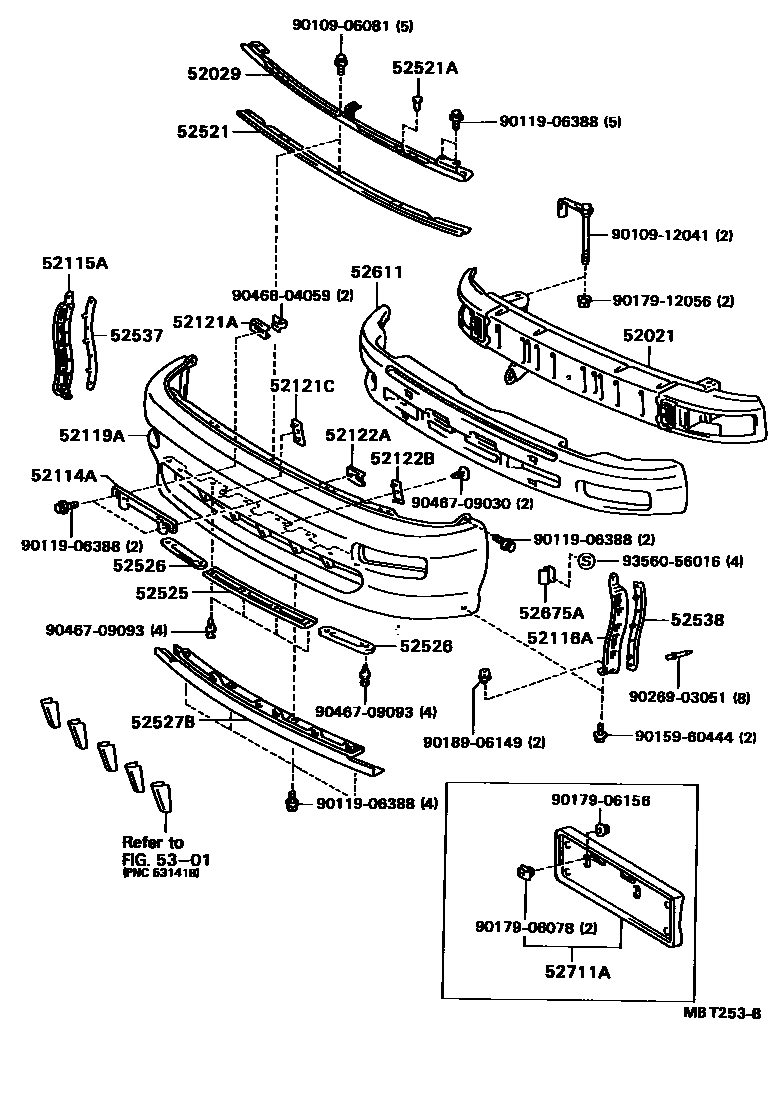

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0006 1 0007 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20180iAT180,ST18#198910-199101

sub52021-20181

main52021-20181iAT180,ST18#..GTI,STI,TBO4W199101-199311

main52021-20190iAT180,ST182..G198910-199101

*FRG

sub52021-20191

main52021-20191iAT180,ST182..G199101-199109

*FRG

main52021-20200iST185..LHD198910-199101

*FRG

sub52021-20201

main52021-20201iST18#..LHD..WIB..(GTI,TBO4W)199101-199311

*FRG

main52021-20210iST185199108-199202

main52021-20220iAT180,ST182..LHD..(CVT,LB)..NOB..G199108-199311

*FRG

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-20010iAT180,ST18#..GTI,STI,TBO4W198910-199311

main52029-20020iST185199108-199202

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-20080iAT180,ST18#..GTI,STI,TBO4W198910-199311

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20260iAT180,ST18#198910-199311

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20200iAT180,ST18#198910-199311

52119ACOVER, FRONT BUMPER

main52119-20913iAT180,ST182198910-199109

main52119-20915iAT180,ST182198910-199109

W(HEAD LAMP CLEANER)

main52119-20916iST185198910-199311

main52119-20918iST185198910-199311

W(HEAD LAMP CLEANER)

main52119-20922iAT180,ST182..G198910-199109

*FRG

main52119-20923iAT180,ST182..G198910-199109

*FRG OR W(HEAD LAMP CLEANER)

main52119-20924iST185..LHD198910-199311

*FRG

main52119-20925iST185..LHD198910-199311

*FRG OR W(HEAD LAMP CLEANER)

main52119-20926iST185199108-199202

main52119-20928iST185199108-199202

W(HEAD LAMP CLEANER)

main52119-20929iST185..LHD199108-199202

*FRG

main52119-20929iST185..LHD199108-199202

UNITED KINGDOM SPEC

main52119-20930iST185..LHD199108-199202

*FRG OR W(HEAD LAMP CLEANER)

main52119-20930iST185..LHD199108-199202

UNITED KINGDOM SPEC & W(HEAD LAMP CLEANER)

main52119-20932iAT180,ST182..(CP,LB)..NOB199108-199311

W(HEAD LAMP CLEANER)

main52119-20933iAT180,ST182..LHD..(CVT,LB)..NOB..G199108-199311

*FRG

main52119-20934iAT180,ST182..LHD..LB..NOB..G199108-199311

*FRG OR W(HEAD LAMP CLEANER)

main52119-20935iAT180,ST182..(CP,LB)..NOB199108-199311

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-16030iAT180,ST18#198910-198912

sub52121-20110

main52121-20110iAT180,ST18#..GTI,STI,TBO4W198912-199311

52121CBRACKET, FRONT LICENSE PLATE MOUNTING, NO.2

main52122-20060iAT180,ST18#..LHD..G198910-199109

*FRG

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52121-16030iAT180,ST18#198910-198912

sub52121-20110

main52121-20110iAT180,ST18#..GTI,STI,TBO4W198912-199311

52122BBRACKET, FRONT LICENSE PLATE MOUNTING, NO.2

main52122-20060iAT180,ST18#..LHD..G198910-199311

*FRG

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20110iAT180,ST18#..GTI,STI,TBO4W198910-199311

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-09029iAT180,ST18#198910-199004

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-20090iAT180,ST18#..GTI,STI,TBO4W198910-199311

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-20060iST182..CVT198910-199109

main52526-20070iST185198910-199311

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-20040iAT180,ST182198910-199311

main52527-20050iST185198910-199311

52537RETAINER, FRONT BUMPER END, RH

main52537-20040iAT180,ST18#198910-199311

52538RETAINER, FRONT BUMPER END, LH

main52538-20040iAT180,ST18#198910-199311

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20110iAT180,ST18#..GTI,STI,TBO4W198910-199311

52675ASUPPORT, FRONT BUMPER SIDE, NO.1

main52675-20010iAT180,ST18#198910-199311

52711AGARNISH, FRONT BUMPER

main52711-20210iAT180,ST18#..LHD..(CVT,LB)..(GTI,STI,TBO4W)..G198910-199311

*FRG

main52711-20230iST185..LHD199108-199202

UNITED KINGDOM SPEC

main52711-20230iST185..RHD199108-199202

*FRG

5301

9010906081

main90109-06081

9010912041

main90109-12041

9011906388

main90119-06388

9015960444

main90159-60444

9017906078

main90179-06078

9017906156

main90179-06156

9017912056

main90179-12056

9018906149

main90189-06149

9026903051

main90269-03051

9046709030

main90467-09030

9046709093

main90467-09093

9046804059

main90468-04059

9356056016

main93560-56016

34 parts on this diagram · 5 diagrams in section
