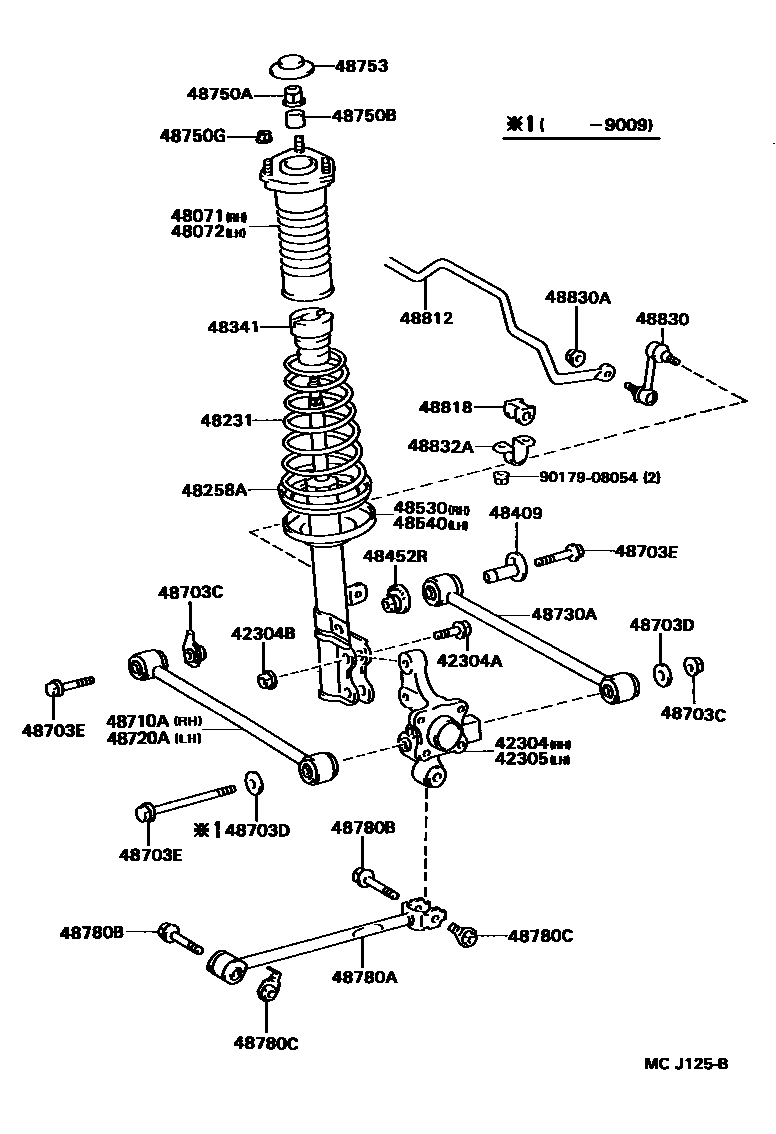

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20031iST185199108-199311

W/O(*66)

sub42304-20280

main42304-20040iST185198910-199311

sub42304-20290

main42304-20060iAT180198910-199311

main42304-20070iST182..NOB198910-199010

main42304-20080iAT180199108-199311

W(*66)

sub42304-20270

main42304-20090iST182199010-199311

W(*66)

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-15001×2iAT180,ST18#199010-199311

42304BNUT (FOR REAR AXLE CARRIER)

main90179-15001×2iAT180,ST18#199010-199311

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20031iST185199108-199311

W/O(*66)

sub42305-20280

main42305-20040iST185198910-199311

sub42305-20290

main42305-20060iAT180198910-199311

main42305-20070iST182..NOB198910-199010

main42305-20080iAT180199108-199311

W(*66)

sub42305-20270

main42305-20090iST182199010-199311

W(*66)

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-20080iAT180,ST18#199010-199311

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-20020iST185;AT180,ST182..NOB198910-199010

48231SPRING, COIL, REAR

main48231-2B350×2iST185199108-199311

main48231-2B450iAT180..CP198910-199208

main48231-2B460iAT180..CP199208-199311

main48231-2B470iAT180..LB198910-199311

sub48231-2G280

main48231-2B570iST185198910-199108

main48231-2B690iST182..LB..NOB198910-199108

main48231-2B750iST182..WIB199010-199108

main48231-2B770iST182..CVT199010-199109

main48231-2D060iST182..LB199108-199311

main48231-2D110iST182..CVT199109-199311

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-32010iAT180,ST18#199010-199311

48341BUMPER, REAR SPRING

main48341-20170iAT180,ST182..NOB198910-199010

main48341-20180iST185198910-199311

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-20030×2iST185198910-199311

main48409-20040×2iAT180,ST182198910-199311

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-20010×2iST185198910-199311

main48452-32020×2iAT180,ST182198910-199311

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20550iAT180,ST182..(CP,LB)..NOB198910-199108

sub48530-20530

main48530-20570iST182..WIB;ST182..CVT199010-199108

MARK 48530-20570

sub48530-20530

main48530-20600iST185198910-199005

MARK 48530-20600

main48530-20610iST185199005-199108

main48530-20640iAT180199108-199311

MARK 48530-20640

sub48530-20530

main48530-20670iST182199109-199311

MARK 48530-20670

main48530-20680iST185199108-199311

MARK 48530-20680

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20550iAT180,ST182..(CP,LB)..NOB198910-199108

sub48540-20530

main48540-20570iST182..WIB;ST182..CVT199010-199108

MARK 48540-20570

main48540-20600iST185198910-199005

MARK 48540-20600

main48540-20610iST185199005-199108

main48540-20640iAT180199108-199311

MARK 48540-20640

sub48540-20530

main48540-20670iST182..LB199108-199109

MARK 48540-20670

main48540-20680iST185199108-199311

MARK 48540-20680

48703CNUT(FOR REAR SUSPENSION ARM)

main90170-14006×4iST185198910-199311

main90179-12063×2iAT180,ST182198910-199311

BODY SIDE

main90179-14019×2iAT180,ST182198910-199311

CARRIER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90201-14017×4iAT180,ST182198910-199009

main90209-13005×2iST185198910-199311

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-12132×2iAT180,ST182198910-199311

*12-1.25PX80-20

main90105-14068×2iAT180,ST182198910-199009

*14-1.5PX258-19

main90109-12051×2iAT180,ST182198910-199311

*12-1.25PX71.5-24

main90119-12083×2iST185198910-199311

*12-1.25PX80-25

main90119-12126×2iST185198910-199311

*12-1.25PX94-35

main90119-14024×4iST185198910-199311

*14-1.50PX73-67

main90901-19001×2iAT180,ST182199009-199311

*14-1.50PX260-26

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20070iST185198910-199005

main48710-20090iST185199005-199108

main48710-20100iST182198910-199010

main48710-20110iAT180198910-199010

main48710-20130iAT180,ST182..CP,LB199108-199109

main48710-20180iST185199108-199311

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20070iST185198910-199005

main48710-20090iST185199005-199108

main48710-20100iAT180,ST182199010-199108

main48710-20110iAT180198910-199010

main48710-20130iAT180,ST182199109-199311

main48710-20180iST185199108-199311

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20050×2iST185198910-199108

main48730-20070iST182198910-199108

W(*66),RH

main48730-20080iST182..CVT199108-199109

W(*66),LH

main48730-20090×2iAT180198910-199010

main48730-20100iAT180,ST182199109-199311

W(*66),RH

main48730-20120iAT180,ST182..CP,LB199108-199109

W(*66),LH

main48730-20140×2iST185199108-199311

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015iST185;AT180,ST182..NOB198910-199010

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012iST185;AT180,ST182..NOB198910-199010

sub90387-15027

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6iAT180,ST18#198910-199311

48753COVER, REAR SUSPENSION SUPPORT

main48753-12010×2iAT180,ST18#..GTI,STI,TBO4W198910-199311

main48753-20030×2iST185199108-199202

48780AROD ASSY, STRUT, REAR

main48780-20020×2iAT180,ST182198910-199311

main48780-20030×2iST185198910-199108

main48780-20060×2iST185199108-199311

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iAT180,ST18#198910-199311

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAT180,ST18#198910-199311

CARRIER SIDE

main90179-12065×2iAT180,ST18#198910-199311

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-20460iAT180;ST182..CVT199005-199109

main48812-20560iAT180198910-199005

main48812-20580iST182..LB198910-199109

main48812-20640iST185198910-199311

48818BUSH, STABILIZER, REAR

main48818-20210×2iAT180199109-199311

main48818-20220×2iST182199109-199311

main48818-20240×2iAT180198910-199005

main48818-20250×2iST185198910-199311

48830LINK ASSY, REAR STABILIZER

main48830-20010×2iAT180,ST18#198910-199311

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iAT180,ST18#198910-199311

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20030×2iST185198910-199311

main48832-20070×2iAT180,ST182198910-199311

9017908054

main90179-08054

32 parts on this diagram · 2 diagrams in section
