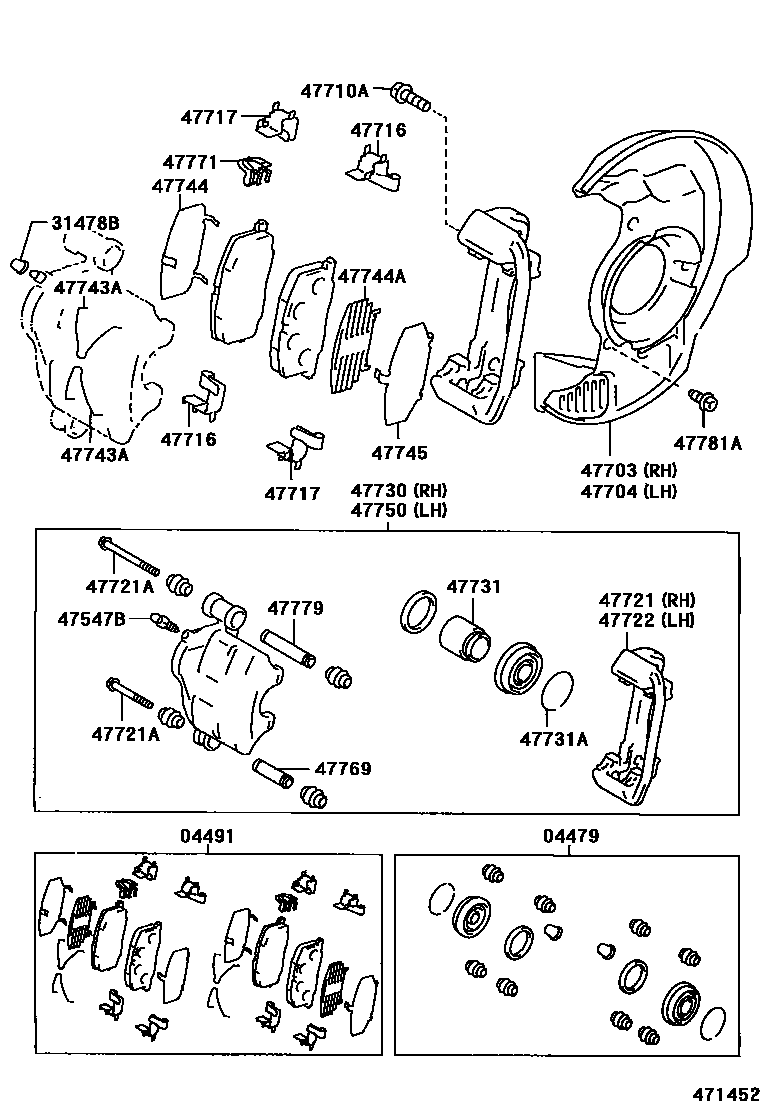

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20140iAT180198910-199108

main04479-20160iST18#198910-199311

main04479-32021iAT180199108-199311

04491PAD KIT, DISC BRAKE, FRONT

main04491-20620iAT180198910-199108

sub04465-20180

main04491-20670iST18#198910-199311

sub04465-20200

main04491-20680iST18#..RHD198910-199311

UNITED KINGDON SPEC

sub04465-20210

main04491-20680iST182..CVT198910-199311

*FRG OR SWITZERLAND SPEC

sub04465-20210

main04491-20820iAT180199108-199311

sub04465-20180

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT180,ST18#198910-199311

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iAT180199108-199311

main47547-20010iAT180,ST18#198910-199311

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-20080iAT180198910-199108

main47703-20090iST182198910-199311

main47703-20100iST185198910-199311

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-20080iAT180198910-199108

main47704-20090iST182198910-199311

main47704-20100iST185198910-199311

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iAT180,ST18#198910-199311

*12-1.25PX25.5-23

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iAT180198910-199311

main47716-32041iST18#198910-199311

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140iAT180198910-199311

main47717-32041iST18#198910-199311

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20260iAT180198910-199108

main47721-20300iST185198910-199311

main47721-20330iST182..CVT198910-199311

main47721-20360iAT180199108-199311

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAT180199108-199311

*9-1.25PX71-25

main90119-09004iAT180199108-199311

*9-1.25PX91-25

main90119-09007iAT180198910-199108

*9-1.25PX73-25

main90119-09008iAT180198910-199108

*9-1.25PX93-25

main90119-10572iST18#198910-199311

*10-1.25PX95.5-30

main90119-10573iST18#198910-199311

*10-1.25PX65.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20260iAT180198910-199108

main47721-20300iST185198910-199311

main47721-20330iST182198910-199311

main47721-20360iAT180199108-199311

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20370iAT180198910-199108

main47730-20410iST185198910-199311

main47730-20440iST182198910-199311

main47730-20470iAT180199108-199311

47731PISTON, FRONT DISC BRAKE

main47731-20160iAT180199108-199311

main47731-20170iAT180198910-199108

main47731-20180iST18#198910-199311

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAT180198910-199311

main90522-67002iST18#198910-199311

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-20040iST18#198910-199311

main47743-32020iAT180198910-199311

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050iAT180198910-199108

main47744-20060iAT180199108-199311

sub47744-32010

main47744-20110iST18#198910-199311

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-20050iAT180198910-199108

main47742-20070iST18#198910-199311

main47742-32040iAT180199108-199311

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-20050iAT180198910-199108

main47745-20070iST18#198910-199311

main47745-32040iAT180199108-199311

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20370iAT180198910-199108

main47750-20410iST185198910-199311

main47750-20440iST182198910-199311

main47750-20470iAT180199108-199311

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010iAT180198910-199108

main47769-20050iST18#198910-199311

main47769-32010iAT180199108-199311

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iAT180,ST18#198910-199311

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010iAT180198910-199108

main47779-20040iST18#198910-199311

main47779-32010iAT180199108-199311

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06192iAT180,ST18#198910-199311

sub90109-06134

24 parts on this diagram · 2 diagrams in section
