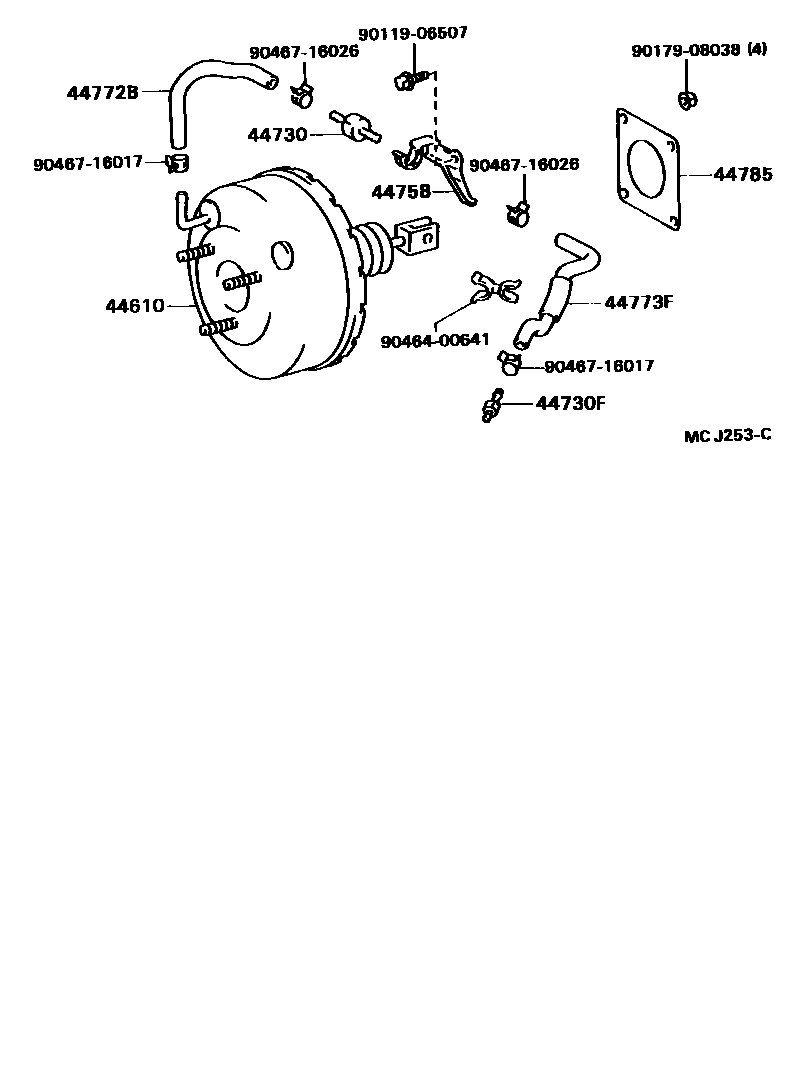

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-2B450iST182..RHD..MTM..W198910-199109

main44610-2B530iST182..RHD198910-199108

W/O(*66)

main44610-2B530iST185..RHD198910-199109

W(*66)

main44610-2B530iST185..RHD198910-199311

main44610-2B620iAT180,ST182..LHD198910-199002

sub44610-2B621

main44610-2B621iAT180,ST182..LHD199002-199311

main44610-2B650iST182..LHD198910-199108

W/O(*66)

main44610-2B650iST185..LHD198910-199311

W(*66)

main44610-2B650iST185..LHD198910-199311

main44610-2D120iST182..RHD..LB199108-199311

main44610-2D150iST182..LHD..LB199108-199311

main44610-2D160iST182..RHD..LB199108-199311

W(*66)

main44610-2D170iST182..LHD..LB199108-199311

W(*66)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20100iAT180,ST18#..LHD198910-199311

main44730-20120iST18#..RHD198910-199311

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51046iST185198910-199311

main90404-51319iAT180,ST182198910-199311

44758BRACKET, VACUUM CHECK VALVE

main44758-20210iST18#..RHD198910-199311

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-20270iST182..RHD198910-199311

main44772-20280iST185..RHD198910-199311

44773FHOSE, UNION TO CHECK VALVE

main44773-20630iST182..LHD198910-199311

main44773-20640iAT180198910-199311

main44773-20650iST185..LHD198910-199311

main44773-20730iST182..RHD198910-199311

main44773-20750iST185..RHD198910-199311

44785GASKET, BRAKE BOOSTER

main44785-32010iAT180,ST18#198910-199311

9011906507

main90119-06507

9017908038

main90179-08038

9046400641

main90464-00641

9046716017

main90467-16017

9046716026

main90467-16026

12 parts on this diagram · 2 diagrams in section
