STEERING WHEEL

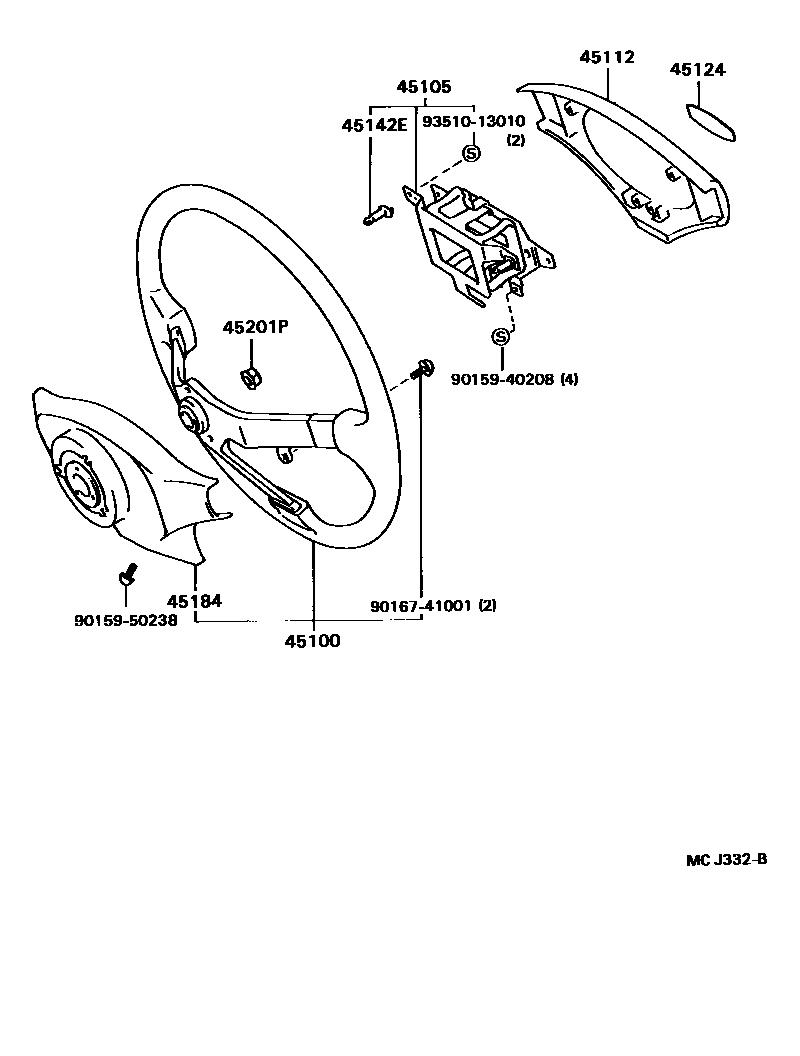

Parts diagram
45100WHEEL ASSY, STEERING
main45100-20700-03i198910-199108
SHADOW GRAY,TRIM1#
sub45100-20820
main45100-20700-04i198910-199108
DARK BLUE,TRIM8#
sub45100-20820
main45100-20710-03i198910-199109
SHADOW GRAY,TRIM1#
sub45100-2B040
main45100-20710-04i198910-199108
DARK BLUE,TRIM8#
sub45100-2B040
main45100-20720-03i198910-199108
SHADOW GRAY,TRIM1#
sub45100-2B050
main45100-20720-03i198910-199109
LEATHER,SHADOW GRAY,TRIM1#
sub45100-2B050
main45100-20720-04i199008-199108
DARK BLUE,TRIM8#
sub45100-2B050
main45100-20720-04i198910-199108
LEATHER,DARK BLUE,TRIM8#
sub45100-2B050
main45100-20820-P0i199108-199311
SHADOW GRAY,TRIM1#
sub45100-20820
main45100-20820-R8i199108-199311
DARK BLUE,TRIM8#
sub45100-20820
main45100-2B040-P0i199108-199311
SHADOW GRAY,TRIM1#
sub45100-2B040
main45100-2B040-R8i199108-199311
DARK BLUE,TRIM8#
sub45100-2B040
main45100-2B050-P0i199108-199311
LEATHER,SHADOW GRAY,TRIM1#
sub45100-2B050
main45100-2B050-P0i199108-199311
SHADOW GRAY,TRIM1#
sub45100-2B050
main45100-2B050-R8i199108-199311
LEATHER,DARK BLUE,TRIM8#
sub45100-2B050
main45100-2B050-R8i199108-199311
DARK BLUE,TRIM8#
sub45100-2B050
main45100-2B120-B0i199108-199309
URETHANE,W(*80),SHADOW GRAY,TRIM1#
sub45100-2B121
main45100-2B120-J0i199108-199309
URETHANE,W(*80),DARK BLUE,TRIM8#
sub45100-2B121
main45100-2B121-J0i199309-199311
URETHANE,W(*80),DARK BLUE,TRIM8#
sub45100-2B121
main45100-2B160-B0i199108-199309
4-SPOKE,LEATHER,W(*80),SHADOW GRAY,TRIM1#
sub45100-2B161
main45100-2B160-J0i199108-199309
4-SPOKE,LEATHER,W(*80),DARK BLUE,TRIM8#
sub45100-2B161
main45100-2B161-B0i199309-199311
4-SPOKE,LEATHER,W(*80),SHAOW GRAY,TRIM1#
sub45100-2B161
main45100-2B161-J0i199309-199311
4-SPOKE,LEATHER,W(*80),DARK BLUE,TRIM8#
sub45100-2B161
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-20270i198910-199311
45112PAD, STEERING WHEEL
main45112-20420-03i198910-199311
SHADOW GRAY,TRIM1#
sub45112-20420
main45112-20420-04i198910-199311
DARK BLUE,TRIM8#
sub45112-20420
main45112-20450-03i198910-199311
SHADOW GRAY,TRIM1#
sub45112-20450
45124ORNAMENT, STEERING WHEEL MARK
main45124-20080-03i198910-199311
SHADOW GRAY,TRIM1#
sub45124-20080
45142EPIECE, HORN CONTACT
main45142-20060i198910-199311
45184COVER, STEERING WHEEL BOSS, LOWER
main45180-20110-03i198910-199311
SHADOW GRAY,TRIM1#
sub45180-20110
main45180-20110-04i199108-199208
DARK BLUE,DARK BLUE,TRIM8#
sub45180-20110
main45180-20110-04i198910-199311
DARK BLUE,TRIM8#
sub45180-20110
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199311
main90179-12086i198910-199306
9015940208
main90159-40208
9015950238
main90159-50238
9016741001
main90167-41001
9351013010
main93510-13010

11 parts on this diagram · 2 diagrams in section
