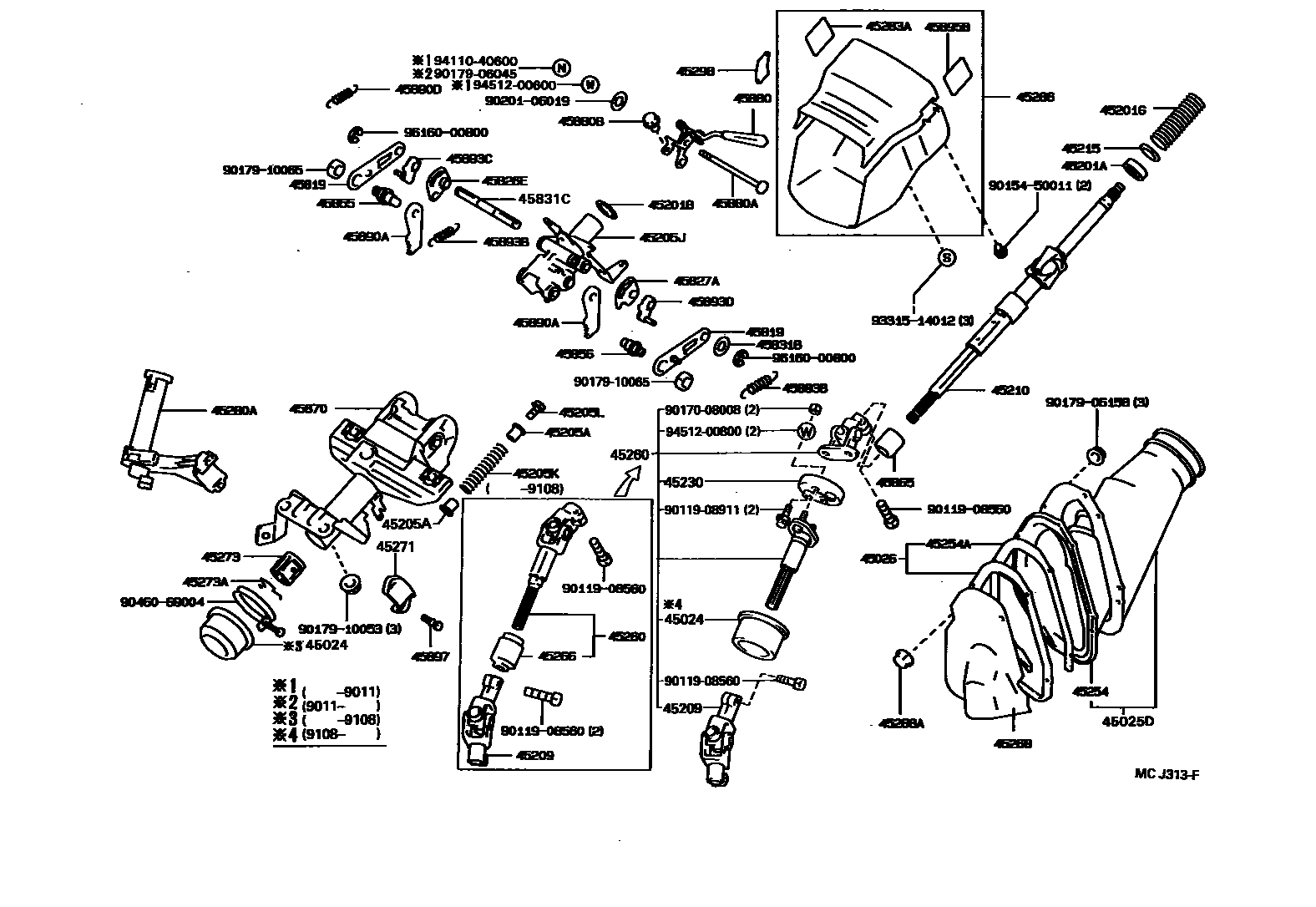

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1W(MEMORY & AUTOMATIC TILT STE0003 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-20110iST182..CVT198910-199109

main45026-20110iAT180,ST18#199108-199311

sub45026-20111

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20280iST18#..RHD198910-199109

main45025-20290iST182..LHD..CVT198910-199109

main45025-20410iST18#..RHD..LB199108-199311

main45025-20420iAT180,ST18#..LHD199108-199311

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-20050iST18#..RHD198910-199311

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iAT180,ST18#198910-199311

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT180198910-199311

T=1.20

main90520-17042iST18#198910-199311

T=1.20,W(TILT STEERING)

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAT180,ST18#198910-199311

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-06031iAT180,ST18#198910-199201

main90386-06043iAT180,ST185199201-199311

W(MEMORY & AUTOMATIC TILT STEERING)

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-20260iST182..RHD198910-199311

main45205-20270iAT180,ST182..LHD198910-199311

main45205-20290iST182..RHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main45205-20300iST185..LHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

45205KSPRING(FOR STEERING COLUMN TUBE)

main90504-25004iAT180199108-199305

W(TILT STEERING)

sub90504-25008

main90504-25004iAT180,ST18#198910-199108

sub90504-25008

main90504-25004iST182..RHD199208-199305

W(MEMORY & AUTOMATIC TILT STEERING)

sub90504-25008

main90504-25008iST182..RHD199305-199311

W(TILT STEERING)

main90504-25008iST18#199305-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main90504-29002iAT180..LB;AT180..CP..G199108-199311

W(*80)

main90504-29002iST18#..LB..(GTI,TBO4W)199108-199311

W(TILT STEERING & *80)

45205LSCREW(FOR STEERING COLUMN TUBE)

main90159-60429iAT180,ST18#198910-199311

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16010iAT180,ST18#..CP,LB199108-199311

main45209-17010iAT180198910-199008

main45209-32020iST18#198910-199109

sub45209-16010

45210SHAFT ASSY, STEERING MAIN

main45210-20290iST18#198910-199311

W(TILT STEERING)

main45210-20290iST182..RHD199208-199311

W(MEMORY & AUTOMATIC TILT STEERING & POWER WINDOW)

main45210-20300iAT180198910-199311

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAT180,ST18#198910-199311

45230COUPLING ASSY, FLEXIBLE

main45230-20030iAT180,ST18#199108-199311

sub45230-32010

45254SHIELD, STEERING COLUMN HOLE

main45254-20190iST18#..RHD198910-199109

main45254-20200iAT180,ST18#..LHD198910-199109

main45254-20230iST18#..RHD..LB199108-199311

45254ASHIELD, STEERING COLUMN HOLE, NO.2

main45254-20210iST18#..RHD198910-199311

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20160iST18#..RHD198910-199109

main45260-20170iST18#..LHD198910-199109

main45260-20190iAT180198910-199008

main45260-20320iST18#..RHD..LB199108-199311

main45260-20330iAT180,ST18#..LHD..(CP,LB)199108-199311

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAT180198910-199008

main45266-20010iST182..CVT198910-199109

45268COVER, STEERING INTER SHAFT DUST SEAL

main45268-20030iST18#..RHD198910-199311

45268ANUT(FOR STEERING INTER SHAFT DUST SEAL COVER)

main90179-06007iST18#..RHD198910-199311

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iAT180,ST18#198910-199311

45273BUSH, STEERING MAIN SHAFT

main45273-20010iAT180,ST18#198910-199006

sub45273-20011

main45273-20011iAT180,ST18#199006-199311

45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)

main90521-01006iAT180,ST18#198910-199311

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20490iAT180,ST182198910-199311

sub45280-20500

main45280-20490iAT180..LB;AT180..CP..G199108-199311

W(TILT STEERING & * 80)

sub45280-20500

main45280-20500iAT180198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main45280-20500iAT180..LB199108-199208

W(TILT STEERING & POWER WINDOW)

main45280-20500iST185;ST182..RHD199208-199311

W(POWER WINDOW)

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iST182..RHD198910-199311

45286COVER, STEERING COLUMN

main45287-20912-03iST182..RHD198910-199311

SHADOW GRAY,TRIM1#

sub45287-20912

main45287-20912-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

sub45287-20912

main45287-20912-07iST182..RHD198910-199008

KHAKI,TRIM8#

sub45287-20912

main45287-20914-03iAT180..LB;AT180..CP..W198910-199311

SHADOW GRAY,TRIM1#

sub45287-20914

main45287-20914-04iAT180..LB;AT180..CP..W198910-199311

DARK BLUE,TRIM8#

sub45287-20914

main45287-20915-03iST182..LHD;AT180..CP..G198910-199311

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-20915

sub45287-17912

main45287-20915-03iAT180..LB;AT180..CP..W198910-199311

SHADOW GRAY,TRIM1#

sub45287-20915

sub45287-17912

main45287-20915-04iAT180..LB;AT180..CP..W198910-199311

DARK BLUE,TRIM8#

sub45287-20915

sub45287-17912

main45287-20915-04iAT180..CP..G;ST182..LHD..LB198910-199311

W(TILT STEERING),DARK BLUE,TRIM8#

sub45287-20915

sub45287-17912

main45287-20918-03iST185..LHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-20918

main45287-20918-03iST182..LHD198910-199311

SHADOW GRAY,TRIM1#

sub45287-20918

main45287-20918-04iST182..LHD..LB198910-199311

W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8#

sub45287-20918

main45287-20920-03iST182..RHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1#

sub45287-20920

main45287-20920-03iST185..RHD198910-199311

SHADOW GRAY,TRIM1#

sub45287-20920

main45287-20920-04iST182..RHD..LB198910-199311

W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8#

sub45287-20920

45298PLUG, STEERING COLUMN COVER

main45298-20010-03iAT180,ST18#198910-199208

SHADOW GRAY,TRIM1#

sub45298-20010

main45298-20010-04iAT180,ST182..CP,LB198910-199208

DARK BLUE,TRIM8#

sub45298-20010

45819RETAINER, TILT LEVER

main45819-20070iST185198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main45819-22040iAT180,ST182198910-199301

main45819-22060iAT180,ST182199301-199311

45826LEVER, STEERING TILT

main45826-20140iST18#198910-199311

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45826-22050iAT180,ST18#198910-199311

45827ALEVER, STEERING TILT SUB

main45827-20050iST185198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main45827-22030iAT180,ST182198910-199311

45831BSPACER(FOR TILT LEVER LOCK SHAFT)

main90560-10062iAT180,ST18#198910-199311

45831CSHAFT, TILT LEVER LOCK

main45831-20030iAT180,ST18#198910-199311

45855BOLT, TILT STEERING, NO.1

main45855-22010iST185198910-199311

OD=9.989-9.998

main45855-22010iST185198910-199311

OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING)

main45855-22020iST185198910-199311

OD=9.998-10.007,W(MEMORY & AUTOMATIC TILT STEERING)

main45855-22020iST185198910-199311

OD=9.998-10.007

main45856-22010iAT180,ST182198910-199311

OD=9.989-9.998

45856BOLT, TILT STEERING, NO.2

main45856-20030iST185198910-199311

OD=9.989-9.998

main45856-20030iST182198910-199311

OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING)

main45856-20040iST185198910-199311

OD=9.993-9.998,W(MEMORY & AUTOMATIC TILT STEERING)

main45856-20040iST182198910-199311

OD=9.993-9.998

main45856-22010iAT180,ST182198910-199311

OD=9.989-9.998

45865COLLAR, STEERING MAIN SHAFT

main45865-20010iAT180,ST18#198910-199311

45870TUBE ASSY, STEERING COLUMN

main45870-20270iST182..RHD198910-199311

main45870-20280iAT180198910-199311

W(TILT STEERING)

main45870-20310iAT180198910-199311

main45870-20330iST182..RHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

main45870-20340iST182..LHD198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

45880LEVER ASSY, STEERING TILT

main45880-20010iAT180,ST182198910-199311

45880ABOLT(FOR STEERING TILT LEVER)

main90109-06162iAT180,ST182198910-199311

main90109-06168iST182198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

45880BSCREW(FOR STEERING TILT LEVER)

main93385-15014iAT180,ST18#198910-199311

45890APAWL ASSY, TILT STEERING

main45890-20110iAT180,ST18#198910-199311

RH

main45890-22090iAT180,ST18#198910-199311

LH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iAT180,ST182198910-199311

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-08010iAT180..LB;AT180..CP..G199108-199311

W(POWER WINDOW & *80),RH

main90507-08010iAT180,ST182198910-199311

LH

main90507-08010iAT180..LB;AT180..CP..G199108-199311

W(TILT STEERING & POWER WINDOW & *80),RH

main90507-08010iST182..LHD..LB199108-199311

W(TILT STEERING),LH

main90507-08013iST185198910-199311

LH

main90507-08013iST185198910-199311

W(MEMORY & AUTOMATIC TILT STEERING),LH

main90507-10019iAT180..LB;AT180..CP..G199108-199311

W(POWER WINDOW & *80),LH

main90507-10019iAT180,ST18#198910-199311

RH

main90507-10019iST18#;AT180..CP..W199108-199311

W(TILT STEERING),RH

main90507-10019iST18#;AT180..CP..W199108-199311

W(TILT STEERING & POWER WINDOW & *80),LH

45893CSTOPPER, STEERING PAWL, RH

main45893-20190iST185198910-199311

MARK 1

main45893-20190iST182198910-199002

MARK 1,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20200iST185198910-199002

MARK 2,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20200iST182198910-199311

MARK 2

main45893-20210iST185198910-199002

MARK 3,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20210iAT180,ST18#198910-199311

MARK 3

main45893-20220iST185198910-199311

MARK 4

main45893-20220iST185198910-199002

MARK 4,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20230iAT180,ST18#198910-199311

MARK 5

main45893-20230iST185198910-199002

MARK 5,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20240iST185198910-199002

MARK 6,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-20240iST185198910-199311

MARK 6

main45893-20250iST182198910-199311

MARK 7

main45893-20250iST182198910-199002

MARK 7,W(MEMORY & AUTOMATIC TILT STEERING)

main45893-22030iAT180,ST182198910-199002

MARK 1

main45893-22040iAT180,ST182198910-199002

MARK 2

main45893-22050iAT180,ST182198910-199002

MARK 3

main45893-22060iAT180,ST182198910-199002

MARK 4

main45893-22070iAT180,ST182198910-199002

MARK 5

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iAT180,ST18#198910-199311

MARK A

main45893-20270iAT180,ST18#198910-199311

MARK B

main45893-20280iAT180,ST18#198910-199311

MARK C

main45893-20290iAT180,ST18#198910-199311

MARK D

main45893-20300iAT180,ST18#198910-199311

MARK E

main45893-20310iAT180,ST18#198910-199311

MARK F

main45893-20320iAT180,ST18#198910-199311

MARK G

45895BPLATE, TILT LEVER INSTRUCTION

main45895-20090iST182..RHD198910-199311

main45895-20100iAT180,ST182..LHD198910-199311

main45895-20110iST182198910-199311

W(MEMORY & AUTOMATIC TILT STEERING)

45897BOLT, STEERING LOCK SET

main45897-12020iAT180,ST18#198910-199311

9011908560

main90119-08560

9011908911

main90119-08911

9015450011

main90154-50011

9017008008

main90170-08008

9017906045

main90179-06045

9017906158

main90179-06158

9017910053

main90179-10053

9017910065

main90179-10065

9020106019

main90201-06019

9046069004

main90460-69004

9331514012

main93315-14012

9411040600

main94110-40600

9451200600

main94512-00600

9451200800

main94512-00800

9616000800

main96160-00800

62 parts on this diagram · 3 diagrams in section
