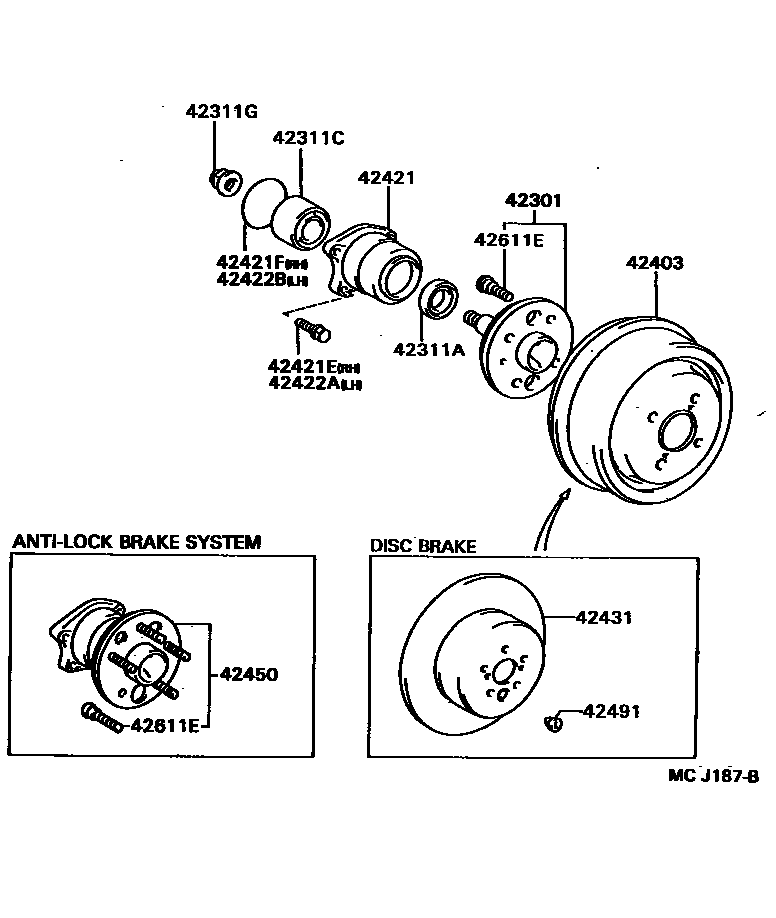

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-20070iST185¥14,900198910-199311

main42301-20130iAT180¥16,500198910-199108

sub42301-20080¥16,200

main42301-20140iST182¥13,600198910-199307

sub42301-32031¥13,600

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iAT180,ST182¥270198910-199311

main90311-52005iST185¥520198910-199311

OUTER

main90311-56007iST185¥520198910-199104

INNER

main90311-56015iST185¥520199104-199311

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT180,ST182..NOB¥6,900198910-199311

main90369-38003iST185¥7,000198910-199311

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19002iST185¥320198910-199101

main90179-20017iAT180,ST182..NOB¥410198910-199311

main90179-22020iST185¥310199101-199311

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080iAT180¥9,400198910-199108

main42431-32020iAT180¥9,400199108-199311

42421CASE, REAR AXLE BEARING

main42421-20020iAT180,ST182..NOB¥7,500198910-199311

sub42409-20010¥16,100

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iAT180,ST182..NOB¥200198910-199311

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iAT180,ST182..NOB¥350198910-199311

sub90301-63006¥350

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iAT180,ST182..NOB¥200198910-199311

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iAT180,ST182..NOB¥350198910-199311

sub90301-63006¥350

42431DISC, REAR

main42431-20090iST182¥10,200198910-199109

sub42431-20160¥10,200

main42431-20150iST185¥10,200199202-199311

main42431-20160iST182¥10,200199109-199311

main42431-20240iST185¥10,200198910-199202

sub42431-20150¥10,200

42450HUB & BEARING ASSY, REAR AXLE

main42450-20030iST182¥30,900198910-199311

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST18#¥140198910-199311

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iST185;ST182..NOB¥230198910-199311

main90942-02070iST185¥390199310-199311

sub90942-02049¥240

14 parts on this diagram · 4 diagrams in section
