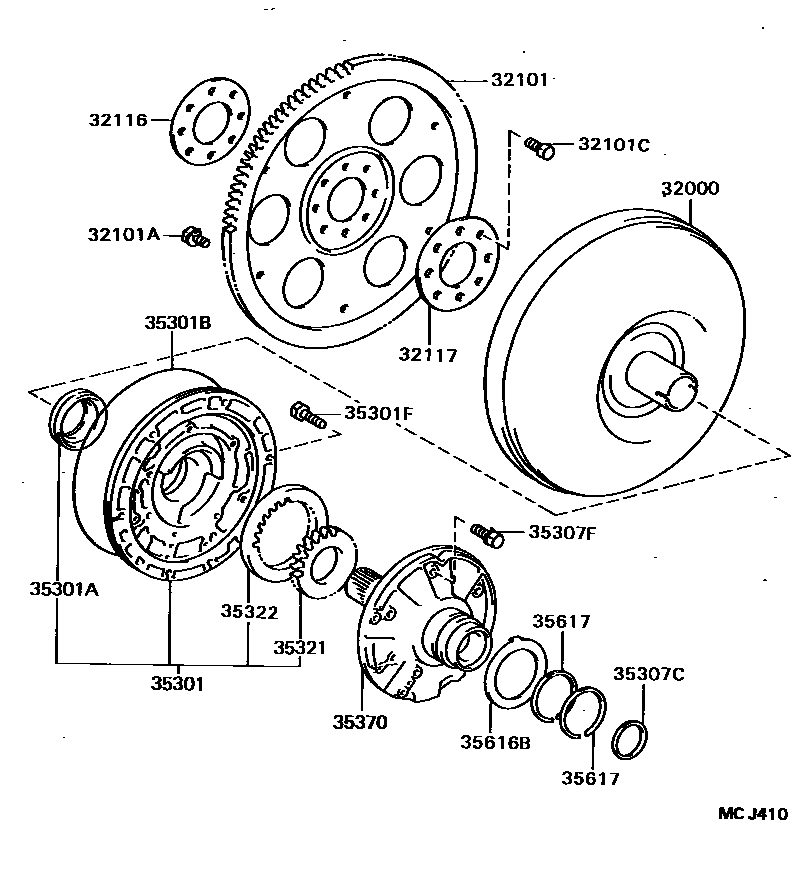

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-20210iST182..ATM198910-199311

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20080iST182..ATM198910-198911

sub32101-20081

sub32116-20050

sub32117-20060

main32101-20081iST182..ATM198911-199311

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iST182..ATM198910-199311

*8-1.25PX12-8.4

main90119-08498iST182..ATM198910-199311

*8-1.25PX12-8

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iST182..ATM198910-199311

*12-1.25PX22-16

sub90105-12384

32116SPACER, DRIVE PLATE, FRONT

main32116-20040iST182..ATM198910-198911

main32116-20050iST182..ATM198911-199311

32117SPACER, DRIVE PLATE, REAR

main32117-20050iST182..ATM198910-198911

main32117-20060iST182..ATM198911-199311

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iST182..ATM198910-199311

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iST182..ATM198910-199311

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iST182..ATM198910-199311

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198iST182..ATM198910-199311

*8-1.25PX28-28

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iST182..ATM198910-199311

T=0.8

main35789-32030iST182..ATM198910-199311

T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iST182..ATM198910-199311

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iST182..ATM198910-199311

T=10.690-10.699

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-35010iST182..ATM198910-199311

T=10.690-10.740

sub35322-12030

35370SHAFT ASSY, STATOR

main35370-12040iST182..ATM199009-199311

main35370-32022iST182..ATM198910-199009

sub35370-20H00

sub35370-32H01

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iST182..ATM198910-199311

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iST182..ATM198910-199311

17 parts on this diagram · 1 diagram in section
