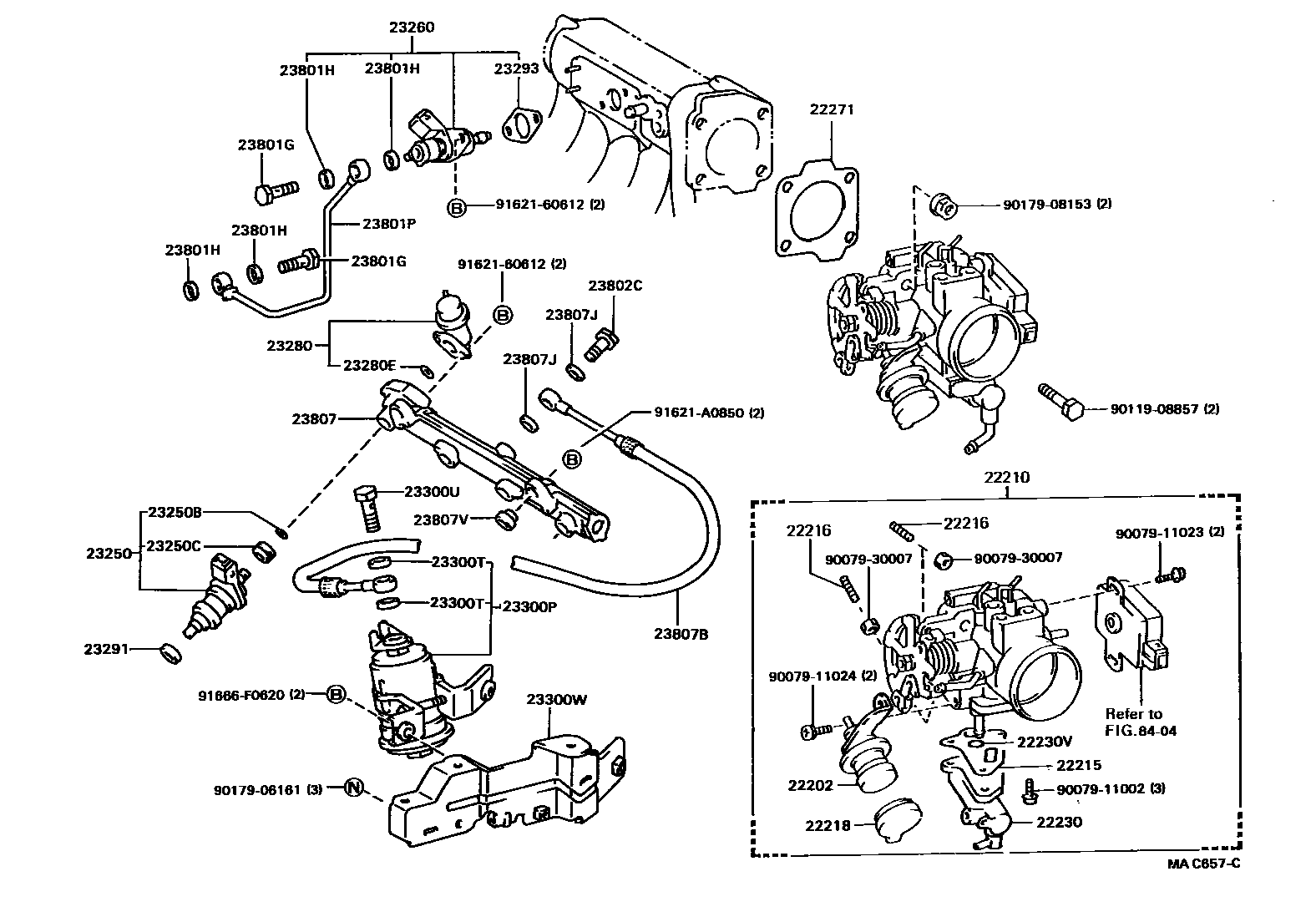

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22216SCREW, DASH POT ADJUSTING
22218COVER(FOR THROTTLE BODY)
22230VALVE ASSY, AUXILIARY AIR
22230VRING, O(FOR AUXILIARY AIR VALVE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
9007911002
main90079-11002
9007911023
main90079-11023
9007911024
main90079-11024
9007930007
main90079-30007
9011908857
main90119-08857
9017906161
main90179-06161
9017908153
main90179-08153
9162160612
main91621-60612
91621A0850
main91621-A0850
91666F0620
main91666-F0620
39 parts on this diagram · 5 diagrams in section
