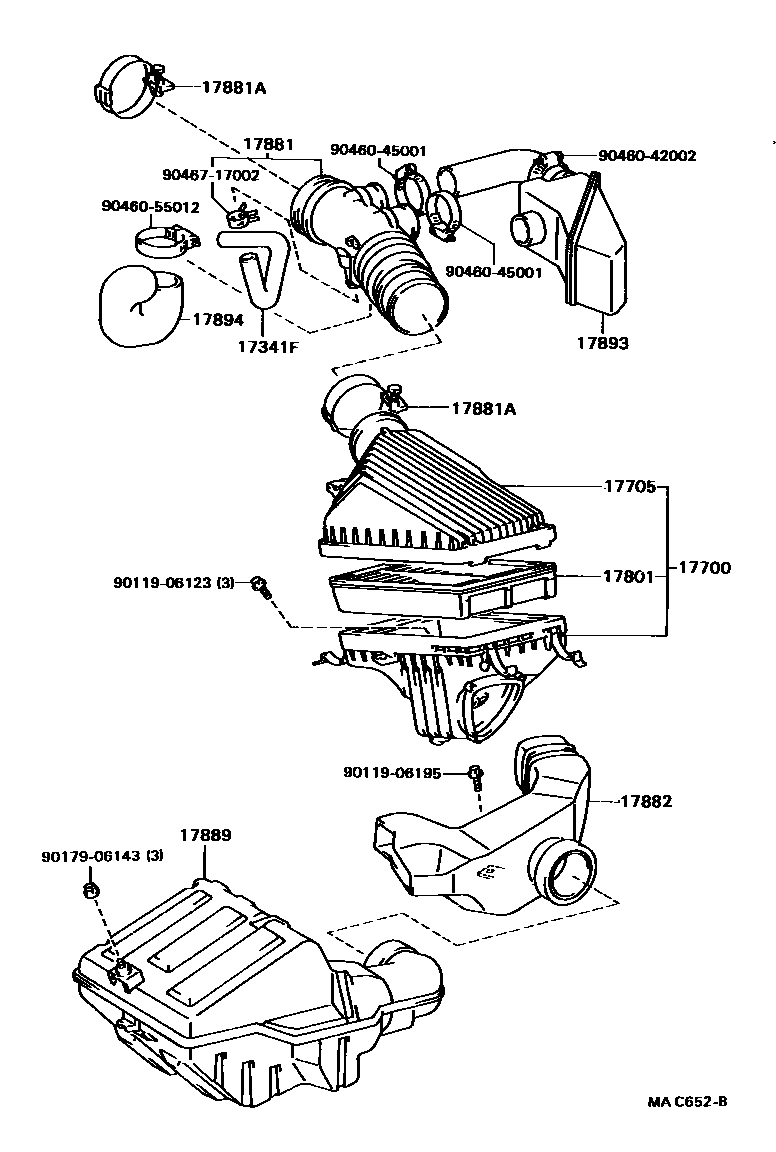

AIR CLEANER
17341FHOSE, AIR, NO.1
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
NO.1
NO.2
NO.2
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
sub96111-10730
TURBOCHARGER SIDE
INTERCOOLER SIDE
PIPE SIDE
AIR FLOW METER SIDE
17882HOSE, AIR CLEANER, NO.2
NO.2
NO.1
17889BOX, AIR CLEANER HOSE, NO.2
17893RESONATOR, INTAKE AIR
17894BRACKET, RESONATOR
9011906123
main90119-06123
9011906195
main90119-06195
9017906143
main90179-06143
9046042002
main90460-42002
9046045001
main90460-45001
9046055012
main90460-55012
9046717002
main90467-17002
17 parts on this diagram · 4 diagrams in section
