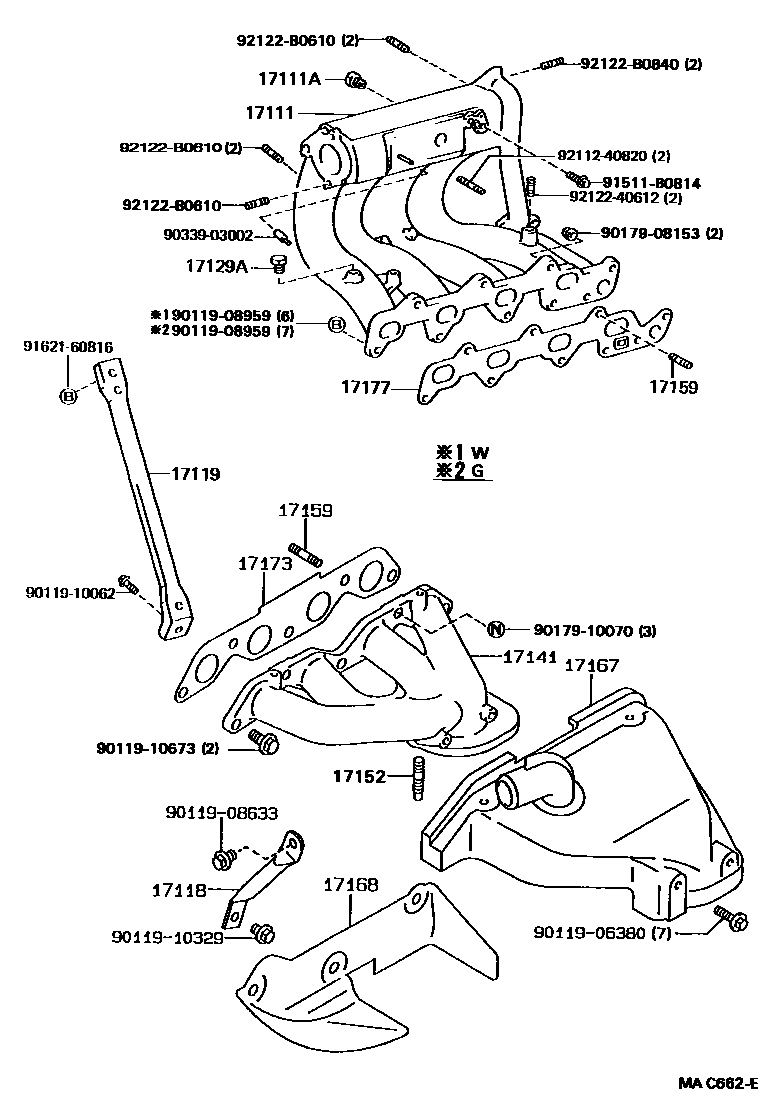

MANIFOLD

0001 1 0002 1 0004 1 0006 1 0007 1

17111MANIFOLD, INTAKE

main17101-16140i4AFE..AT180..G198910-199311

main17101-16170i4AFE..AT180..W198910-199311

main17101-88361i3SGE..ST182198910-199311

main17101-88385i3SGTE..ST185198910-199311

17111APLUG, NO.1

main90345-51006i4AFE..AT180198910-199311

main96411-43000×2i3SGTE..ST185198910-199311

17118STAY, MANIFOLD

main17118-16050i4AFE..AT180198910-199311

main17118-88363i3SGE..ST182198910-199311

main17118-88382i3SGTE..ST185198910-199311

sub17118-88480

17119STAY, MANIFOLD, NO.2

main17139-16030i4AFE..AT180198910-199311

17129TANK, INTAKE AIR SURGE

main17109-88360i3SGE..ST182198910-199311

17129AUNION, NO.1

main90072-40625×2i3SGTE..ST185198910-199311

main90345-51006i4AFE..AT180..CP199208-199311

main90404-51010i4AFE..AT180..LB;4AFE..AT180..CP..W198910-199311

17141MANIFOLD, EXHAUST

main17141-16200i4AFE..AT180198910-199311

main17141-88363i3SGE..ST182198910-199311

main17141-88381i3SGTE..ST185198910-199110

main17141-88382i3SGTE..ST185199110-199311

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×3i3SGE..ST182198910-199311

main90116-10146×3i4AFE..AT180198910-199311

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08186×3i3SGTE..ST185198910-199311

INTAKE MANIFOLD

main90116-08242×3i3SGE..ST182198910-199311

INTAKE MANIFOLD

main90116-10113×6i3SGE..ST182198910-199311

EXHAUST MANIFOLD

main92112-60825×2i4AFE..AT180198910-199311

INTAKE MANIFOLD

main92112-61028×3i4AFE..AT180198910-199311

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-16090i4AFE..AT180198910-199206

main17167-16150i4AFE..AT180199206-199311

main17167-88362i3SGE..ST182198910-199311

main17167-88381i3SGTE..ST185198910-199311

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16050i4AFE..AT180198910-199311

sub17168-16080

main17168-88381i3SGTE..ST185198910-199311

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15010i4AFE..AT180198910-198912

main17173-15011i4AFE..AT180198912-199107

main17173-15040i4AFE..AT180199107-199311

main17173-88361×2i3SGE..ST182198910-199311

main17173-88381×2i3SGTE..ST185198910-199110

TYPE A:REFER ILLUST.

main17173-88382×2i3SGTE..ST185199110-199311

TYPE B:REFER ILLUST.

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15020i4AFE..AT180..G198910-198912

main17171-15021i4AFE..AT180..LB..G198912-199311

main17171-16030i4AFE..AT180..W198910-198912

main17171-16031i4AFE..AT180..W;4AFE..AT180..CP..G198912-199311

main17177-74060i3SGE..ST182198910-199311

main17177-88381i3SGTE..ST185198910-199311

9011906380

main90119-06380

9011908633

main90119-08633

9011908959

main90119-08959

9011910062

main90119-10062

9011910329

main90119-10329

9011910673

main90119-10673

9017908153

main90179-08153

9017910070

main90179-10070

9033903002

main90339-03002

91511B0814

main91511-B0814

9162160816

main91621-60816

9211240820

main92112-40820

9212240612

main92122-40612

92122B0610

main92122-B0610

92122B0840

main92122-B0840

28 parts on this diagram · 5 diagrams in section
