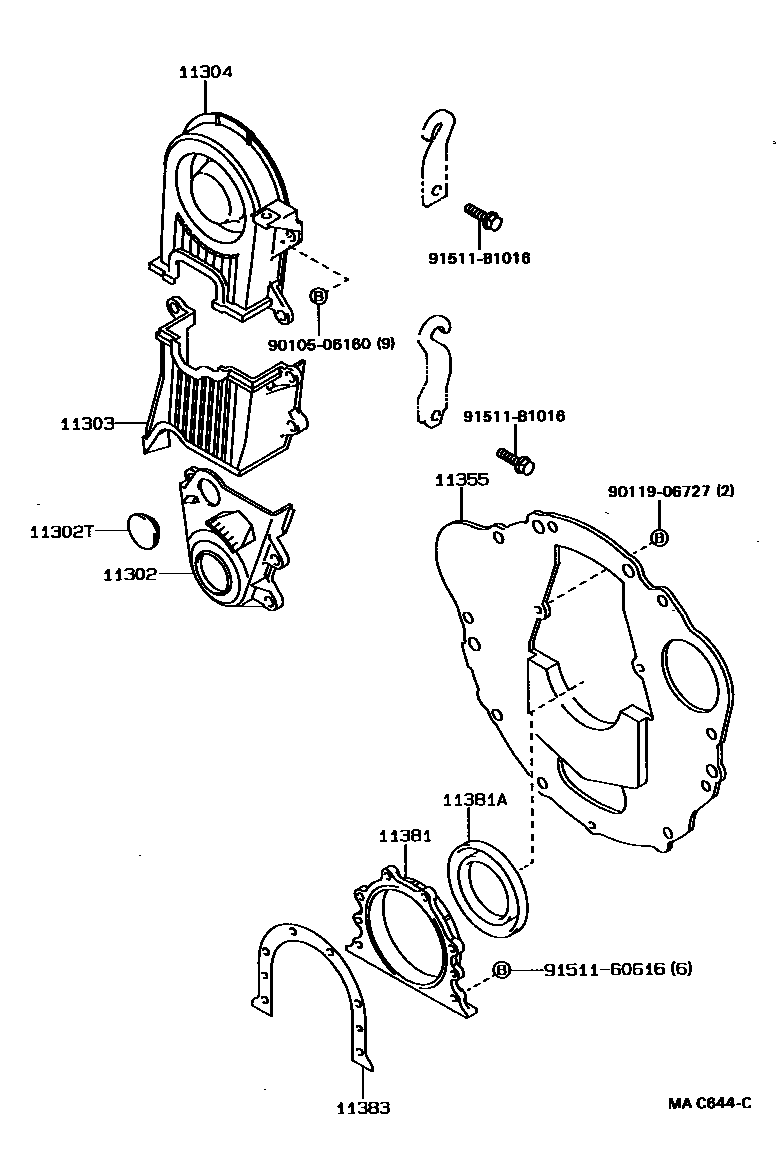

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0004 1 0006 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15041i4AFE..AT180198910-199311

main11321-88380i3SG#..ST18#198910-199311

11302TPLUG, HOLE

main90950-01391i4AFE..AT180198910-199311

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AFE..AT180198910-199311

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AFE..AT180198910-199311

main11322-88380i3SGE..ST182198910-199311

11355PLATE, REAR END

main11355-15070i4AFE..AT180198910-199311

main11355-74010i3SGE..ST182198910-199311

main11355-74030i3SGTE..ST185198910-199311

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AFE..AT180198910-199311

main11381-63012i3SG#..ST18#198910-199311

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AFE..AT180198910-199106

sub90311-70007

main90311-70007i4AFE..AT180199106-199311

main90311-89001i3SG#..ST18#198910-199012

sub90311-89003

main90311-89002i3SG#..ST18#199012-199311

sub90311-89001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4AFE..AT180198910-198912

sub11383-15011

main11383-15011i4AFE..AT180198912-199205

sub11383-16010

main11383-16010i4AFE..AT180199205-199311

main11383-88381i3SG#..ST18#198910-199311

9010506160

main90105-06160

9011906727

main90119-06727

9151160616

main91511-60616

91511B1016

main91511-B1016

12 parts on this diagram · 4 diagrams in section
