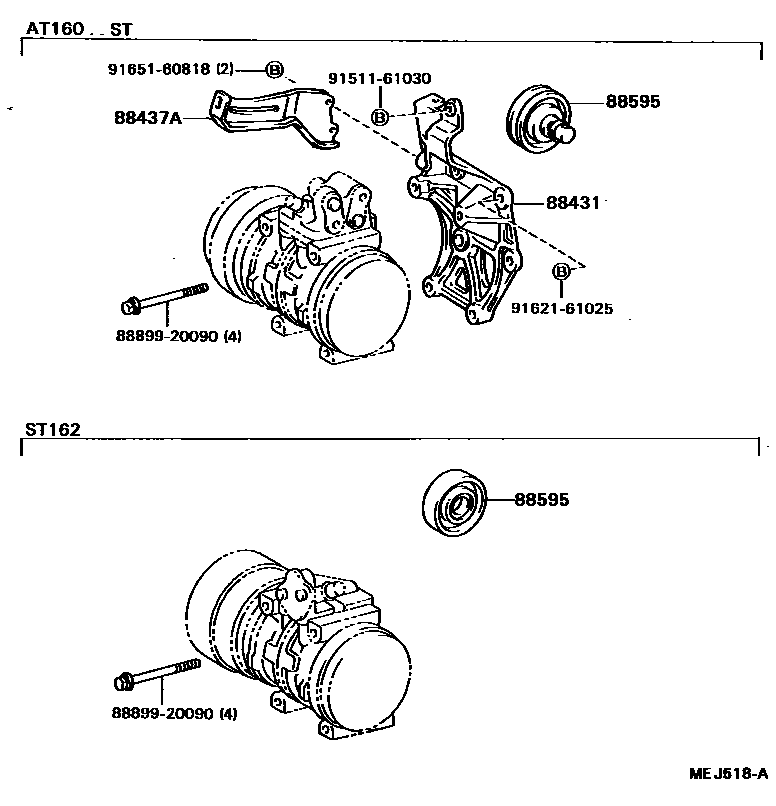

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20260iAT160..CBR198708-198908

88437AATTACHMENT, COMPRESSOR

main88437-12260iAT160..CBR198708-198908

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iAT160..CBR198708-198908

main88440-20110iST162..(CP,LB)..RHD198708-198908

HONG KONG SPEC

main88440-20110iST165..RHD198708-198801

main88440-20120iST162;ST165..LHD198708-198908

8889920090COVER, EVAPORATOR

main88899-20090

9151161030

main91511-61030

9162161025

main91621-61025

9165160818

main91651-60818

7 parts on this diagram · 4 diagrams in section
