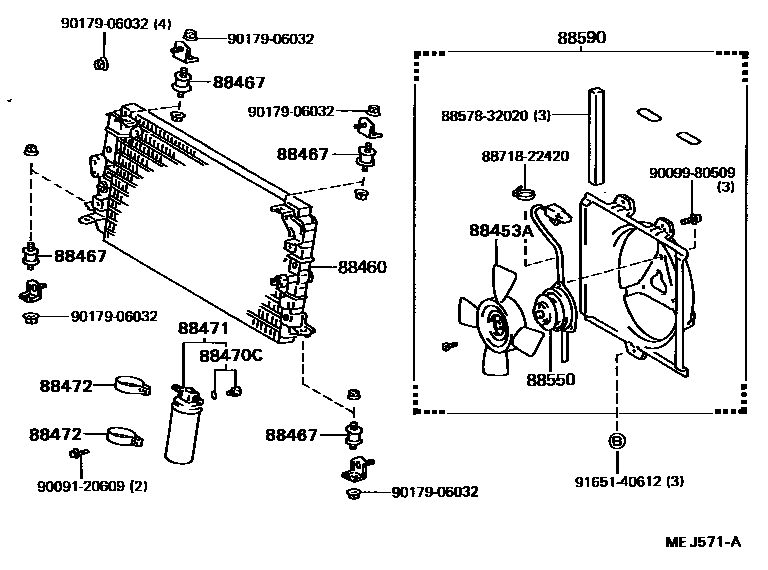

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88453AFAN, COOLING

main88453-10010iAT160..CBR198708-198908

main88453-20020iST165..LHD198710-198908

main88453-32020iST162198708-198908

88460CONDENSER ASSY, COOLER

main88460-20200iST162..(CP,LB)..RHD¥34,400198708-198908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040iST16#198710-198908

88470CBOLT, FUSE

main88475-12020iST162..LHD;ST162..CVT..RHD;AT160,ST165..ST,TBO4W198708-198908

88471TANK, RECEIVER AIR CONDITIONER

main88470-14010iAT160..CBR¥7,200198708-198908

sub04884-33110¥5,200

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iST165..RHD198708-198908

UPR

main88473-20030iST165..RHD198708-198908

LWR

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST162;AT160..CBR¥17,100198708-198908

main88550-20030iST165..LHD¥21,700198710-198908

sub88550-24060¥21,700

88590BLOWER ASSY, W/SHROUD

main88590-12140iAT160..CBR198708-198908

main88590-20080iST165..LHD198710-198908

main88590-20100iST162..LHD;ST162..CVT..RHD198708-198908

main88590-20150iST165..RHD198710-198801

sub88590-20080

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009120609

main90091-20609

9009980509

main90099-80509

9017906032

main90179-06032¥120

9165140612

main91651-40612¥70

14 parts on this diagram · 3 diagrams in section
