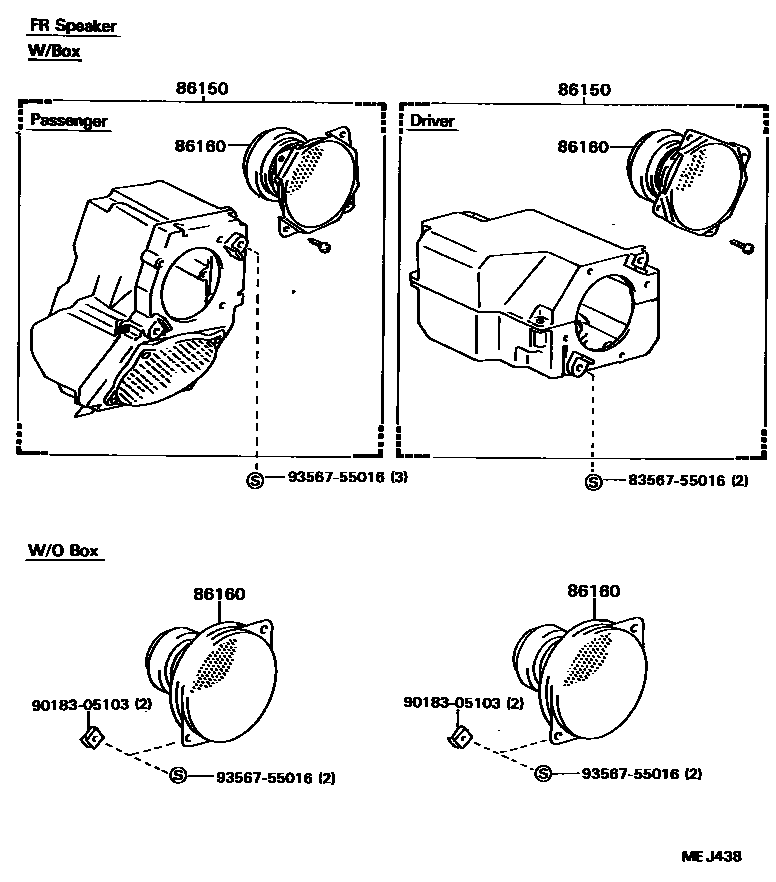

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-20050iST162..(CP,LB)..RHD198708-198908

FR-RH

main86150-20060iST162..(CP,LB)..RHD198708-198908

FR-LH

main86150-20070iAT160,ST162..(CP,LB)..LHD198708-198808

FR-LH

main86150-20071iAT160,ST162..(CP,LB)..LHD198808-198908

FR-LH

main86150-20080iAT160,ST162..(CP,LB)..LHD198708-198808

FR-RH

main86150-20081iAT160,ST162..(CP,LB)..LHD198808-198908

FR-RH

main86150-20090iST162..LB..RHD198708-198805

RR-RH

main86150-20091iST162..LB..RHD198805-198908

RR-RH

main86150-20100iST162..LB..RHD198708-198805

RR-LH

main86150-20101iST162..LB..RHD198805-198908

RR-LH

86160SPEAKER ASSY, FRONT NO.1

main86160-20240×2iAT160198810-198908

W/O BOX TYPE

main86160-20280×2iST162..(CP,LB)..RHD198708-198908

main86160-20290×2iAT160,ST162..(CP,LB)..LHD198708-198808

W/BOX TYPE

main86160-20291×2iAT160,ST162..(CP,LB)..LHD198808-198908

W/BOX TYPE

8356755016

main83567-55016

9018305103

main90183-05103

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section
