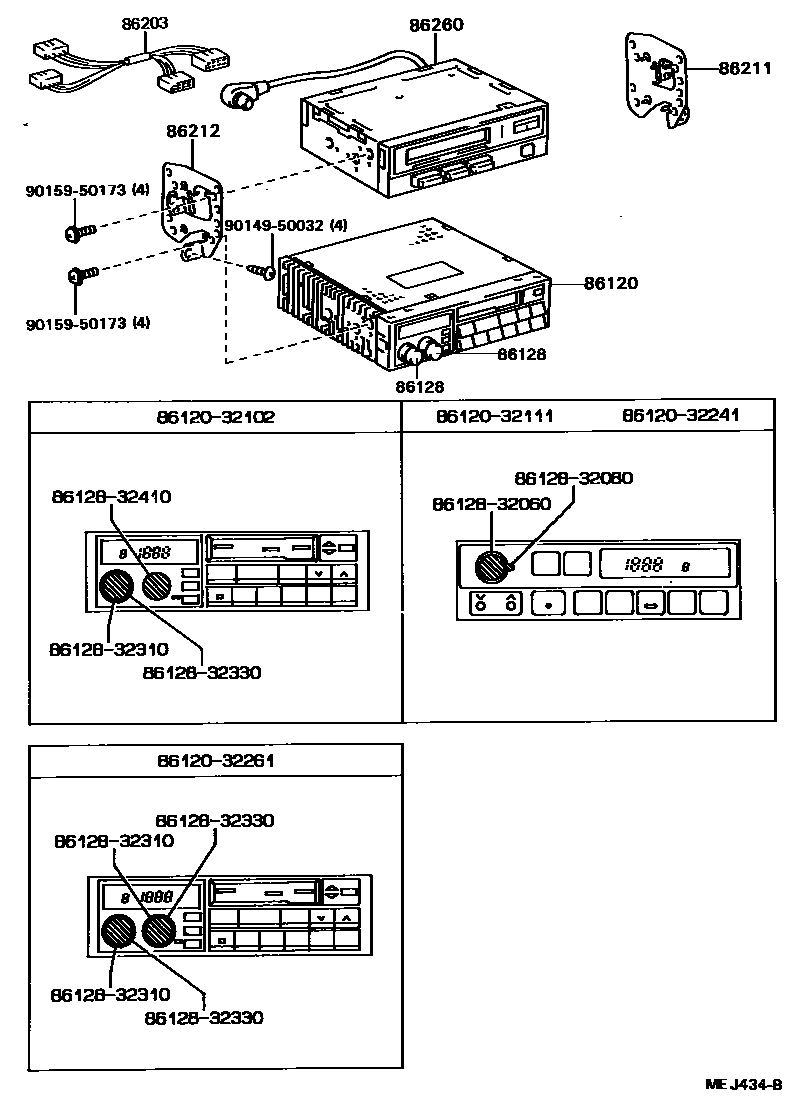

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-30810iST162..(CP,LB)..RHD198708-198908

AM/FM MPX ETR

sub86120-3A040

main86120-32102iST162..CVT198708-198908

MATSUSHITA,LW/MW/UKW MPX ETR CASSETTE AIR

main86120-32111iAT160,ST162..CP,LB198708-198908

FUJITSU TEN,LW/MW/UKW MPX ETR AIR

main86120-32241iAT160,ST162..CP,LB198708-198810

FUJITSU TEN

main86120-32261iST165198708-198908

LW/MW/UKW *AF MPX ETR CASSETTE AIR

86128KNOB, RADIO RECEIVER

main86128-32060iAT160,ST162..CP,LB198708-198908

PWR/VOL(86120-32241,86120-32111)

main86128-32080iAT160,ST162..CP,LB198708-198908

TONE(86120-32241,86120-32111)

main86128-32310iST165198708-198908

VOL(86120-32102)

main86128-32310iST165198708-198908

VOL,TREB(86120-32261)

main86128-32330iAT160,ST162..CP,LB198708-198908

BAL(86120-32102)

main86128-32330iST162..CVT198708-198908

FADE,BASS(86120-32261)

main86128-32410iAT160,ST162..CP,LB198708-198908

TONE(86120-32102)

86203WIRE, RADIO

main86203-20180iST165198708-198908

86211BRACKET, RADIO, NO.1

main86211-20150iAT160,ST162..(CP,LB)..LHD198708-198908

86212BRACKET, RADIO, NO.2

main86212-20190iST165;ST162..RHD;ST162..CVT..LHD198708-198908

86260TAPE PLAYER ASSY

main86260-16140iAT160198708-198908

W(AMP)

main86260-30250iST162..(CP,LB)..RHD198708-198908

W/O (AMP)

sub86260-30310

8612032102RECEIVER ASSY, RADIO

main86120-32102

8612032111RECEIVER ASSY, RADIO

main86120-32111

8612032241RECEIVER ASSY, RADIO

main86120-32241

8612032261RECEIVER ASSY, RADIO

main86120-32261

8612832060KNOB, RADIO RECEIVER

main86128-32060

8612832080KNOB, RADIO RECEIVER

main86128-32080

8612832310KNOB, RADIO RECEIVER

main86128-32310

8612832330KNOB, RADIO RECEIVER

main86128-32330

8612832410KNOB, RADIO RECEIVER

main86128-32410

9014950032

main90149-50032

9015950173

main90159-50173

17 parts on this diagram · 2 diagrams in section
