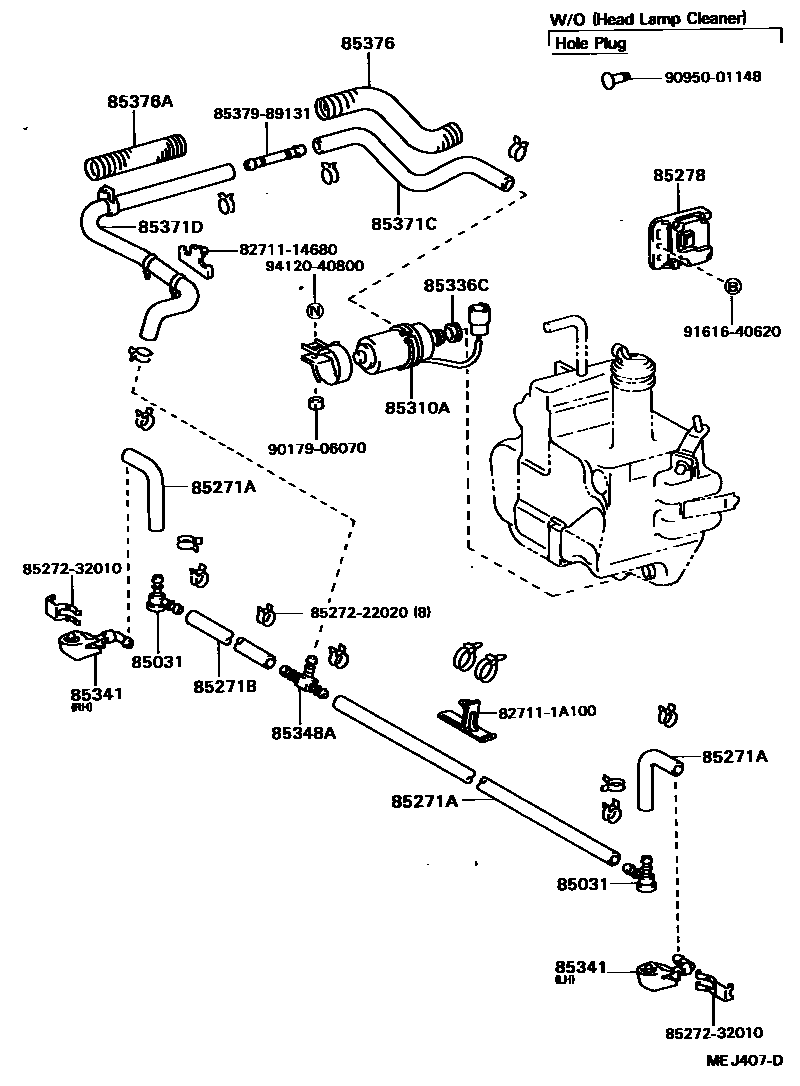

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iAT160,ST16#..CP,LB198708-198908

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-20190iAT160,ST16#..CP,LB198708-198908

L=90

main90445-14072iAT160,ST16#..CP,LB198708-198908

L=1320

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-20171iAT160,ST16#..CP,LB198708-198908

L=60

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22070iST162..CVT..FRG;AT160,ST16#..CP,LB198708-198908

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-12190iST165;AT160,ST162..CP198708-198908

sub85310-95J02

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iST165;AT160,ST162..CP;ST162..CVT..FRG198708-198908

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-20030iST162..CVT..FRG;AT160,ST16#..CP,LB198708-198908

RH

main85045-20030iAT160,ST16#..CP,LB198708-198908

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iAT160,ST16#..CP,LB198708-198908

85371CHOSE, HEADLAMP CLEANER, NO.1

main85375-12480iAT160,ST162..LB198708-198806

main85376-20621iAT160,ST162..LB198806-198908

85371DHOSE, HEADLAMP CLEANER, NO.2

main85375-12062iST165198708-198806

L=600

main85375-20621iST165198806-198908

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12480iST165198708-198806

main85377-20621iAT160,ST162..LB198806-198908

85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2

main85377-22070iAT160,ST162..LB198806-198908

sub85276-60180

8271114680WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14680

827111A100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A100

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

8527232010CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-32010

8537989131JOINT

main85379-89131

9017906070

main90179-06070

9095001148

main90950-01148

9161640620

main91616-40620

9412040800

main94120-40800

21 parts on this diagram · 1 diagram in section
