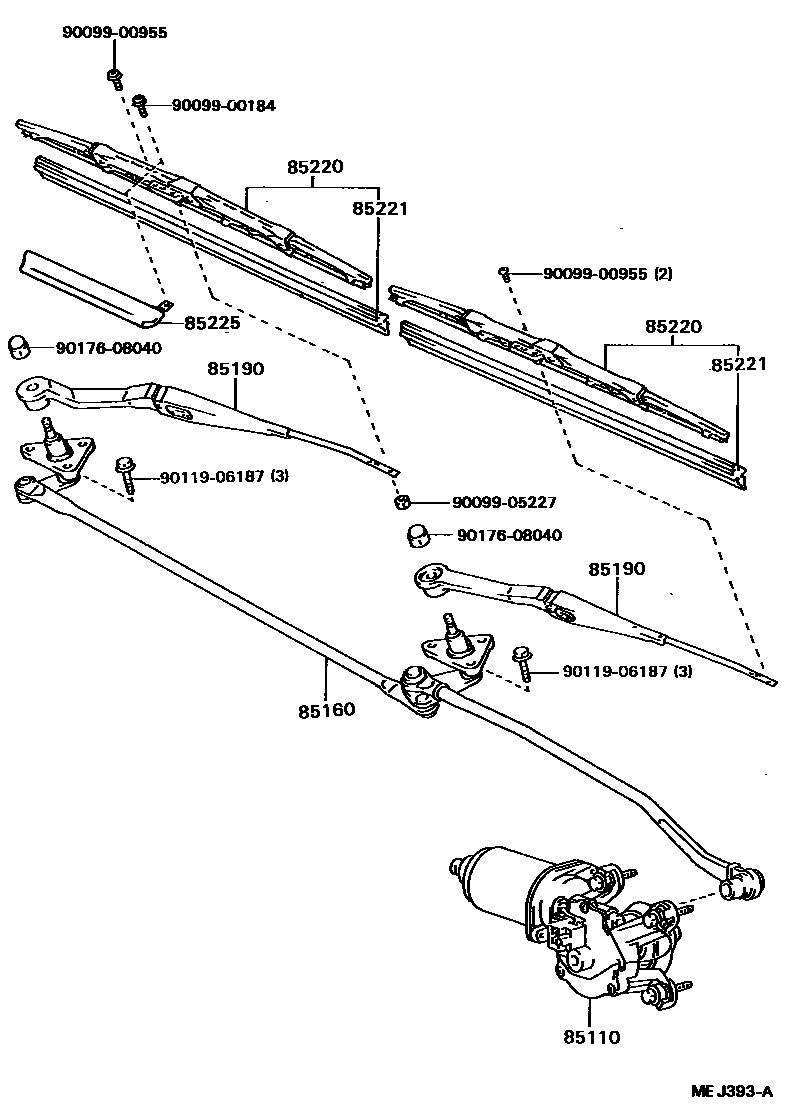

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20440iST16#..RHD198708-198803

main85110-20441iST16#..RHD198803-198908

main85110-20460iAT160,ST16#..LHD198708-198908

85160LINK ASSY, WINDSHIELD WIPER

main85160-20310iST16#..RHD198708-198908

main85160-20330iAT160,ST16#..LHD198708-198908

sub85160-20340

85190ARM ASSY, WINDSHIELD WIPER

main85190-20580iST16#..RHD198708-198908

RH

main85190-20600iAT160,ST16#..LHD198708-198908

LH

main85210-20131iST16#..RHD198708-198908

LH

main85210-20200iAT160,ST16#..LHD198708-198908

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iST16#..RHD198708-198908

LH

sub85220-16321

main85220-16340iAT160,ST16#..LHD198708-198808

RH

sub85220-16640

main85220-16880iAT160,ST16#..LHD198808-198908

RH

sub85220-16640

main85220-32590iST16#..RHD198708-198802

RH

sub85220-32591

main85220-32600iAT160,ST16#..LHD198708-198802

LH

sub85220-32860

main85220-32800iST16#..RHD198802-198908

RH

sub85220-3A211

main85220-32810iAT160,ST16#..LHD198802-198908

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-20200iAT160,ST16#..LHD198802-198908

LH

sub85213-12280

main85221-30100iAT160,ST16#..LHD198708-198908

RH

sub85221-40040

main85221-30120iST16#..RHD198708-198908

LH

sub85221-40040

main85221-32050iAT160,ST16#..LHD198708-198802

LH

sub85214-24H90

85225WING, WIPER BLADE

main85225-20580iST16#..RHD198708-198908

main85225-20600iAT160,ST16#..LHD198708-198908

9009900184

main90099-00184

9009900955

main90099-00955

9009905227

main90099-05227

9011906187

main90119-06187

9017608040

main90176-08040

11 parts on this diagram · 2 diagrams in section
