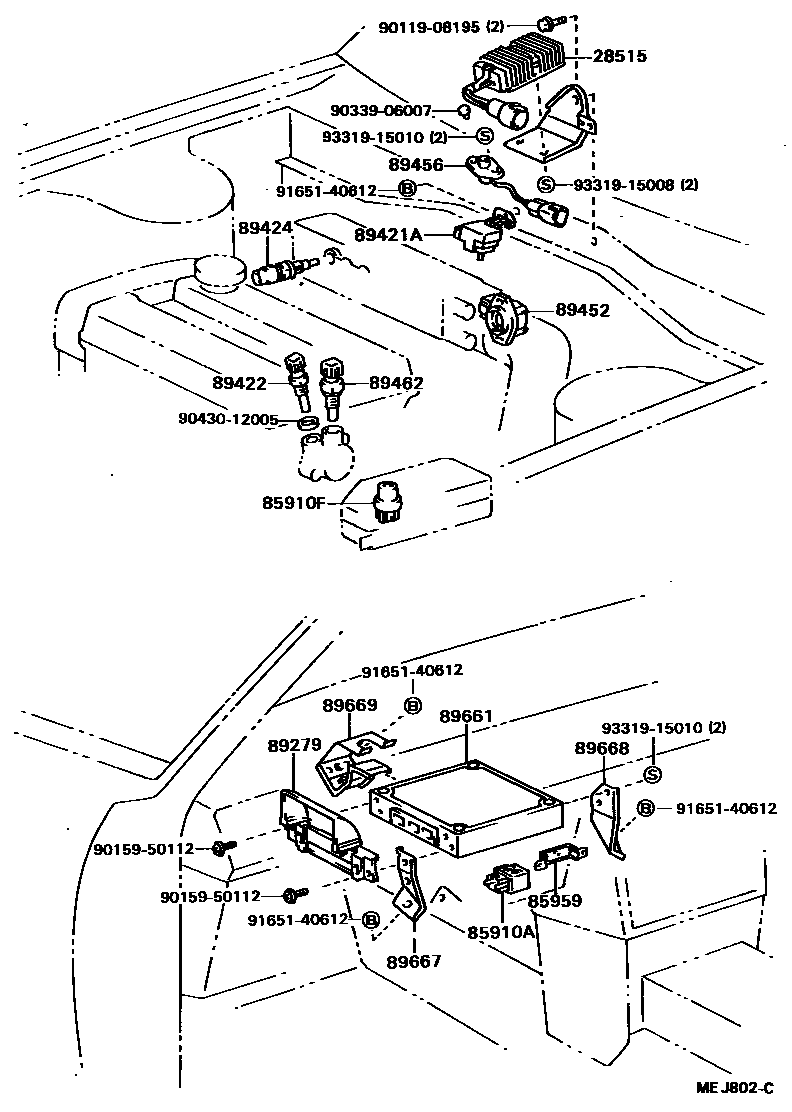

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28515RESISTOR, SOLENOID

main28515-52010i4AGEL..AT160198708-198908

sub28515-11010

main28515-74030i3SGTE..ST165198710-198908

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iAT160,ST16#..TWC198708-198908

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iAT160,ST16#..TWC198708-198908

85959HOLDER, RELAY

main85959-20050iST165..RHD198710-198908

main85959-20070iST165..LHD198710-198908

main85959-20090iST162..RHD198708-198908

main85959-20100iAT160,ST162..LHD..TWC198708-198908

89279COVER, ENGINE CONTROL COMPUTER

main89279-20040iST165..RHD198710-198908

main89279-20100iST165..LHD198710-198908

main89279-32030iAT160..TWC198708-198908

main89279-32040iST162198708-198908

89421ASENSOR, TURBO PRESSURE

main89420-20060iAT160..EUG..TWC198708-198908

main89420-20070iST165..LHD198710-198908

main89421-20130iST165..RHD198710-198908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAT160,ST16#..TWC198808-198908

main89422-30020iAT160,ST16#..TWC198708-198808

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT160..EUG..TWC198708-198908

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAT160..EUG..TWC198708-198903

DENSO

main89452-12050iAT160..EUG..TWC198708-198908

AISAN

sub89452-33010

main89452-12050iAT160..FRG198903-198908

sub89452-33010

main89452-20050iST16#198708-198908

89456RESISTOR, VARIABLE

main89456-20010iAT160..EUG..TWC198708-198908

89462SWITCH, START INJECTOR TIME

main89462-20010iST16#..FRG198708-198808

main89462-20020iST162..EUG198808-198908

main89462-20030iAT160..TWC198808-198908

main89462-20040iST16#..FRG198808-198908

main89462-30011iAT160..TWC198708-198808

main89462-40010iST162..EUG198708-198808

89661COMPUTER, ENGINE CONTROL

main89661-20180iST162..EUG198708-198908

main89661-20340iST162..FRG198708-198908

main89661-20370iST165198710-198908

main89661-20390iAT160..EUG..TWC198708-198908

sub89661-17140

main89661-20450iAT160..FRG198708-198908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20050iST162..RHD198708-198908

main89667-20070iST162..LHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main89667-20100iAT160,ST162..LHD..TWC198708-198908

main89667-20110iST165..RHD198710-198908

main89667-20120iST165..LHD198710-198908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20080iST162..RHD198708-198908

main89668-20100iAT160,ST162..LHD..TWC198708-198908

main89668-20110iST165..LHD198710-198908

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20060iAT160,ST162..TWC198708-198908

main89669-20070iST165198710-198908

9011908195

main90119-08195

9015950112

main90159-50112

9033906007

main90339-06007

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

22 parts on this diagram · 3 diagrams in section
