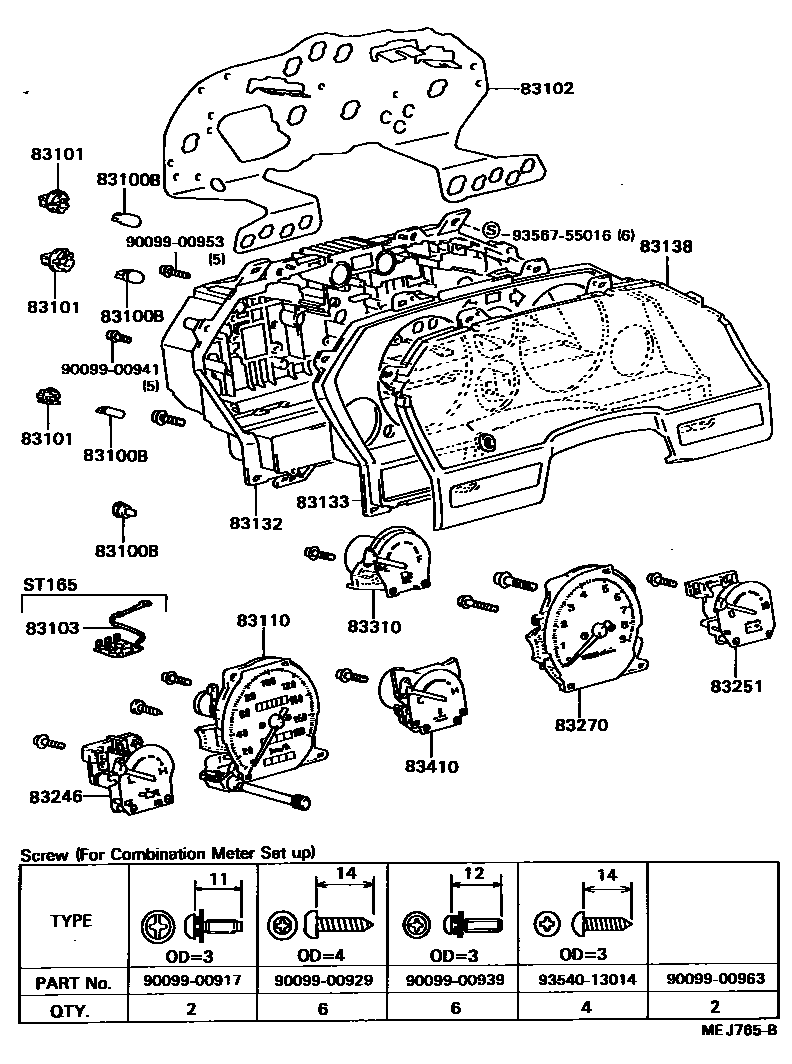

METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iST162..4FC198708-198908

12V 1.4W,W(SOCKET)

main83109-24020iAT160,ST16#198708-198908

12V3.4W W(GREEN CAP)

main83109-24030iST162..(CP,LB)..RHD198708-198908

12V3.4W W(GREEN CAP),W(DEGITAL SPEEDOMETER)

main83109-24040iST162..(CP,LB)..RHD198708-198908

12V1.4W W(GREEN CAP)

main90981-11018iAT160..CBR198708-198908

12V 1.2W W/O SOCKET

main90981-11038iST162..(CP,LB)..RHD198708-198908

12V 5W

main99132-12034iAT160..FRG;ST162..LHD..5F..EUG198708-198908

12V 3.4W

main99132-12034iST162..(CP,LB)..RHD198708-198908

12V 3.4W,W(DEGITAL SPEEDOMETER)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020iST162..(CP,LB)..RHD198708-198908

W(DEGITAL SPEEDOMETER),BULB:12V 3.4W

main83101-14030iAT160,ST16#198708-198908

BULB:12V 3.4W

main83101-14040iAT160..CBR198708-198908

BULB:12V 1.2W

main83101-20090iST162..(CP,LB)..RHD198708-198908

W(DEGITAL SPEEDOMETER),BULB:12V 5W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D080iAT160..CBR198708-198908

sub83247-1D140

main83247-1D100iAT160..TWC198708-198908

sub83247-1D140

main83247-1D120iST162..LHD..5F198708-198908

sub83247-1D140

main83247-1D140iST162..LHD..4FC198708-198908

main83247-1D160iST165..LHD198710-198908

main83247-1D580iST165..RHD198710-198908

main83247-1D790iST162..(CP,LB)..RHD198708-198908

W(DEGITAL SPEEDOMETER)

main83247-1J860iST162..RHD..5F198708-198908

sub83247-1J880

main83247-1J880iST162..RHD..4FC198708-198908

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1D180iST165..LHD198710-198908

main83247-1D600iST165..RHD198710-198908

83110SPEEDOMETER ASSY

main83110-2B421iST16#..RHD198708-198908

main83110-2B470iAT160..CBR198708-198908

main83110-2B481iAT160,ST16#..LHD..TWC198708-198908

83132CASE, COMBINATION METER

main83132-1D380iST162..RHD..5F198708-198908

sub83132-1D580

main83132-1D460iAT160..CBR198708-198908

sub83132-1D500

main83132-1D480iST162..LHD..5F198708-198908

sub83132-1D500

main83132-1D500iST162..LHD..4FC198708-198908

main83132-1D520iST165..LHD198710-198908

main83132-1D540iAT160..TWC198708-198908

sub83132-1D500

main83132-1D580iST162..RHD..4FC198708-198908

main83132-1D850iST162..(CP,LB)..RHD198708-198908

W(DEGITAL SPEEDOMETER)

main83132-1D880iST165..RHD198710-198908

83133PLATE, COMBINATION METER, NO.1

main83133-1B290iST162..RHD..4FC198708-198908

W(DEGITAL SPEEDOMETER)

main83133-1B470iST16#..RHD198708-198908

main83133-1B490iAT160,ST16#..LHD198708-198908

83138GLASS, SPEEDOMETER

main83138-1B030iST162..(CP,LB)..RHD198708-198908

W(DEGITAL SPEEDOMETER)

main83138-1B130iST16#..RHD198708-198908

main83138-1B150iAT160,ST16#..LHD198708-198908

83246GAUGE, OIL PRESSURE RECEIVER

main83246-14650iAT160,ST16#198708-198908

83251METER, VOLTAGE

main83251-14630iAT160,ST162198708-198908

main83251-14730iST165..LHD198710-198908

main83251-14750iST165..RHD198710-198908

83270TACHOMETER ASSY, ENGINE

main83242-1B070iST162..RHD..5F198708-198908

main83242-1B110iST162..RHD..4FC198708-198908

main83242-1B230iAT160..CBR198708-198908

main83242-1B250iAT160..TWC198708-198908

main83242-1B270iST162..LHD..5F..EUG198708-198908

main83242-1B290iST162..LHD..4FC198708-198908

main83242-1B430iST162..FRG198708-198808

main83242-1D130iAT160..FRG198708-198808

main83242-1D230iST165..RHD198710-198808

main83242-1D290iST165..LHD198710-198808

main83242-1D850iST165..RHD198808-198908

main83242-1D870iST165..LHD198808-198908

83310GAGE ASSY, FUEL RECEIVER

main83243-14710iST16#..RHD198708-198908

main83243-14730iAT160,ST16#..LHD198708-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B290iST16#..RHD198708-198908

main83244-1B310iAT160,ST16#..LHD..5F198708-198908

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

9356755016

main93567-55016

21 parts on this diagram · 5 diagrams in section
