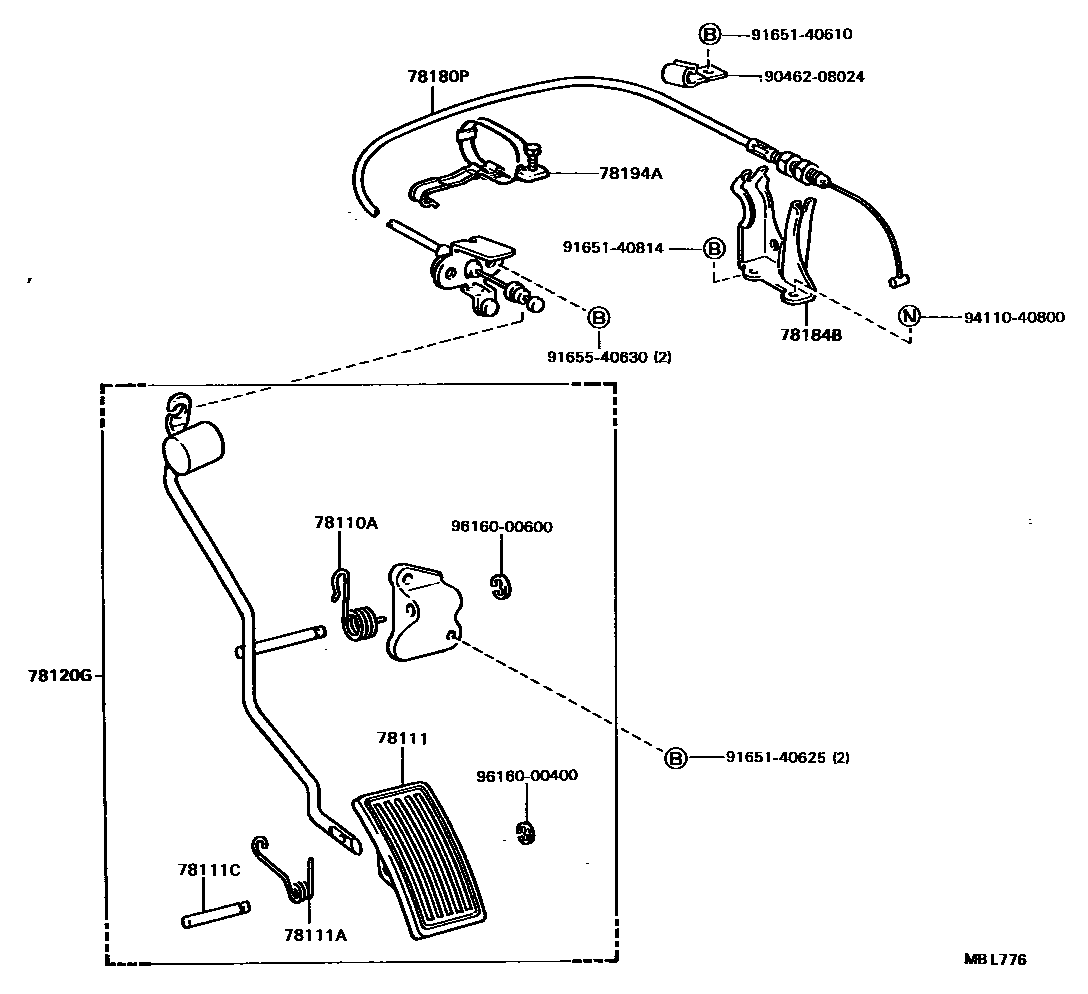

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST162..RHD..4FC198708-198908

main90508-18054iST162..LHD..4FC198708-198908

main90508-26054iST16#..RHD..5F198708-198908

main90508-26062iAT160,ST16#..LHD..5F198708-198908

78111PEDAL, ACCELERATOR

main78111-20030iAT160,ST16#198708-198908

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST162..RHD..4FC198708-198908

main90508-18050iAT160,ST16#..5F;ST162..LHD..4FC198708-198908

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT160,ST16#198708-198908

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20260iST16#..RHD..5F198708-198908

main78120-20270iST162..RHD..4FC198708-198908

main78120-20280iAT160,ST16#..LHD..5F198708-198908

main78120-20290iST162..LHD..4FC198708-198908

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20240iAT160..CBR198708-198908

main78180-20430iST162..RHD..4FC198708-198908

main78180-20470iST162..LHD..4FC198708-198908

main78180-20580iAT160..TWC198708-198908

main78180-20620iST162..RHD..5F198708-198908

main78180-20640iST162..LHD..5F..EUG198708-198908

main78180-20650iST165..RHD198710-198908

main78180-20820iST165..LHD198710-198908

main78180-20890iST162..FRG198708-198908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12160iAT160..CBR198708-198908

main78184-12220iAT160..TWC198708-198908

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-20040iAT160..CBR198708-198908

main78194-20060iST162..LHD..EUG198708-198908

main78194-20070iST162..FRG198708-198908

9046208024

main90462-08024

9165140610

main91651-40610

9165140625

main91651-40625

9165140814

main91651-40814

9165540630

main91655-40630

9411040800

main94110-40800

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 6 diagrams in section
