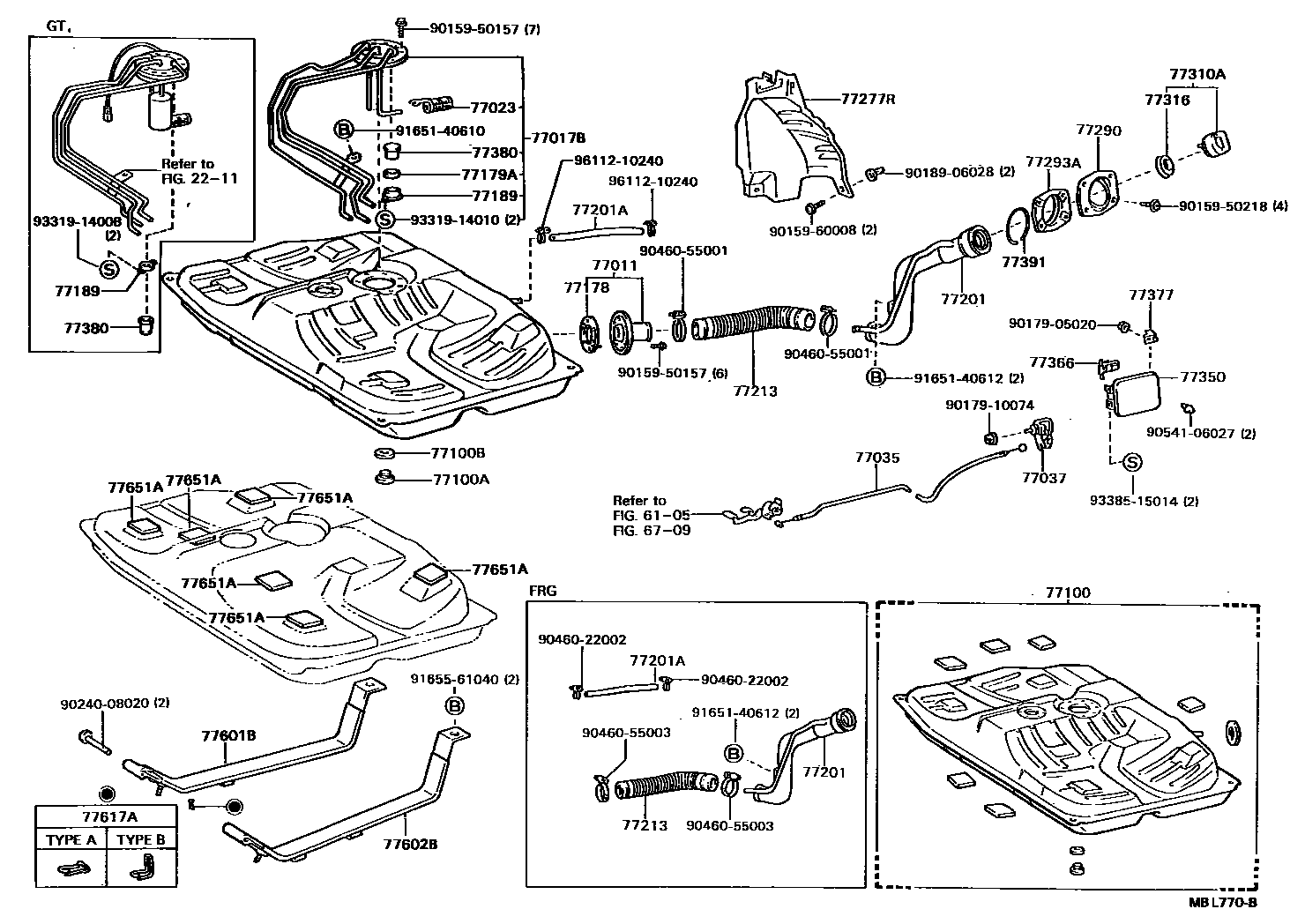

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

2211

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20020iAT160,ST162¥3,450198708-198908

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20130iAT160..CBR198708-198801

main77017-20131iAT160..CBR¥12,200198801-198908

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT160..CBR¥920198708-198908

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20140iAT160,ST16#..LHD¥1,690198708-198908

sub77035-14090¥1,690

main77035-20160iST16#..(CVT,LB)..RHD¥2,360198708-198908

sub77035-20300¥2,440

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iAT160,ST16#¥1,450198708-198908

sub77037-38010¥1,520

77100TANK ASSY, FUEL

main77001-29256iAT160,ST162¥42,700198708-198801

sub77001-29257¥44,200

main77001-29257iAT160,ST162¥44,200198801-198908

main77001-29266iST165¥47,600198710-198908

77100APLUG(FOR FUEL TANK)

main90341-20004iAT160,ST16#¥360198708-198801

77100BGASKET(FOR FUEL TANK)

main90430-20007iAT160,ST16#¥220198708-198801

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iAT160,ST162¥430198708-198908

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20010iAT160..CBR¥620198708-198908

77189RETAINER, FUEL CHECK VALVE

main77189-20010iAT160..CBR¥350198708-198908

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20240iST165¥14,000198710-198908

main77201-20280iAT160,ST162..FRG¥12,700198708-198908

main77201-20290iAT160,ST162..EUG¥12,900198708-198908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13024iAT160,ST162¥640198708-198908

*H,L=240

77213HOSE, FUEL TANK SUB INLET

main77213-20080iAT160,ST162¥4,500198708-198908

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20100iST162..LB..4FC;AT160,ST162..5F¥3,610198708-198908

main77277-20130iST165¥2,060198710-198908

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20060iAT160,ST16#¥1,780198708-198908

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20020iAT160,ST16#¥1,220198708-198908

77310ACAP ASSY, FUEL TANK

main77310-12100iAT160,ST162..EUG¥2,320198708-198908

main77310-16011iAT160,ST16#..FRG¥2,790198708-198908

sub77310-12140¥2,790

77316GASKET, FUEL TANK CAP

main77316-12050iAT160,ST162..EUG¥310198708-198908

main77316-16010iAT160,ST16#..FRG¥660198708-198908

77350LID ASSY, FUEL FILLER OPENING

main77350-20090iAT160,ST16#¥3,590198708-198908

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20010iAT160,ST16#¥450198708-198908

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iAT160,ST16#¥700198708-198908

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAT160,ST16#¥1,240198708-198908

77391RING, FUEL INLET BOX

main77391-16011iAT160,ST16#¥310198708-198811

main77391-32010iAT160,ST16#¥160198811-198908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20080iAT160,ST162¥2,940198708-198908

main77601-20110iST165¥2,500198710-198908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20110iAT160,ST162¥2,940198708-198908

main77602-20130iST165¥2,500198710-198908

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAT160,ST162¥110198708-198908

TYPE B

main90468-14004iAT160,ST162¥80198708-198908

TYPE A

77651ACUSHION, FUEL TANK, NO.1

main77651-20050iAT160,ST162¥330198708-198908

main77651-20060iST165¥390198710-198908

65 X 50

main77652-20090iST165¥1,280198710-198908

130 X 65

9015950157

main90159-50157¥120

9015950218

main90159-50218¥120

9015960008

main90159-60008¥70

9017905020

main90179-05020¥140

9017910074

main90179-10074¥110

9018906028

main90189-06028¥110

9024008020

main90240-08020¥250

9046022002

main90460-22002¥530

9046055001

main90460-55001¥190

9046055003

main90460-55003¥270

9054106027

main90541-06027¥200

9165140610

main91651-40610¥160

9165140612

main91651-40612¥70

9165561040

main91655-61040¥210

9331914008

main93319-14008¥80

9331914010

main93319-14010¥70

9338515014

main93385-15014¥110

9611210240

main96112-10240¥200

49 parts on this diagram · 6 diagrams in section
