REAR MOULDING
75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
SUPER RED 2,3E5
W(POWER+HEATER+COLORED),SUPER RED 2,3E5
GRAY M,168
W(POWER+HEATER+COLORED),GRAY M,168
BLUE MAICA,8E3
W(POWER+HEATER+COLORED),BLUE MAICA,8E3
SUPER WHITE 2,040
W(POWER+HEATER+COLORED),SUPER WHITE 2,040
SWITZERLAND SPEC
SWITZERLAND SPEC
W(SIDE LIGHTING LAMP)
SWITZERLAND SPEC,SUPER RED 2,3E5
W(SIDE LIGHTING LAMP),SUPER RED 2,3E5
SWITZERLAND SPEC,BLUE MAICA,8E3
W(SIDE LIGHTING LAMP),BLUE MAICA,8E3
SWITZERLAND SPEC,SUPER WHITE 2,040
W(SIDE LIGHTING LAMP),SUPER WHITE 2,040
SWITZERLAND SPEC,GRAY M,168
W(SIDE LIGHTING LAMP),GRAY M,168
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75548BFASTENER, BACK WINDOW OUTSIDE MOULDING
75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
75575BMOULDING, BACK WINDOW, OUTSIDE LOWER RH
75576AMOULDING, BACK WINDOW, OUTSIDE LOWER LH
75589AMOULDING, BACK WINDOW OUTSIDE, LOWER CENTER
75791ACLIP, BELT MOULDING SIDE
6727214010DUCT, FRONT DOOR AIR, LH
main67272-14010
9011405045
main90114-05045
9014405045
main90144-05045
9017905095
main90179-05095
9018304027
main90183-04027
9056204137
main90562-04137

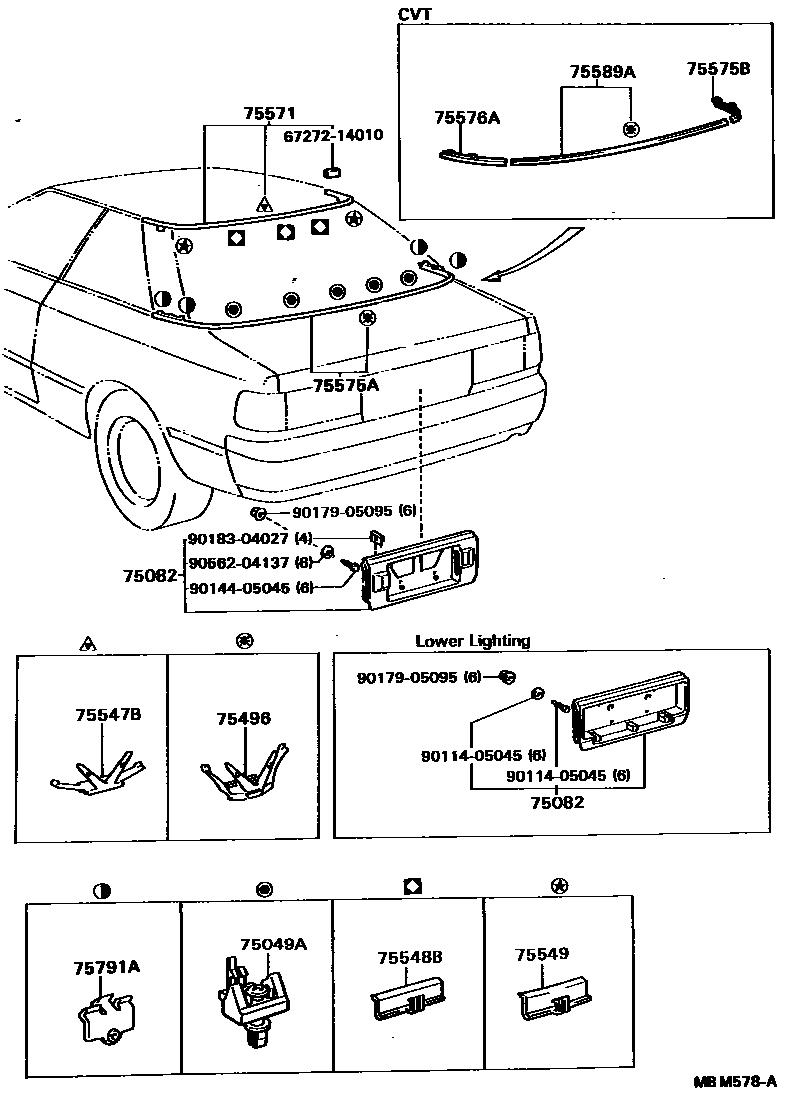

18 parts on this diagram · 2 diagrams in section
