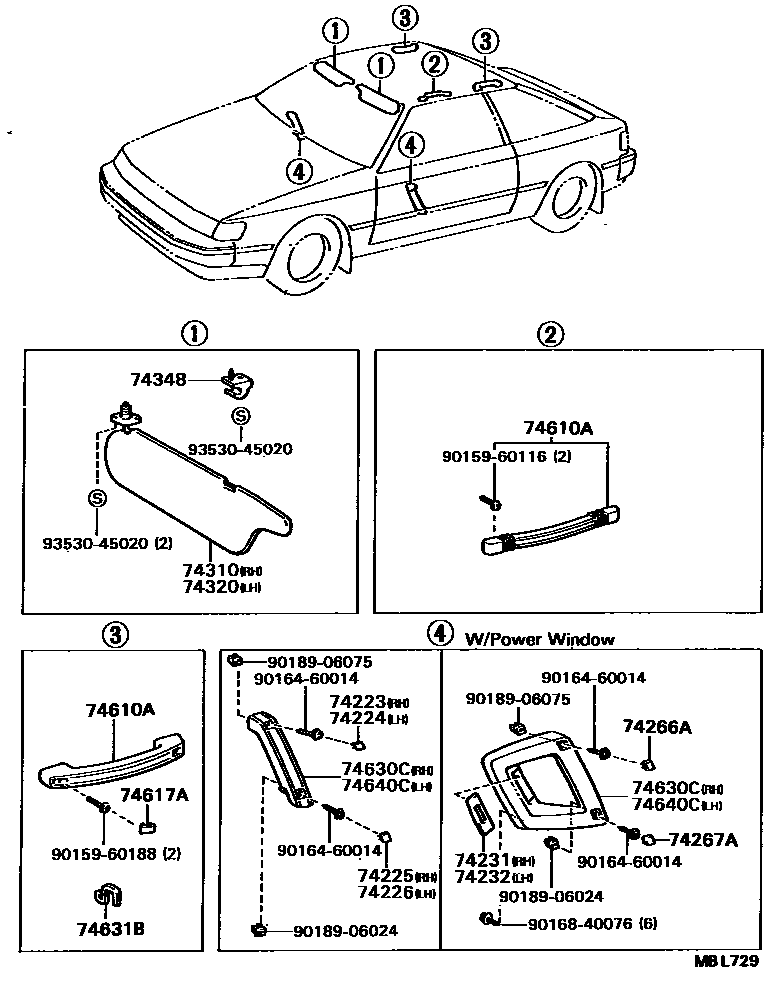

ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

sub74223-20030

main74223-20030-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74223-20030

main74223-20030-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74223-20030

74224CAP, DOOR ARMREST, LH

main74224-20030-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

sub74224-20030

main74224-20030-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74224-20030

main74224-20030-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74224-20030

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

sub74225-20020

main74225-20020-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74225-20020

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

sub74225-20020

main74225-20020-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74225-20020

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20141-01iST162..(CP,LB)..RHD198708-198908

BLACK,TRIM2#

main74231-20141-04iST162..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

main74231-20141-05iST162..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

main74231-20151-01iST162..CVT..LHD198708-198908

BLACK,TRIM2#

main74231-20151-04iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

DEEP BLUE,TRIM8#

main74231-20151-05iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

DARK BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20141-01iST162..(CP,LB)..RHD198708-198908

BLACK,TRIM2#

main74232-20141-04iST162..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

main74232-20141-05iST162..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

main74232-20151-01iST165..LHD;ST162..CVT..LHD198708-198908

BLACK,TRIM2#

main74232-20151-04iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

DEEP BLUE,TRIM8#

main74232-20151-05iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

DARK BEIGE,TRIM4#

74266ACAP, DOOR ARMREST, NO.1

main74266-20060-01iST165;ST162..CVT198708-198908

BLACK,TRIM2#

main74266-20060-04iAT160,ST162..(CP,LB)..TWC198708-198908

DEEP BLUE,TRIM8#

main74266-20060-05iAT160,ST162..(CP,LB)..TWC198708-198908

DARK BEIGE,TRIM4#

74267ACAP, DOOR ARMREST, NO.2

main74267-20040-01iST165;ST162..CVT198708-198908

BLACK,TRIM2#

sub74267-20040

main74267-20040-04iAT160,ST162..(CP,LB)..TWC198708-198908

DEEP BLUE,TRIM8#

sub74267-20040

main74267-20040-05iAT160,ST162..(CP,LB)..TWC198708-198908

DARK BEIGE,TRIM4#

sub74267-20040

74310VISOR ASSY, RH

main74310-20310-03iAT160..CBR198708-198908

SHADOW GRAY,TRIM2#

sub74310-20310

main74310-20310-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

sub74310-20310

main74310-20310-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

sub74310-20310

main74310-20480-01iST162..CVT..RHD198708-198908

BLACK,TRIM2#

main74310-20480-03iST16#..(CP,LB)..RHD198708-198908

SHADOW GRAY,TRIM2#

main74310-20480-04iST16#..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

main74310-20480-05iST16#..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

main74310-20490-01iST162..CVT..LHD198708-198908

BLACK,TRIM2#

main74310-20490-03iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

SHADOW GRAY,TRIM2#

main74310-20490-04iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

DEEP BLUE,TRIM8#

main74310-20490-05iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

DARK BEIGE,TRIM4#

main74310-20520-01iST162..CVT..FRG198802-198908

SWEDEN SPEC,BLACK,TRIM2#

sub74310-20480

sub74310-20520

main74310-20520-03iST16#..(CP,LB)..LHD..FRG198708-198908

SWEDEN SPEC,SHADOW GRAY,TRIM2#

sub74310-20480

sub74310-20520

main74310-20520-04iST16#..(CP,LB)..LHD..FRG198708-198908

SWEDEN SPEC,DEEP BLUE,TRIM8#

sub74310-20480

sub74310-20520

main74310-20520-05iST16#..(CP,LB)..LHD..FRG198708-198908

SWEDEN SPEC,DARK BEIGE,TRIM4#

sub74310-20480

sub74310-20520

74320VISOR ASSY, LH

main74320-20410-03iAT160..CBR198708-198908

SHADOW GRAY,TRIM2#

sub74320-20410

main74320-20410-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

sub74320-20410

main74320-20410-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

sub74320-20410

main74320-20450-01iST162..CVT..RHD198708-198908

BLACK,TRIM2#

main74320-20450-03iST16#..(CP,LB)..RHD198708-198908

SHADOW GRAY,TRIM2#

main74320-20450-04iST16#..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

main74320-20450-05iST16#..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

main74320-20460-01iST162..CVT..LHD198708-198908

BLACK,TRIM2#

main74320-20460-03iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

SHADOW GRAY,TRIM2#

main74320-20460-04iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

DEEP BLUE,TRIM8#

main74320-20460-05iAT160,ST16#..(CP,LB)..LHD..TWC198708-198908

DARK BEIGE,TRIM4#

74348HOLDER, VISOR

main74348-12020-01iST162..CVT198811-198908

BLACK,TRIM2#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-03iAT160,ST16#..CP,LB198811-198908

LIGHT GRAY,TRIM2#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-04iAT160,ST16#..CP,LB198811-198908

LIGHT BLUE,TRIM8#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-25iAT160,ST16#..CP,LB198811-198908

DARK BEIGE,TRIM4#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-20020-01iST162..CVT198708-198811

BLACK,TRIM2#

sub74348-12020

sub74348-20020

main74348-20020-03iAT160,ST16#..CP,LB198708-198811

SHADOW GRAY,TRIM2#

sub74348-12020

sub74348-20020

main74348-20020-04iAT160,ST16#..CP,LB198708-198811

DEEP BLUE,TRIM8#

sub74348-12020

sub74348-20020

main74348-20020-05iAT160,ST16#..CP,LB198708-198811

DARK BEIGE,TRIM4#

sub74348-12020

sub74348-20020

74610AGRIP SUB-ASSY, ASSIST

main74603-16010-04iAT160,ST16#..CP,LB198708-198908

*IPM,DEEP BLUE,TRIM8#,RR

sub74603-16010

sub74610-16010

sub74610-12030

main74603-16010-13iAT160,ST16#..CP,LB198708-198908

*IPM,SHADOW GRAY,TRIM2#,RR

sub74603-16010

sub74610-16010

sub74610-12030

main74603-16010-45iAT160,ST16#..CP,LB198708-198908

*IPM,DARK BEIGE,TRIM4#,RR

sub74603-16010

sub74610-16010

sub74610-12030

main74610-10020-14iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#,RR

sub74610-10020

main74610-10020-20iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#,RR

sub74610-10020

main74610-10020-33iAT160,ST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#,RR

sub74610-10020

main74610-14030-24iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#,FR

sub74610-14030

sub74610-12050

main74610-14030-33iAT160,ST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#,FR

sub74610-14030

sub74610-12050

main74610-14030-45iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#,FR

sub74610-14030

sub74610-12050

74617APLUG, ASSIST GRIP

main74617-14010-10iAT160,ST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#

sub74617-14010

main74617-14010-30iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74617-14010

main74617-14010-34iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74617-14010

main74617-16010-24iAT160,ST16#..CP,LB198708-198908

*IPM,DEEP BLUE,TRIM8#

sub74617-16010

main74617-16010-53iAT160,ST16#..CP,LB198708-198908

*IPM,SHADOW GRAY,TRIM2#

sub74617-16010

main74617-16010-55iAT160,ST16#..CP,LB198708-198908

*IPM,DARK BEIGE,TRIM4#

sub74617-16010

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

main74630-20010-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74630-20010-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

main74630-20021-01iST165198708-198908

W(POWER WINDOW),BLACK,TRIM2#

main74630-20021-04iAT160,ST162..(CP,LB)..TWC198708-198908

W(POWER WINDOW),DEEP BLUE,TRIM8#

main74630-20021-05iAT160,ST162..(CP,LB)..TWC198708-198908

W(POWER WINDOW),DARK BEIGE,TRIM4#

74631BHOOK, COAT

main74631-14010-10iAT160,ST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#

sub74631-14010

sub74631-20040

main74631-14010-34iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74631-14010

sub74631-20040

main74631-14010-45iAT160,ST16#..CP,LB198708-198908

LIGHT BEIGE,TRIM4#

sub74631-14010

sub74631-20040

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

main74640-20010-04iAT160,ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74640-20010-05iAT160,ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

main74640-20021-01iST165;ST162..CVT198708-198908

W(POWER WINDOW),BLACK,TRIM2#

main74640-20021-04iAT160,ST162..(CP,LB)..TWC198708-198908

W(POWER WINDOW),DEEP BLUE,TRIM8#

main74640-20021-05iAT160,ST162..(CP,LB)..TWC198708-198908

W(POWER WINDOW),DARK BEIGE,TRIM4#

9015960116

main90159-60116

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

23 parts on this diagram · 1 diagram in section
