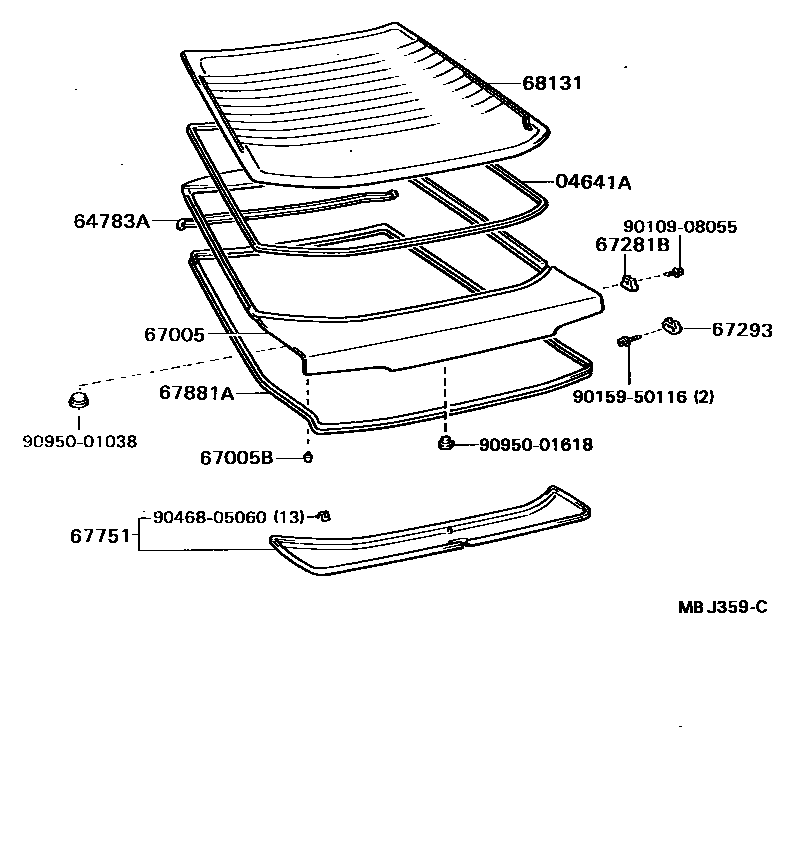

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iAT160,ST16#..LB198708-198908

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-20020iAT160,ST16#..LB198708-198908

67005PANEL SUB-ASSY, BACK DOOR

main67005-20611iAT160..LB198708-198908

W(RR WIPER)

main67005-20621iAT160,ST162..LB198708-198908

main67005-2B011iST165198708-198908

W(REAR SPOILER & REAR WIPER)

sub67005-20661

main67005-2B021iST162..LB198708-198908

W(RR WIPER)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041iAT160,ST16#..LB198708-198908

67281BSTOPPER, BACK DOOR, LOWER

main67281-20020iAT160,ST16#..LB198708-198908

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020iAT160,ST16#..LB198708-198908

67751BOARD, BACK DOOR TRIM

main64781-20040-01iAT160,ST16#..LB198708-198908

BLACK,TRIM2#

main64781-20040-04iAT160,ST16#..LB198708-198908

DEEP BLUE,TRIM8#

main64781-20040-05iAT160,ST16#..LB198708-198908

DARK BEIGE,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-20050iAT160,ST16#..LB198708-198908

68131GLASS, BACK DOOR

main68131-20150iAT160,ST16#..LB198708-198908

*EHTT,T=4.0

main68131-20160iAT160,ST16#..LB..LHD198708-198908

*EHTT,T=4.0,COLD SPEC

9010908055

main90109-08055

9015950116

main90159-50116

9046805060

main90468-05060

9095001038

main90950-01038

9095001618

main90950-01618

14 parts on this diagram · 1 diagram in section
